Teledyne PCB RF Relay DPDT 5V DC Coil 450mW 50Ω Coil Resistance RF300-5

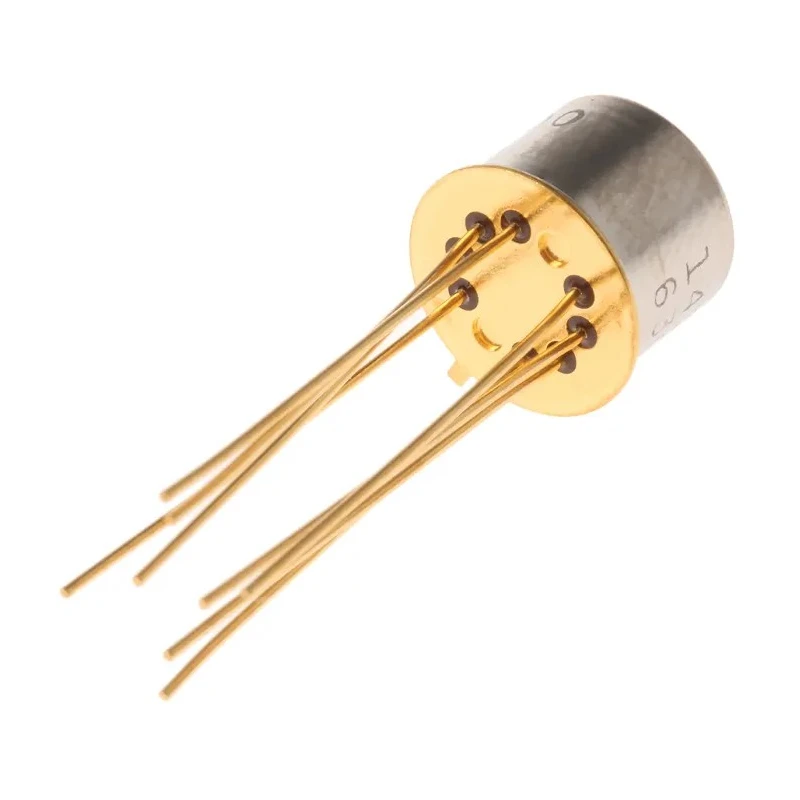

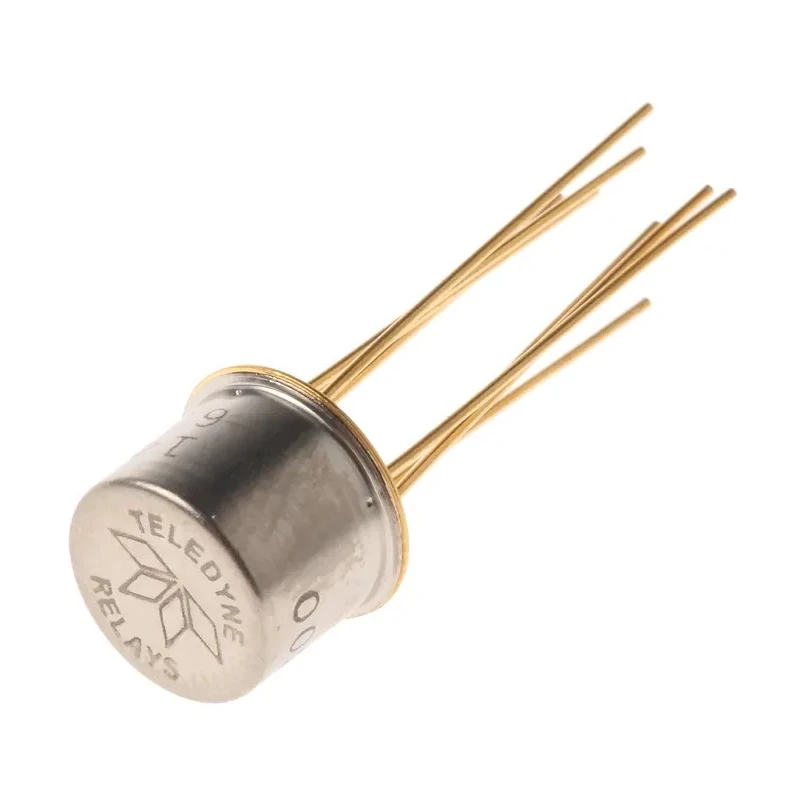

Teledyne RF300-5 PCB RF Relay is a dual-pole double-throw (DPDT) relay designed for PCB mounting with a 5V DC coil and a coil power of 450mW. This ultra-miniature relay features a coil resistance of 50 ohms and gold-plated metal alloy contacts that deliver excellent signal integrity and high reliability.

The relay measures 9.53mm in length and 7.37mm in height, making it compact and easy to integrate on printed circuit boards. It operates reliably across a wide temperature range from -55°C to 85°C, making it suitable for diverse industrial environments.

Its hermetically sealed design provides outstanding resistance to shock and vibration, while the metal enclosure offers effective electromagnetic interference (EMI) shielding with high resistance to electrostatic discharge (ESD). The unique ground shield isolates and shields each lead, ensuring exceptional contact-to-contact and pole-to-pole isolation critical for high-frequency operations.

This relay supports signal repeatability up to 10 Gbps, making it ideal for RF attenuator switching and wireless local area network (WLAN) applications. It complies with RoHS standards ensuring environmental safety, and certifications include ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

The coil resistance measures precisely 50 ohms for efficient operation. Gold-plated contacts ensure high signal integrity and durability. Designed for PCB mounting with through-hole terminal type. Operates reliably within -55°C to 85°C temperature range.

Compact dimensions of 9.53mm length and 7.37mm height allow easy PCB integration. Hermetically sealed to provide excellent resistance to shock and vibration. Features a metal enclosure for EMI shielding and high ESD resistance.

Unique ground shield design enhances contact-to-contact and pole-to-pole isolation. Suitable for high-frequency signal repeatability up to 10 Gbps. Ideal for applications in RF attenuator switching and wireless LAN.

This Teledyne RF300-5 PCB RF Relay is a new product originating from the United States. It suits industrial electronics, telecommunications, automation, and electrical applications requiring reliable, compact relay devices. Browse more from the Electronics & Electricals category for quality relays and signal conditioning products on EnvMart.
