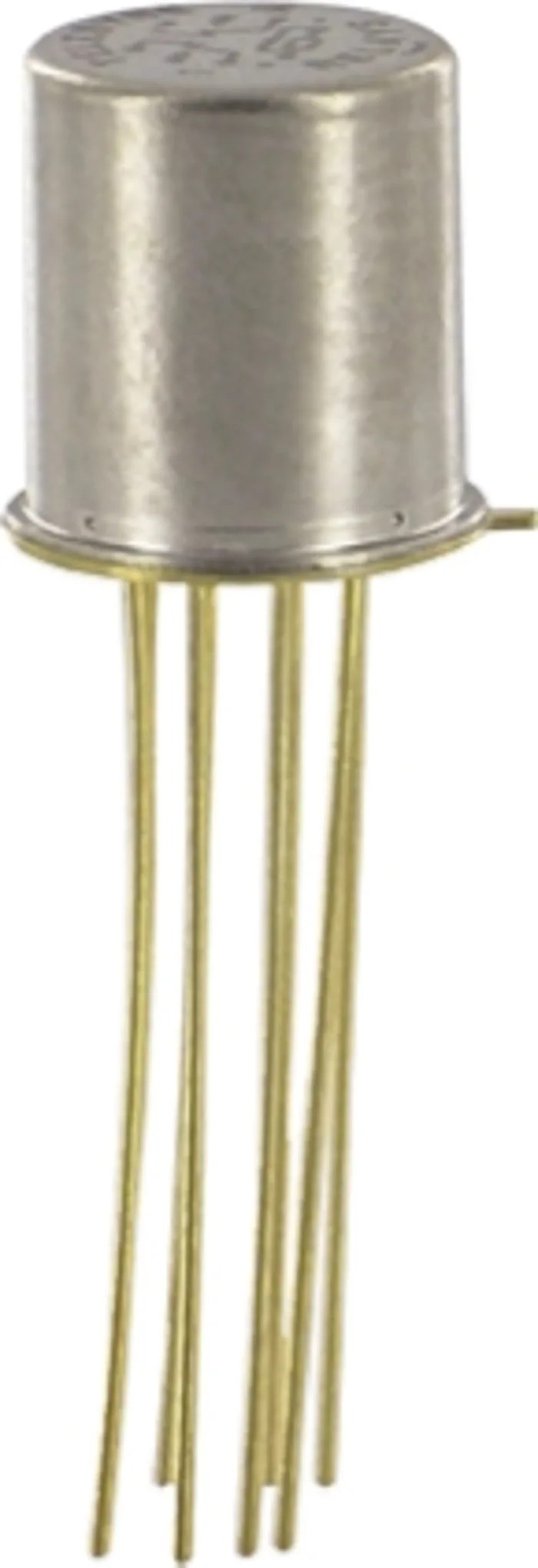

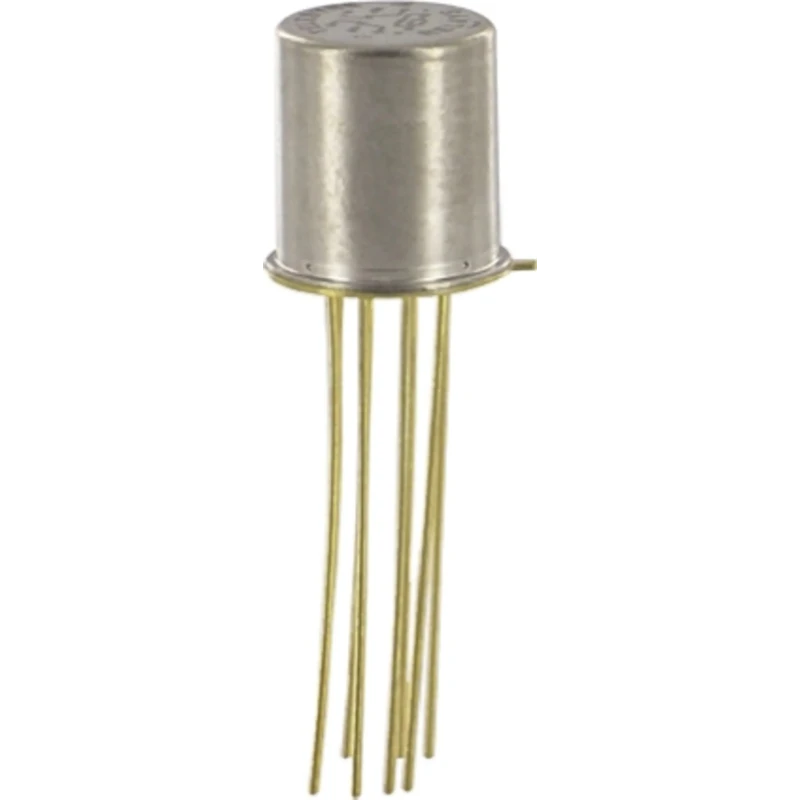

Teledyne TO-5 Sub-Miniature PCB RF Relay 12V DC Coil 200mW Coil Power DPDT Gold Plated Contacts 732D-12

Teledyne 732D-12 PCB RF Relay is a TO-5 sub-miniature relay designed for low level RF switching applications, featuring a 12V DC coil and double-pole double-throw (DPDT) contact configuration. It delivers reliable performance with a coil power of only 200mW, making it suitable where close PCB spacing and low power consumption are essential.

The relay incorporates gold plated contacts that provide low contact resistance of 150mΩ, allowing current capacity of up to 1A. The coil resistance is specified at 850Ω, which contributes to its low power dissipation.

With hermetic sealing, this relay exhibits excellent resistance against shock, vibration, and environmental extremes, ensuring longevity and stable operation. The physical dimensions of 9.76mm length and height make it suitable for compact electronic assemblies.

Engineered for high frequency RF performance well into the UHF spectrum, the 732D series includes an internal silicon diode for coil transient suppression, enhancing durability in switching applications such as transmit/receive switching in handheld radio transceivers.

Its through hole terminal type and PCB mount design enable secure and reliable integration into electronic circuits. Operating temperature ranges from -55°C to 85°C, catering to harsh industrial and communication environments.

Operates with a coil resistance of 850Ω for efficient energy use. Gold plated contacts ensure excellent conductivity and corrosion resistance. Capable of handling contact currents up to 1A with low contact resistance of 150mΩ.

Designed for PCB mounting via through hole terminals for secure installation. Works reliably between -55°C to 85°C operating temperature range. Has a compact form factor with dimensions 9.76mm in length and height. Low coil power dissipation of 200mW minimizes heat generation.

Hermetically sealed construction offers high resistance to shock and vibration. Ideal for use in RF switching applications including transmit/receive switching in handheld radio transceivers.

This product is suitable for industrial, communications, and electronic applications requiring high reliability RF relay switching. Explore similar HF & RF relays and related components at EnvMart for comprehensive solutions.
