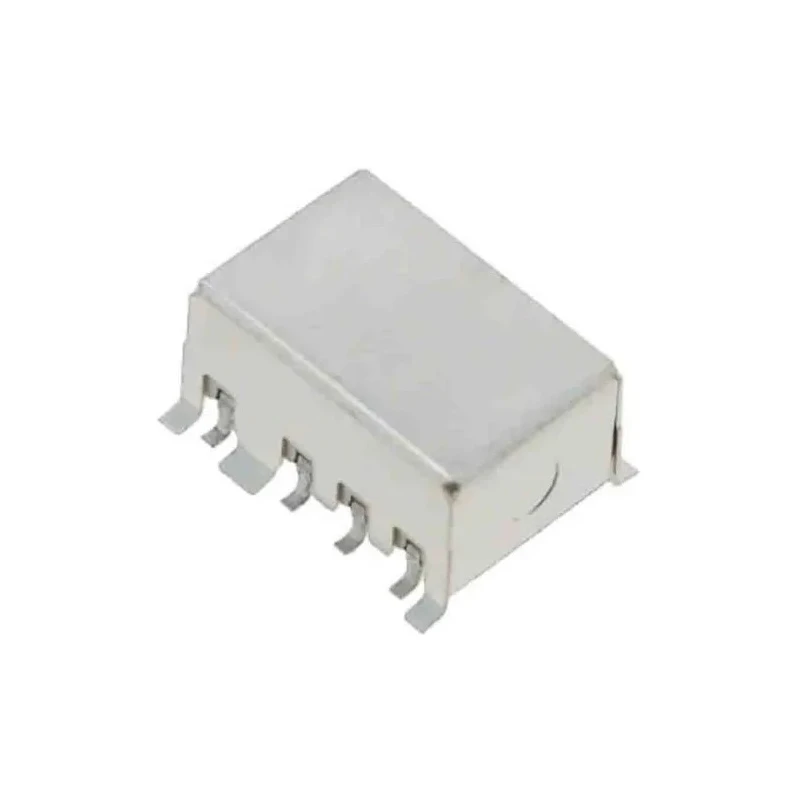

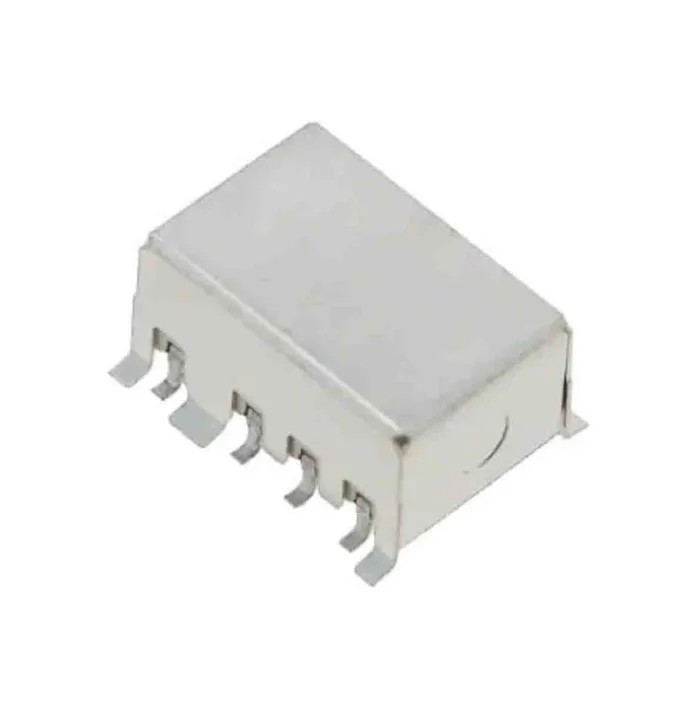

Omron Surface High Frequency Relay 5V DC Coil 3 GHz Max Coil Frequency DPDT G6K-2F-RF-T DC5
Specifications
| Country of Origin | Japan |
|---|---|
| Frequency | Relay, 5V dc Coil, 3 GHz Max |
| Brand | Omron |
| Height | 8.6mm |
| Length | 10.7mm |
| Model | G6K-2F-RF-T DC5 |
| Mount Type | Surface |
| Isolation | 18dB |
| Series | G6K-2F-RF |
| Maximum Operating Temperature | 70°C |
| Coil Type | Latching |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 237Ω |
| Contact Current | 1A |
| Insertion Loss | 0.6dB |
| Maximum Coil Frequency | 3GHz |
Key Features
- Designed for superior high frequency performance with a maximum coil frequency of 3 GHz.
- Incorporates DPDT contacts configured for reliable switching and signal integrity.
- Features a coil resistance of 237 ohms for efficient operation.
- Low contact resistance of 100 milliohms minimizes signal loss.
- Insertion loss is low at 0.6 dB, ensuring minimal signal attenuation.
- Isolation rating of 18 dB provides excellent signal separation.
- Surface mount type suitable for compact PCB layouts.
- Contact current rating is 1 ampere suitable for signal switching applications.
Product Description
Omron G6K-2F-RF-T DC5 Surface High Frequency Relay is designed for precision switching in high-frequency applications with a 5V DC coil voltage and a maximum coil frequency of 3 GHz. This DPDT relay is surface-mount type, supporting superior electrical performance and low signal loss, making it ideal for communications equipment, broadcasting, and audio-visual devices.
The relay features a coil resistance of 237 ohms and a low contact resistance of 100 milliohms that ensures minimal signal degradation. Insertion loss is rated at only 0.6 dB and isolation at 18 dB, maintaining high signal quality up to 3 GHz frequencies.
The DPDT contact configuration supports reliable switching with a contact current capability of 1 A. The latching coil type allows for consistent electrical endurance, with the relay rated for 100,000 operations under standard conditions.
Operating temperature ranges from -40°C to 70°C, with RoHS compliance ensuring it meets environmental standards. The compact dimensions of 10.7 mm length and 8.6 mm height make it suitable for dense surface-mount PCB assemblies.
This high frequency relay from Omron is manufactured in Japan, guaranteeing high quality and reliability for industrial and commercial applications such as telecommunications, broadcasting, industrial controls, and instrumentation systems.
Designed for high frequency signal switching with minimal signal loss. Compact surface mount relay with excellent electrical endurance. Suitable for communication and audio-visual equipment applications. Complies with RoHS environmental standards.
Manufactured in Japan ensuring superior build quality. Explore more high quality electrical relay products in the HF & RF Relays category on EnvMart.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum coil frequency of the Omron G6K-2F-RF-T DC5 relay is 3 GHz.
This relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for reliable switching.
The coil resistance of this relay is 237 ohms, which contributes to its efficient operation.
The contact current rating for the Omron G6K-2F-RF-T DC5 is 1 ampere, suitable for signal switching applications.
This relay has a length of 10.7 mm and a height of 8.6 mm, making it suitable for compact PCB layouts.
The insertion loss of the G6K-2F-RF-T DC5 relay is rated at 0.6 dB, ensuring minimal signal attenuation.
The isolation rating for this model is 18 dB, providing excellent signal separation.
The operating temperature range for the Omron G6K-2F-RF-T DC5 is from -40°C to 70°C.
Yes, the Omron G6K-2F-RF-T DC5 relay is RoHS compliant, meeting environmental standards.
This model utilizes a surface mount type, making it suitable for dense PCB assemblies.
The G6K-2F-RF-T DC5 relay is suitable for communications equipment, broadcasting, and audio-visual devices.
This relay is manufactured in Japan, ensuring high quality and reliability.
