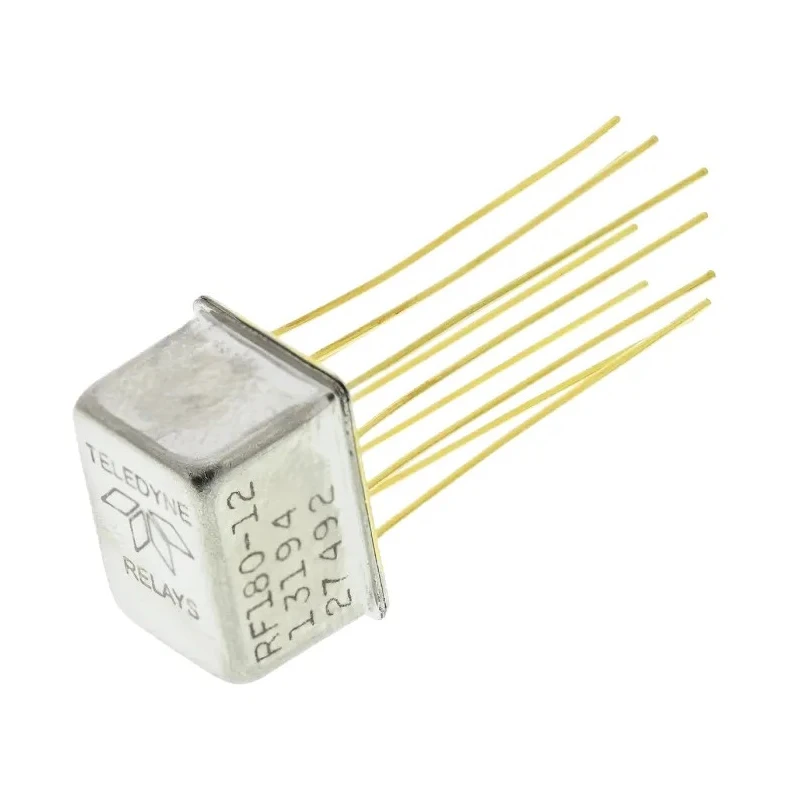

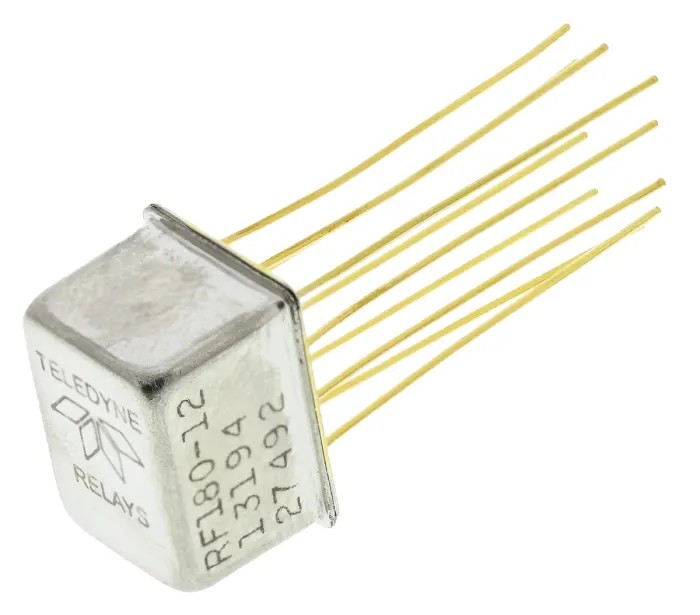

Teledyne PCB RF Relay, 12V DC Coil, 6 GHz Maximum Coil Frequency, DPDT Configuration RF180-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 7.62mm |
| Length | 8.51mm |
| Model | RF180-12 |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RF180 |
| Maximum Operating Temperature | 85°C |
| Coil Type | Latching |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 500Ω |
| Coil Power | 290mW |
| Maximum Coil Frequency | 6GHz |
Key Features
- Features a double pole double throw (DPDT) contact configuration for flexible circuit control.
- Incorporates a magnetic latching coil requiring no continuous power to maintain state.
- Gold plated contacts ensure reliable DC and RF signal integrity with low insertion loss.
- Operates across an extended temperature range from -55°C to 85°C.
- Constructed with metal enclosure providing electromagnetic interference (EMI) shielding and electrostatic discharge (ESD) resistance.
- Designed for PCB mounting with through-hole terminals for sturdy installation.
- Coil resistance of 500 ohms and coil power consumption of 290 milliwatts offer efficient operation.
- Suitable for automated test equipment, RF attenuators, RF switch matrices, and spacecraft systems.
Product Description
Teledyne RF180-12 PCB RF Relay is an ultra-miniature, magnetic latching relay engineered for precise and reliable RF signal switching. It operates with a 12V DC coil voltage and supports maximum coil frequencies up to 6 GHz, making it ideal for applications within the UHF spectrum and beyond into the S-band.
This relay features a double pole double throw (DPDT) contact configuration with gold-plated contacts providing stable and low-resistance connections essential for both DC and high-frequency RF signals. Its hermetically sealed metal enclosure ensures excellent EMI shielding and high resistance to electrostatic discharge (ESD), conforming to standards such as RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007.
The latching coil design allows operation with short duration pulses, eliminating the need for continuous coil power to hold the relay state. A unique ground shield isolates and shields each lead, enhancing contact-to-contact and pole-to-pole isolation for superior high-frequency performance and repeatability.
With a compact size of 8.51mm by 11.05mm by 7.62mm and a coil resistance of 500 ohms consuming only 290 mW, this relay is robust against shock and vibration, suitable for demanding industrial environments. The operating temperature range of -55°C to 85°C ensures performance reliability across extreme conditions.
Common applications include automated test equipment, RF attenuators, RF switch matrices, and spacecraft electronics, where high fidelity and reliability of RF signal switching are critical.
Features a DPDT contact configuration with magnetic latching coil for power efficiency. Gold-plated contacts optimize signal switching performance and durability. Compact dimensions support space-efficient PCB integration.
Metal housing provides EMI shielding and ESD resistance. Meets relevant industry standards for safety and performance. Wide operating temperature range enables use in harsh environments. Designed for automated test equipment and aerospace applications.
Explore further Teledyne HF & RF Relays in the Electronics & Electricals category on EnvMart for high-performance RF relay solutions.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne RF180-12 relay supports a maximum coil frequency of 6 GHz, making it suitable for high-frequency RF applications.
This model features a double pole double throw (DPDT) contact configuration, allowing for flexible circuit control.
The relay operates within an extended temperature range of -55°C to 85°C, ensuring reliability in extreme conditions.
The RF180-12 has a coil resistance of 500 ohms and a coil power consumption of 290 milliwatts, allowing for efficient operation.
This relay is designed for PCB mounting and features through-hole terminals for sturdy installation.
The contacts of the RF180-12 relay are gold plated, ensuring reliable DC and RF signal integrity with low insertion loss.
The relay complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards, ensuring safety and performance.
This relay has compact dimensions of 8.51 mm in length, 11.05 mm in width, and 7.62 mm in height.
Common applications for this relay include automated test equipment, RF attenuators, RF switch matrices, and spacecraft systems.
This model utilizes a magnetic latching coil, which does not require continuous power to maintain its state.
The relay features a hermetically sealed metal enclosure that provides excellent EMI shielding and high resistance to electrostatic discharge (ESD).
The contact resistance of this relay is 150 milliohms, ensuring stable and low-resistance connections for signal switching.
