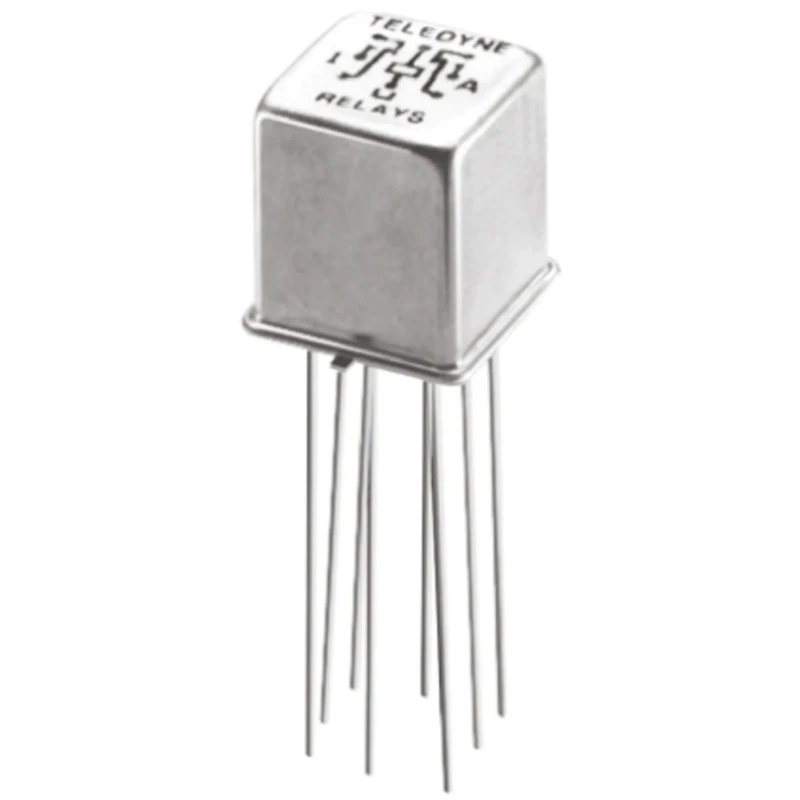

Teledyne PCB RF Relay 5V DC Coil 3 GHz Max Coil Frequency DPDT RF103-5

Teledyne RF103-5 PCB RF Relay is a hermetically sealed, ultra-miniature relay with a 5V DC coil voltage and a maximum coil frequency of 3 GHz. Featuring a DPDT (Double Pole Double Throw) contact configuration, it is designed for PCB through-hole mounting with precise dimensions of 8.51 mm length and 10.03 mm height. Its gold-plated contacts offer excellent conductivity and longevity, making it ideal for demanding industrial and electronic applications.

This relay consumes only 250 mW of coil power and operates reliably over a temperature range from -55°C to 85°C. The metal enclosure provides robust EMI shielding and strong resistance to electrostatic discharge (ESD), which enhances reliability in harsh environments.

The RF103-5 relay is engineered for high isolation between control and signal paths, and its uni-frame design ensures magnetic efficiency and mechanical rigidity. It is especially suited for use in RF attenuator switching in Test & Measurement instruments, bypass and combiner switching in GSM applications, and wireless LAN environments.

These hermetically sealed relays are known for excellent shock and vibration resistance, high reliability, and stable performance under environmental extremes. The through-hole mount design and gold-plated contacts make this relay an excellent choice for both industrial and laboratory use.

The relay operates with a 5V DC coil voltage and has a coil resistance of 100 ohms. Featuring gold-plated contacts to ensure excellent conductivity and resistance to corrosion. DPDT contact configuration providing versatile and reliable switching capabilities.

Designed for PCB through-hole mounting with exacting dimensions of 8.51 mm length and 10.03 mm height. Low coil power consumption of 250 mW for efficient operation. Operating temperature range from -55°C to 85°C suitable for industrial environments.

Hermetically sealed with metal enclosure for EMI and ESD protection. Offers high isolation between control and signal circuits ensuring signal integrity. Uni-frame design for improved magnetic efficiency and mechanical durability.

Choose the Teledyne RF103-5 PCB RF Relay for reliable high-frequency switching needs in electronics, industrial automation, telecommunications, and test systems. Explore more HF & RF relays in the Electronics & Electricals category at EnvMart.
