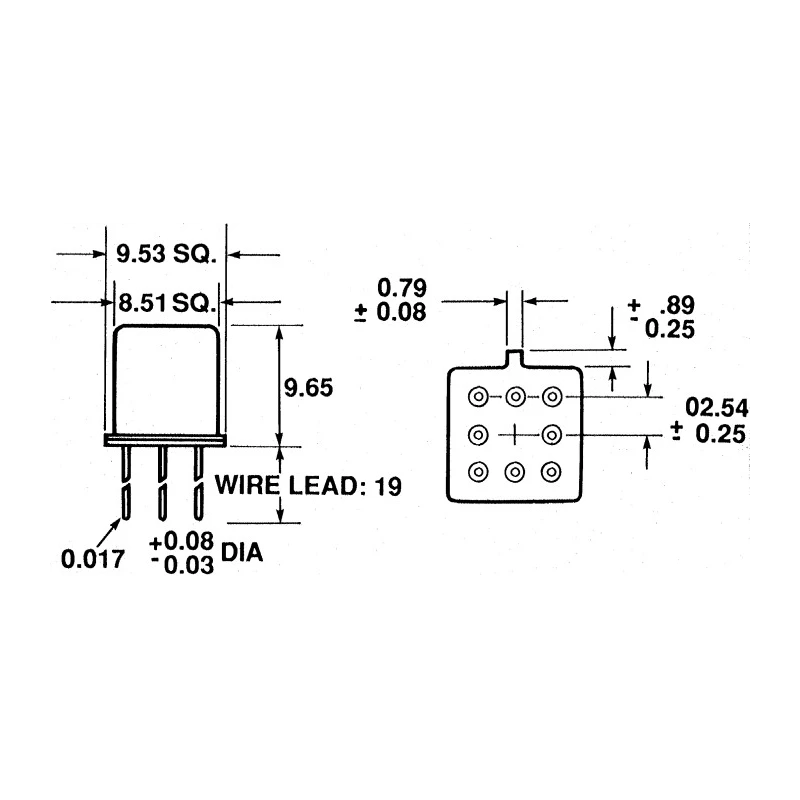

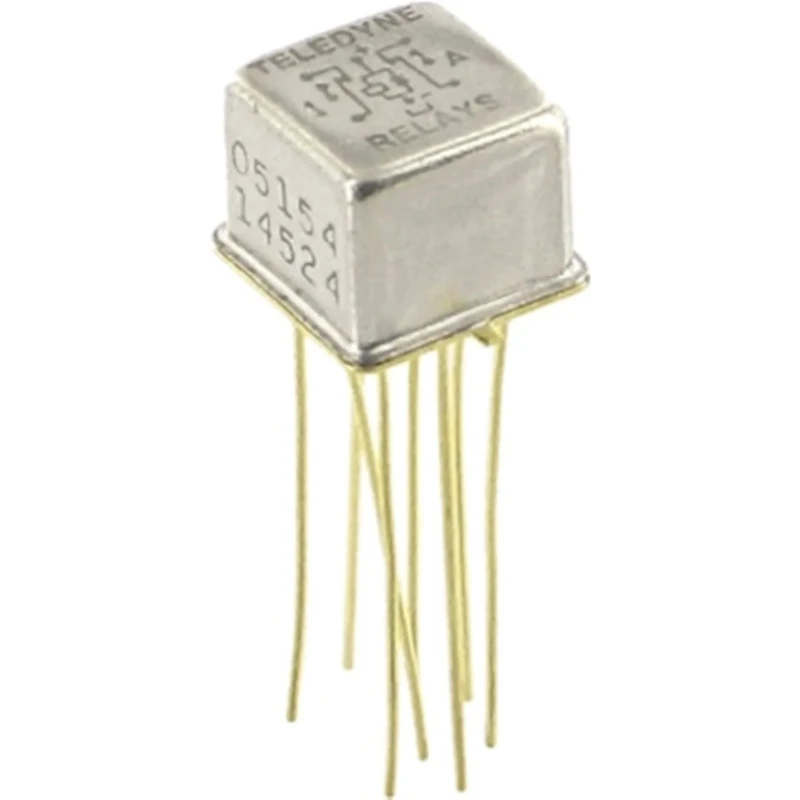

Teledyne PCB RF Relay, 12V Coil, DPDT 172D-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 7.11mm |
| Length | 8.51mm |
| Model | 172D-12 |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | 172 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Contact Resistance | 150mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Power | 360mW |
| Contact Current | 1A |
| Teledyne Through Hole RF Relay, 12V dc Coil, DPDTBrand | Teledyne |
Key Features
- Operates reliably from dc to 2GHz frequency range.
- Gold plated contacts ensure low contact resistance and durability.
- Through-hole terminal type suitable for PCB mounting.
- Coil resistance of 400 ohms and coil power of 360mW provide efficient operation.
- Designed for environmental extremes with operating temperature range from -55°C to 85°C.
- Low insertion loss and inter-contact capacitance of 0.4pF improve signal integrity.
- Compact size with length 8.51 mm and height 7.11 mm fits tight PCB layouts.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Teledyne 172D-12 PCB RF Relay is a high-quality, hermetically sealed DPDT relay featuring a 12V coil and ultra-miniature design for PCB mounting. It offers exceptional switching performance from dc to 2GHz, making it ideal for RF applications.
The relay features gold plated contacts to minimize contact resistance and enhance durability, with a coil resistance of 400 ohms and coil power consumption of only 360mW. Its through-hole terminal type and low profile height of 7.11 mm enable compact installation in dense PCB layouts.
Designed to withstand harsh environments, this relay operates reliably within a wide temperature range of -55°C to 85°C. Its low insertion loss and minimal inter-contact capacitance of 0.4pF ensure high signal integrity for advanced telecommunication, test instrumentation, and mobile communication applications.
Compliant with RoHS environmental standards, the 172D-12 series relay supports telecommunications, attenuators, and various data switching functions. The ultra-miniature form factor with a length of 8.51 mm and PCB mount suitability allow integration in space-constrained designs.
Hermetically sealed ultra-miniature relay. Gold plated contacts for excellent conductivity. DPDT contact configuration for versatile switching. Low inter-contact capacitance and insertion loss enhance signal quality. Wide operating temperature range from -55°C to 85°C.
Designed for demanding RF and data switching applications. Through-hole PCB mount terminal type. RoHS compliant for environmental safety.
This relay is perfect for industrial, laboratory, telecommunications, and manufacturing applications requiring reliable RF switching. Explore more HF & RF relays in the Electronics & Electricals category on EnvMart.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably from DC up to 2GHz frequency range, making it suitable for RF applications.
The relay features a 12V coil with a coil power consumption of 360mW, ensuring efficient operation.
It has a compact size with a length of 8.51 mm and a height of 7.11 mm, allowing for tight PCB layouts.
The 172D-12 features a DPDT (Double Pole Double Throw) contact configuration for versatile switching applications.
It is designed to operate within a wide temperature range from -55°C to 85°C, suitable for harsh environments.
This model is designed for PCB mounting with a through-hole terminal type, facilitating easy installation.
The contact resistance is specified at 150mΩ, which contributes to its low insertion loss.
The contacts are made of gold plated material, which helps minimize contact resistance and enhance durability.
This relay is compliant with RoHS standards, ensuring environmental safety in its use.
The inter-contact capacitance is 0.4pF, which helps improve signal integrity during operation.
The maximum contact current rating is 1A, making it suitable for various applications.
It is designed for telecommunications, test instrumentation, and mobile communication applications requiring reliable RF switching.
