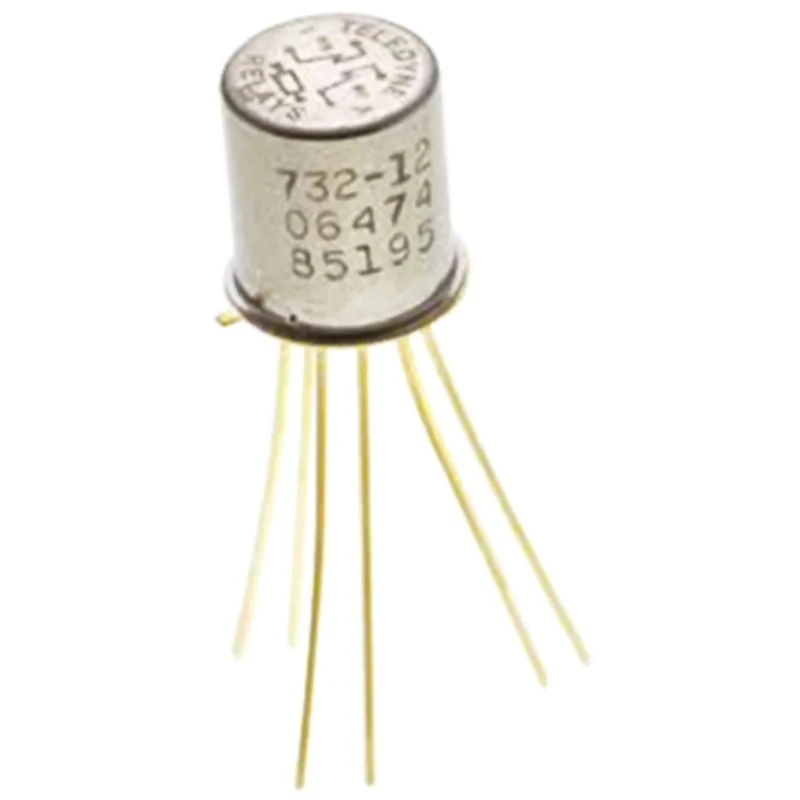

Teledyne PCB RF Relay 12V DC Coil, DPDT, 1A Contact Current, Gold Plated Contacts 732-12

Teledyne 732-12 PCB RF Relay is an ultra-miniature dual-pole double-throw (DPDT) relay designed specifically for PCB mounting in high-frequency RF applications up to 1GHz. It operates with a 12V DC coil voltage and consumes a low coil power of 200mW, making it energy-efficient and optimized for compact electronic assemblies.

This relay features gold-plated contacts ensuring excellent conductivity and reliable switching with a contact current rating of 1A. Its hermetically sealed construction protects against environmental extremes, providing robustness against shock, vibration, and contamination for long-term durability.

With compact dimensions of 9.76mm by 9.76mm, the 732-12 relay is ideal for applications that require close spacing on PCBs. Its low insertion loss minimizes signal degradation, maintaining signal integrity, while the uniframe design optimizes magnetic efficiency and mechanical rigidity.

The operating temperature range of -55°C to 85°C allows the relay to perform reliably under diverse environmental conditions common in industrial, communications, and aerospace sectors. The relay's unique construction and manufacturing ensure consistently high reliability, suitable for critical RF switching tasks such as in handheld radio transceivers.

12V DC coil voltage with 200mW coil power for efficient actuation. 850Ω coil resistance optimized for minimal current draw. DPDT contact configuration with gold-plated contacts rated for 1A. Hermetically sealed body for protection against harsh environments.

Operates reliably across -55°C to 85°C temperature range. Compact size enabling dense PCB layouts. Low insertion loss with 0.4pF capacitance to preserve signal quality. Manufactured in the United States to stringent quality standards.

This relay is well-suited for use in electronics manufacturing, communications equipment, industrial control systems, and other applications requiring reliable RF signal switching with minimal space and power footprint. Environmentally tough and designed for high-frequency operations, the Teledyne 732-12 is a premium choice in its class.
