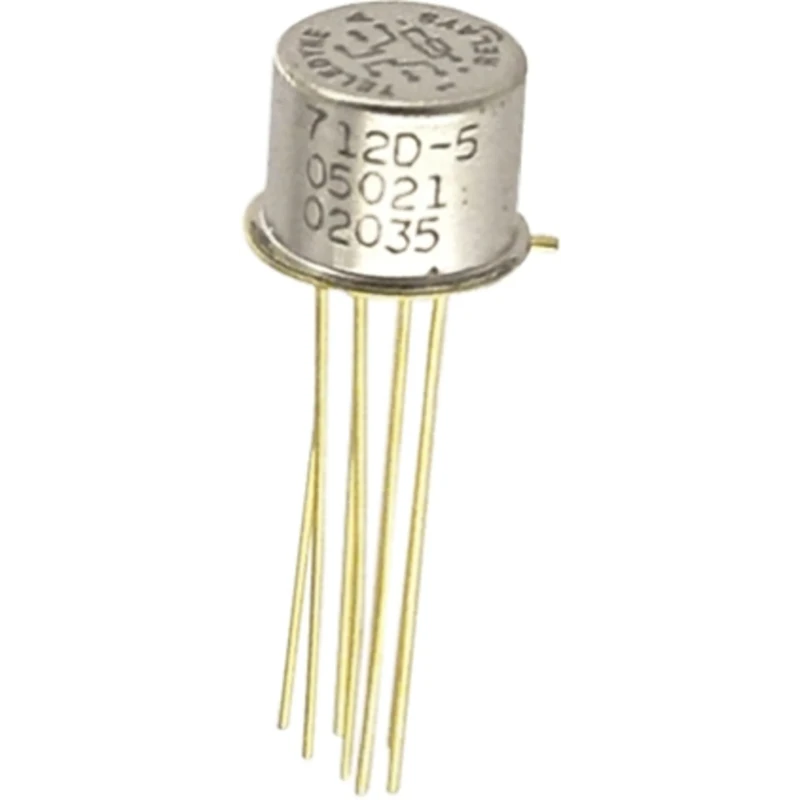

Teledyne PCB RF Relay, 5V Coil, DPDT, Gold Plated Contacts, 712D-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 6.99mm |
| Length | 6.99mm |
| Model | 712D-5 |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | 712 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Through Hole |
| Contact Resistance | 150mΩ |
| Coil Resistance | 50Ω |
| Coil Power | 450mW |
| Contact Current | 1A |
Key Features
- Features gold plated contacts for enhanced conductivity and corrosion resistance.
- Offers low coil power dissipation of 450mW for energy efficient operation.
- Hermetically sealed to ensure reliability under adverse environmental conditions.
- Capable of switching up to 1A contact current with low contact resistance of 150mΩ.
- Designed for PCB mounting with through hole terminal type and ultra-compact dimensions of 6.99mm length and height.
- Operates reliably over a wide temperature range from -55°C to 85°C.
- Gold plated contact material ensures low insertion loss and minimal contact resistance.
- Ultra-miniature TO-5 relay package suitable for HF and RF frequency applications up to 1 GHz.
Product Description
Teledyne 712D-5 PCB RF Relay is a highly reliable TO-5 package relay designed for HF and RF applications requiring low-level switching up to 1 Amp current. This DPDT relay features a 5V coil voltage with 450mW coil power, providing energy efficient switching in ultra-compact dimensions measuring 6.99mm in length and height.
The relay is hermetically sealed, ensuring protection against environmental extremes, shock, and vibration, making it suitable for demanding industrial and communication environments.
Gold plated contacts provide exceptional conductivity and corrosion resistance, with low contact resistance of 150mΩ and low insertion loss facilitating RF switching up to frequencies well into the UHF spectrum.
Internal silicon diode coil transient suppression enhances durability and performance.
This relay is designed for PCB mounting with through hole terminals, enabling easy integration into electronic circuits, especially in RF transceivers and similar industrial and laboratory devices.
Gold plated contacts for superior reliability. Hermetically sealed with ultra-miniature TO-5 form factor. Low coil power consumption of 450mW. Wide operational temperature range from -55°C to 85°C. DPDT contact configuration for versatile switching applications.
Internal diode for coil transient suppression. Compact size suitable for close PCB spacing. High magnetic efficiency and mechanical rigidity from Uni-frame design. Excellent RF performance up to 1 GHz frequency. Reliable switching for industrial, laboratory, construction, and wireless communications applications.
This Teledyne 712D-5 relay is ideal for electronic, industrial, and communication equipment applications where small size, reliability, and performance at high frequencies are critical.
Explore more products in the HF & RF Relays category at EnvMart for comprehensive solutions tailored to your industry needs.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne 712D-5 relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
This model operates with a 5V coil voltage and has a coil power consumption of 450mW, making it energy efficient.
The Teledyne 712D-5 relay is capable of switching up to 1A contact current.
This relay has ultra-compact dimensions of 6.99mm in both length and height, suitable for close PCB spacing.
The contact resistance of the Teledyne 712D-5 relay is 150mΩ, ensuring low insertion loss.
This relay operates reliably over a wide temperature range from -55°C to 85°C.
The Teledyne 712D-5 relay is designed for PCB mounting with through hole terminals, allowing for easy integration into electronic circuits.
This relay features gold plated contacts, which enhance conductivity and corrosion resistance.
Yes, the Teledyne 712D-5 relay is hermetically sealed to ensure reliability under adverse environmental conditions.
The coil resistance of the Teledyne 712D-5 relay is 50Ω.
Yes, it includes an internal silicon diode for coil transient suppression, enhancing durability and performance.
This relay is suitable for industrial, laboratory, construction, and wireless communications applications, particularly in RF transceivers and similar devices.
