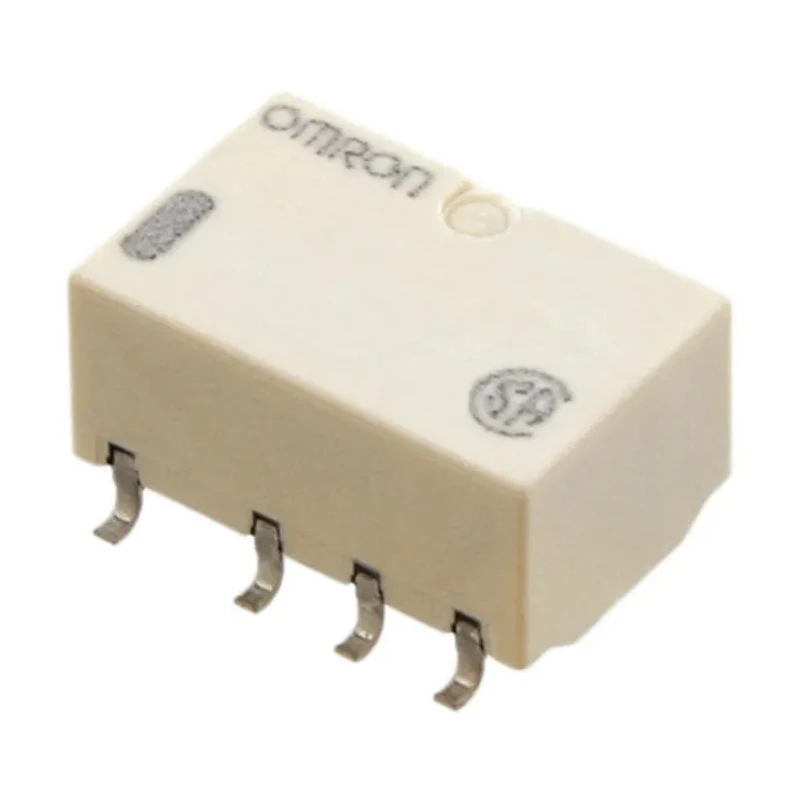

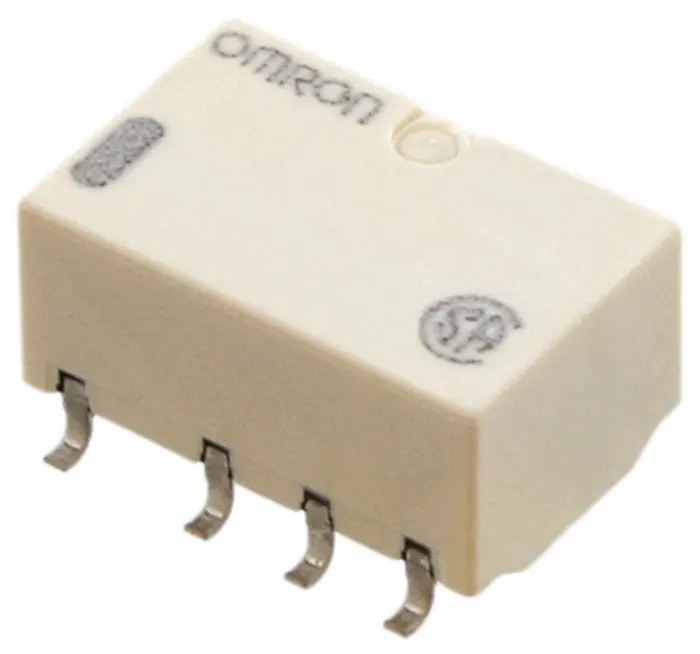

Omron Surface High Frequency Relay 3V DC Coil DPDT Latching Type 100mW Coil Power G6K-2F-Y DC3

Free Delivery in India | Lowest Global Shipping Charges

Omron Surface High Frequency Relay 3V DC Coil DPDT Latching Type 100mW Coil Power G6K-2F-Y DC3

Name: Omron Surface High Frequency Relay 3V DC Coil DPDT Latching Type 100mW Coil Power G6K-2F-Y DC3
Brand: Omron
SKU: 419895
Price: 20.22 USD
Availability: InStock



Category HF & RF Relays Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	5.2mm
Length	10mm
Model	G6K-2F-Y DC3
Mount Type	Surface
Isolation	20dB
Contact Material	Silver Alloy
Maximum Operating Temperature	70°C
Coil Type	Latching
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Contact Resistance	100mΩ
Standards/Approvals	RoHS, CSA, UL
Coil Resistance	91Ω
Coil Power	100mW
Contact Current	1A
Insertion Loss	0.2dB
Aratas Surface Signal Relay, 3V dc Coil, 1A, DPDTBrand	Omron

Key Features

Features a low coil power consumption of 100mW for energy-efficient operation.
Miniature surface mount package with dimensions approximately 10mm length and 5.2mm height.
High-frequency performance with isolation of 20 dB minimum and insertion loss of 0.2 dB maximum.
Suitable for industrial and electronic applications requiring precise switching and signal conditioning.
Operates reliably within temperature range of -40°C to +70°C.
Contacts constructed with silver alloy material ensuring good conductivity and durability.
Meets RoHS, CSA, and UL standards for safety and environmental compliance.

Product Description

Omron G6K-2F-Y DC3 Surface High Frequency Relay features a 3V DC coil with a double-pole double-throw (DPDT) contact configuration and latching coil type, optimized for high-frequency applications up to 1 GHz. This relay consumes low power at 100mW and offers superior electrical isolation of 20 dB minimum and low insertion loss of 0.2 dB maximum, making it ideal for sensitive signal switching.

This miniature relay is designed for surface mount technology (SMT) with compact dimensions (approximately 10mm length by 5.2mm height) and uses robust silver alloy contacts for reliable and durable performance. It supports a contact current of 1 Amp and can operate over a wide temperature range from -40°C to 70°C, suitable for industrial, telecommunications, and automation equipment.

The relay's latching coil type enhances circuit stability by maintaining the last switched state without continuous power consumption. Its fully sealed construction protects against environmental contaminants, extending operational life and reliability in demanding conditions.

Compliant with RoHS environmental standards as well as safety certifications including CSA and UL, this relay conforms to international quality requirements for electronics manufacturing.

Applications include high-frequency signal routing, telecommunications infrastructure, test equipment, and automated control systems where performance and reliability are critical.

Low coil power consumption of 100mW ensures efficient operation. Compact miniature surface mount package for space-constrained designs. High isolation and low insertion loss suitable for RF and signal conditioning use. Wide operating temperature range from -40°C to +70°C supports industrial environments.

Silver alloy contacts provide durable and reliable switching. Fully sealed relay construction for protection against dust and moisture. Meets RoHS, CSA, and UL standards for safety and environmental compliance. Explore a wide range of relays and electronic components in the EnvMart catalog for your industrial and automation needs.
