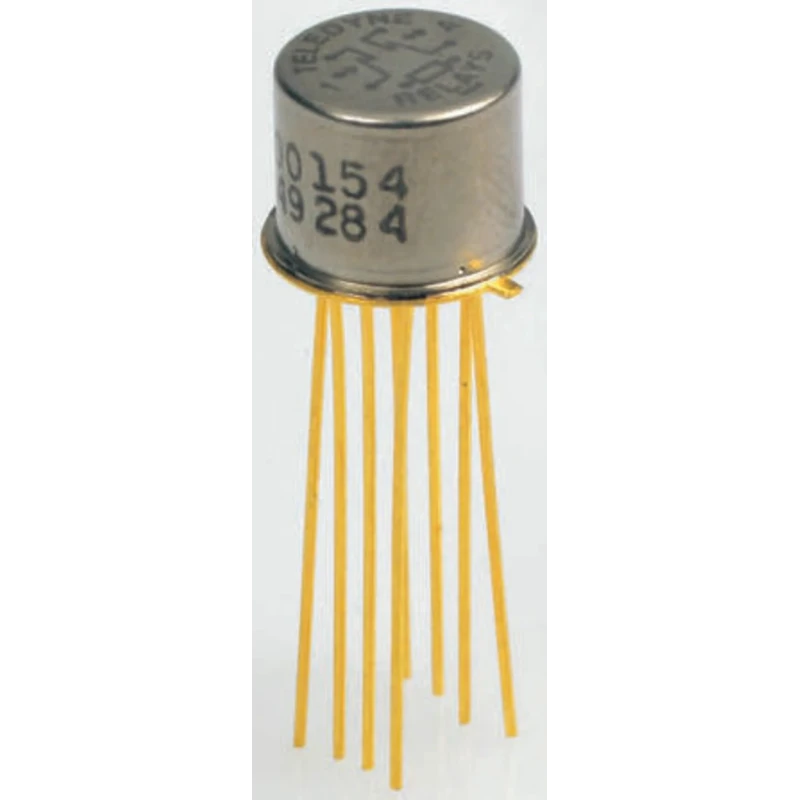

Teledyne RF PCB Relay 5V DC Coil, 450mW, DPDT, Gold Plated Contacts, RoHS Compliant ER412-5A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Teledyne |
| Height | 9.86mm |
| Length | 9.4mm |
| Model | ER412-5A |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | 412 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -65°C |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 50Ω |
| Coil Power | 450mW |
| Teledyne PCB RF Relay, 5V dc Coil, DPDTBrand | Teledyne |
Key Features
- Features a 50Ω coil resistance for efficient operation.
- Gold plated contacts ensure durability and low contact resistance of 100mΩ.
- Hermetically sealed TO-5 package suitable for PCB mounting.
- Operates reliably in temperature ranges from -65°C to 125°C.
- Supports signal switching from DC up to 1.0GHz frequency.
- Coil power rating is 450mW for low power consumption.
- Designed for high ESD resistance and EMI shielding in demanding applications.
- Compact dimensions with length 9.4mm and height 9.86mm.
Product Description
Teledyne ER412-5A RF PCB Relay is a high-performance, hermetically sealed TO-5 relay designed for signal switching from DC to 1.0GHz frequencies. It features a 5V DC coil with a power dissipation of 450mW, ensuring low power consumption while delivering reliable switching.
The DPDT (Double Pole Double Throw) contact configuration with gold plated contacts maintains excellent conductivity and longevity, providing a low contact resistance of 100mΩ. The coil resistance measures 50Ω, allowing stable coil performance.
This relay is engineered for demanding environments, supporting an operating temperature range of -65°C to +125°C. Its compact form factor with a length of 9.4mm and height of 9.86mm makes it suitable for compact PCB mounting applications. The through-hole terminal type facilitates secure installation on printed circuit boards.
Additional protective features include high ESD resistance and EMI shielding, enhancing its durability and reliability in industrial, communication, and electronic applications. The relay series 412 complies with RoHS standards, ensuring environmental safety.
Features a 50Ω coil resistance for efficient operation. Gold plated contacts provide low resistance and extended service life. DPDT contact configuration for versatile switching needs. Hermetically sealed TO-5 package for protection in harsh environments.
Operating temperature range from -65°C to 125°C ensures reliability under extreme conditions. Compact size with 9.4mm length and 9.86mm height suits dense PCB layouts. Low coil power consumption at 450mW reduces energy usage.
High ESD resistance and EMI shielding for stable performance in electronic circuits. Complies with RoHS environmental standards.
This relay is ideally suited for industrial automation, telecommunications, test and measurement instruments, and other electronic equipment requiring precise, high-frequency signal switching. Its robust design assures long-term reliability and performance.
Explore more RF and PCB relay options and components in the Electronics & Electricals category at EnvMart for your engineering and manufacturing needs.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a 5V DC coil and has a power rating of 450mW, ensuring low power consumption during operation.
The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing versatile switching capabilities.
It operates reliably within a temperature range of -65°C to +125°C, making it suitable for extreme conditions.
The contact resistance is 100mΩ, which ensures excellent conductivity and low power loss during operation.
The coil resistance is 50Ω, allowing for efficient operation and stable performance.
This model has compact dimensions with a length of 9.4mm and a height of 9.86mm, making it suitable for PCB mounting.
It is designed for PCB mounting, featuring a through-hole terminal type for secure installation.
The contacts are made of gold plated material, which enhances durability and reduces contact resistance.
Yes, the relay complies with RoHS standards, ensuring it meets environmental safety requirements.
It is ideally suited for industrial automation, telecommunications, and test and measurement instruments requiring precise signal switching.
The relay is engineered with high ESD resistance and EMI shielding, enhancing its reliability in demanding environments.
This relay belongs to the 412 series, which is designed for high-performance applications in RF signal switching.
