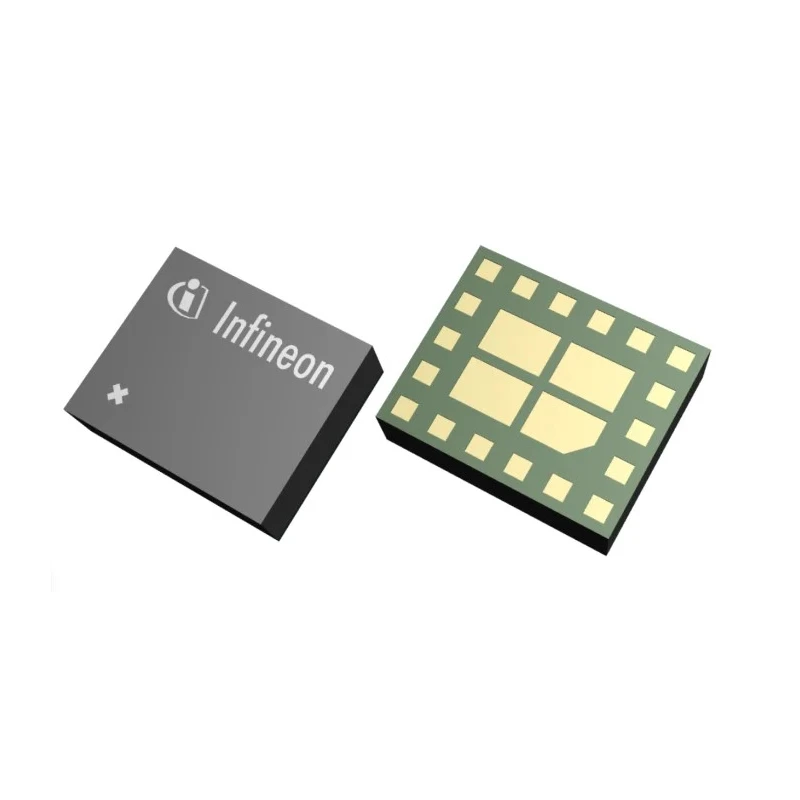

Infineon RF CMOS Switch 19-Pin PG-WLGA-18-1 Surface Mount 1.65-1.95V Operating Voltage BGSX44MU18E6327XUSA1

Infineon BGSX44MU18E6327XUSA1 is a highly integrated RF CMOS switch designed specifically for demanding telecommunication applications such as LTE and 5G FR1 four-antenna systems. This 19-pin device operates with supply voltages from 1.65 V to 1.95 V, ensuring efficient power usage in mobile communication circuits.

The 4P4T cross-switch architecture provides a flexible RF routing switch with low insertion loss and minimal harmonic generation, critical for maintaining signal integrity across wireless communication bands from 0.4 GHz up to 7.13 GHz. Its fast switching time supports 5G SRS applications that require rapid antenna switching.

The compact PG-WLGA-18-1 package measures only 2.0 mm by 2.4 mm with a slim 0.63 mm profile, facilitating installation in space-constrained designs and surface mounting on PCBs. The device features DC-free RF ports and port-to-port isolate to reduce crosstalk and enhance performance in multi-antenna configurations.

Control is achieved via a MIPI RFFE 2.1 compliant interface with software and hardware programmable USID for flexible system integration. The device includes direct battery connection capabilities, allowing efficient power management and low consumption operation.

Manufactured to ROHS and WEEE standards, this RF switch meets environmental compliance requirements for commercial and industrial electronics. Typical use cases include industrial wireless communications, telecommunications infrastructure, mobile device RF front-ends, and advanced antenna systems in commercial and industrial applications.

The device is a low-loss, high linearity 4P4T RF Switch. Operates over frequency bands from 0.4 GHz to 7.13 GHz. Includes MIPI RFFE 2.1 interface for control. Compact PG-WLGA-18-1 lead-less package. Supports supply voltages from 1.65 V to 1.95 V.

Thermal rating supports operation from -40°C to 85°C. Low power consumption suited for mobile and wireless applications. Compliant with RoHS and WEEE standards. Explore similar RF ICs and semiconductor components on EnvMart to find the best fit for your communication module and industrial electronics needs.
