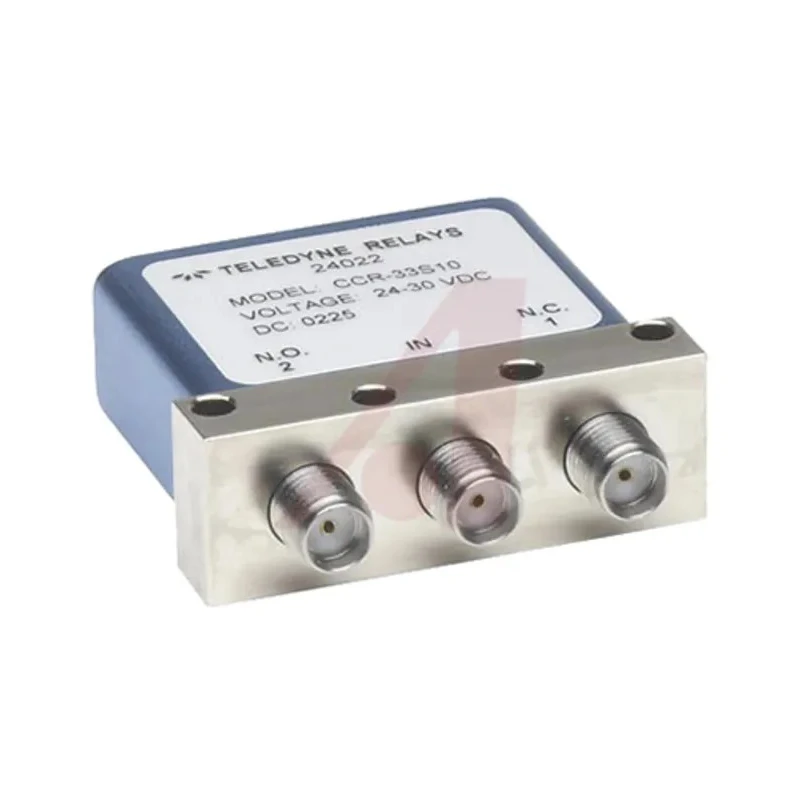

Teledyne RF Switch with SMB Female Connector, SPDT Contact Configuration, 18 GHz Maximum Frequency, 60 dB Port CCR-33S1O

Teledyne CCR-33S1O is a precision RF switch designed with SMB female connectors and SPDT contact configuration. It supports microwave signal switching up to a maximum frequency of 18 GHz and provides 60 dB port-to-port isolation with a minimal insertion loss of 0.5 dB. The switch delivers reliable and fast switching speeds of 20 milliseconds, making it ideal for applications requiring swift and accurate microwave signal routing.

This RF switch operates at an output impedance of 50 ohms and supports contact DC voltage of 28 V and current up to 90 mA. Its compact size with dimensions of 38.1 mm length, 13.21 mm width, and 46.23 mm height allows easy integration into space-limited systems. The device is specified for operation in environments with temperatures from -40°C to 65°C, ensuring wide operational range suitability.

The CCR-33S1O series from Teledyne is widely used in telecommunications, industrial electronic controls, laboratory microwave testing setups, and other high-frequency signal switching applications. Its failsafe actuator and robust design make it appropriate for critical industrial and commercial systems requiring durability and precision.

The SPDT configuration enables selection between two output paths from the common input seamlessly. The SMB female connector provides standardized interface for coaxial cable connections common in high-frequency engineering.

Fast 20 ms switching speed allows dynamic signal routing with minimal latency. High isolation of 60 dB reduces crosstalk and signal leakage. Compact and lightweight design supports versatile system integration. Wide operating temperature range provides resilience in various environmental conditions.

Low insertion loss minimizes signal degradation ensuring high performance. Ideal for use in microwave communication systems, RF testing equipment, and advanced signal control. This product is a new, professional-grade RF switch meeting demanding industrial standards. For further options and related components, explore the RF Switch category at EnvMart.
