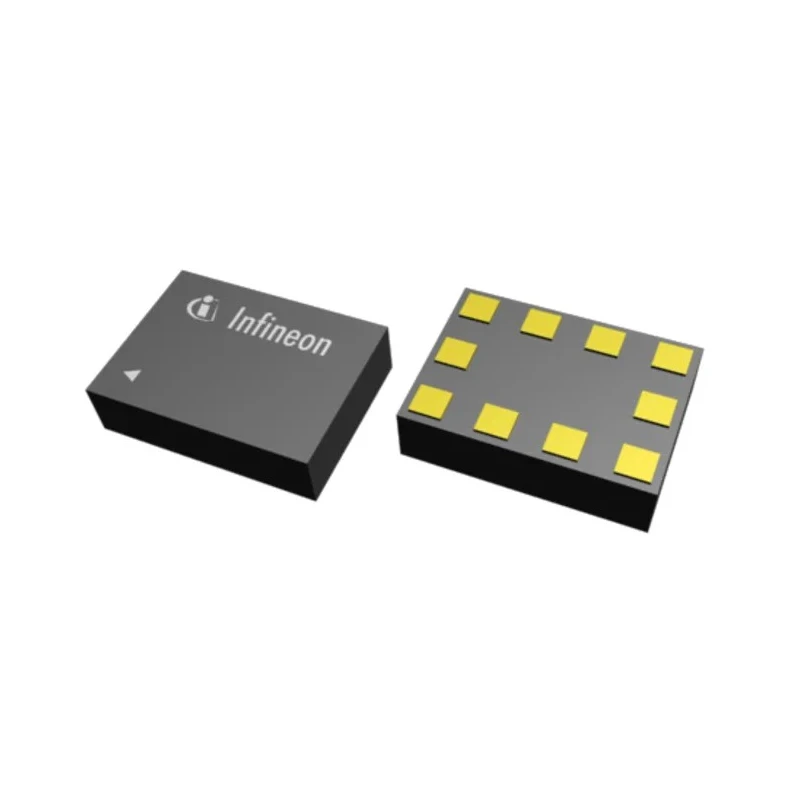

Infineon RF Switch 10-Pin TSLP-10-2 Surface Mount, Operating Frequency 0.4 GHz to 3.8 GHz BGSC2341ML10E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.39mm |
| Length | 1.1mm |
| Model | BGSC2341ML10E6327XTSA1 |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | BGSC2341ML10 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSLP-10-2 |
| Pin Count | 10 |
| Maximum Supply Voltage | 1.95V |
| Minimum Supply Voltage | 1.65V |
| Operating Band 1 Frequency | 0.4GHz |
| Operating Band 2 Frequency | 3.8GHz |
| Number of Operating Bands | 2 |
Key Features
- The switch features a 10-pin TSLP-10-2 package suitable for surface mounting.
- It operates within two frequency bands, offering versatile RF performance.
- Operating voltage ranges from 1.65 V minimum to 1.95 V maximum.
- The device supports up to 125°C maximum operating temperature.
- It includes an 8-state tunable capacitor and a low RON SPDT RF switch function controlled via MIPI 2.1 RFFE interface.
- It provides high ESD robustness and can handle high RF voltage up to 39 V.
- This RF switch is ideal for applications such as tunable impedance matching, antenna tuning, and tunable filtering.
- The part does not conform to automotive standards and has no listed approvals.
Product Description
Infineon BGSC2341ML10E6327XTSA1 is a high-performance RF switch in a 10-pin TSLP-10-2 surface mount package designed for advanced RF tuning applications. Operating between 0.4 GHz and 3.8 GHz, this device integrates an 8-state tunable capacitor and a single pole double throw (SPDT) RF switch with extremely low on-resistance (RON). The switch operates under supply voltages from 1.65 V to 1.95 V and can sustain a maximum operating temperature of 125°C, making it suitable for a wide range of industrial, telecommunication, and wireless application environments.
The compact dimensions (1.1 mm length, 1.5 mm width, 0.39 mm height) enable compact PCB designs and surface mount technology (SMT) assembly. The integrated MIPI 2.1 RFFE digital interface allows efficient control of the tunable capacitor states and switch function, ensuring precision and ease of integration into RF front-end systems.
This RF switch supports two operating frequency bands, providing flexible performance for systems requiring multi-band tunability. Its high RF voltage tolerance up to 39 V and excellent electrostatic discharge (ESD) robustness enhance reliability in demanding wireless communication equipment.
The device does not have automotive certification and is intended for applications where automotive-grade components are not mandatory. Typical uses include tunable impedance matching, antenna tuning, and tunable filtering in communication devices and RF modules.
The switch is surface-mountable with a 10-pin TSLP-10-2 package. It features a 0.26-2.00 pF tuning range at 1.8 GHz frequency. Operating temperature range covers up to 125°C. Pin count is 10 for suitable integration in compact circuits.
Series code BGSC2341ML10 indicates product family and characteristics.
This Infineon RF Switch is a reliable choice for RF communication system designers, offering compact size, digital control, and wide frequency operation. Explore more RF IC products from Infineon and compare specifications to find complementary modules for your design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RF switch operates within two frequency bands, specifically from 0.4 GHz to 3.8 GHz.
The maximum operating temperature for this model is 125°C.
It operates under supply voltages ranging from 1.65 V to 1.95 V.
The TSLP-10-2 package has a pin count of 10.
The dimensions of this RF switch are 1.1 mm in length, 1.5 mm in width, and 0.39 mm in height.
It utilizes a MIPI 2.1 RFFE digital interface for controlling the tunable capacitor states and switch function.
This switch can handle a maximum RF voltage of up to 39 V.
It is suitable for applications such as tunable impedance matching, antenna tuning, and tunable filtering.
The integrated capacitor has a tuning range of 0.26 to 2.00 pF at 1.8 GHz frequency.
This model features a surface mount construction type.
No, this RF switch does not conform to automotive standards and has no listed approvals for automotive use.
The country of origin for this RF switch is India.
