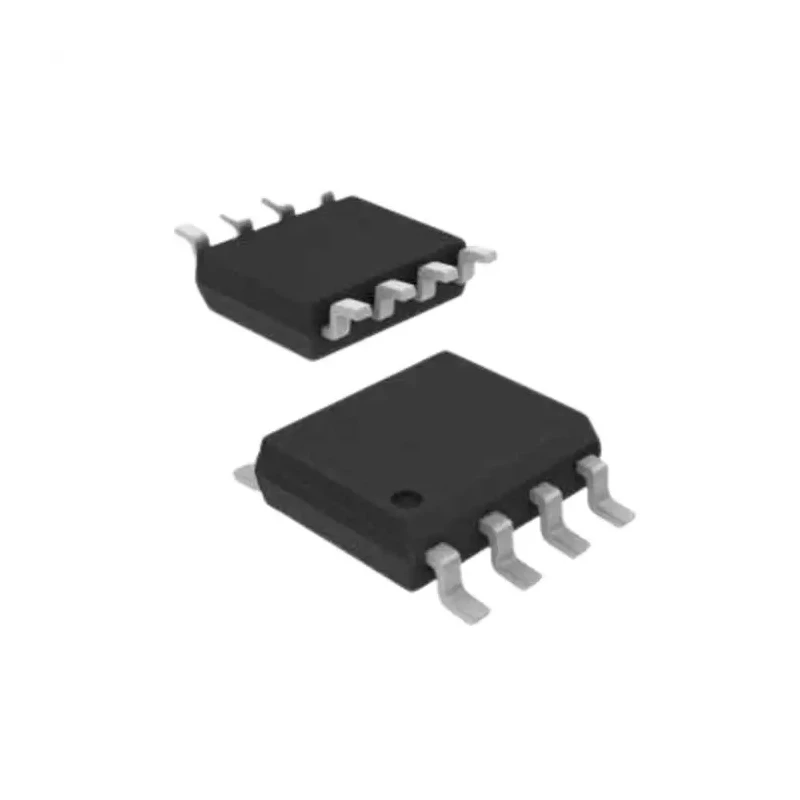

Nisshinbo Micro Devices Operational Amplifier Dual Channel Surface Mount 8-Pin DMP Package 8 MHz Gain Bandwidth NJM4556AM-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4556AM-TE1 |
| Mount Type | Surface |
| Series | NJM4556A |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 3V/μs |
| Input Offset Current | 60 nA |
Key Features
- This operational amplifier supports a supply voltage range from 2V to 18V.
- It features a low input bias current of 500 nanoamperes for precision applications.
- The device provides a high slew rate of 3 volts per microsecond for fast signal response.
- Input offset voltage is low at 6 millivolts, ensuring accuracy in signal amplification.
- Designed to operate reliably between -40°C and 85°C temperature range.
- It includes two channels with 8 pins and complies with RoHS directives.
- Ideal for audio, telecommunications and instrumentation applications requiring low noise and high current drive capabilities.
- Manufactured with bipolar technology, it can drive low impedance loads down to 150 ohms.
Product Description
Nisshinbo Micro Devices NJM4556AM-TE1 operational amplifier is a dual high current device housed in an 8-pin DMP surface mount package featuring 8 MHz gain bandwidth. It supports a maximum supply voltage of 18 volts and minimum supply voltage of 2 volts, enabling flexible power conditions.
This dual channel operational amplifier is built with bipolar technology, delivering low noise and a high slew rate of 3 V/μs, suitable for high speed signal amplification in audio, telecommunications, and instrumentation fields.
The amplifier exhibits low input bias current at 500 nanoamperes and a low input offset voltage of 6 millivolts, ensuring precise and accurate signal processing. It operates reliably over an industrial temperature range from -40°C to 85°C.
The NJM4556AM-TE1 is RoHS compliant and designed to drive loads down to 150 ohms, making it well suited to applications requiring high current drive capability. Supply voltage range: 2V to 18V. Gain bandwidth product: 8 MHz.
Slew rate: 3 V/μs. Low input offset voltage: 6 mV. Low input bias current: 500 nA. Industrial temperature range operation. Dual operational amplifier channels. RoHS compliant. Bipolar technology for low noise and high current.
Surface mount 8-pin DMP package.
This operational amplifier is ideal for industrial and commercial use in audio devices, telecommunications, instrumentation, and other electronic applications demanding stable and low-noise amplification. Its surface mount package supports compact circuit design and efficient assembly in modern electronics manufacturing.
Discover more Operational Amplifiers and related components at EnvMart for comprehensive industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier supports a supply voltage range from 2V to 18V.
The gain bandwidth product of the NJM4556AM-TE1 is 8 MHz.
It can operate reliably at a maximum temperature of 85°C.
This model features two channels.
The input bias current is low at 500 nanoamperes.
The slew rate is 3 volts per microsecond (3 V/μs).
The input offset voltage is low at 6 millivolts.
It operates reliably between -40°C and 85°C.
This operational amplifier is housed in an 8-pin DMP surface mount package.
Yes, this operational amplifier complies with RoHS directives.
It is manufactured with bipolar technology, providing low noise and high current drive capabilities.
It can drive low impedance loads down to 150 ohms.
