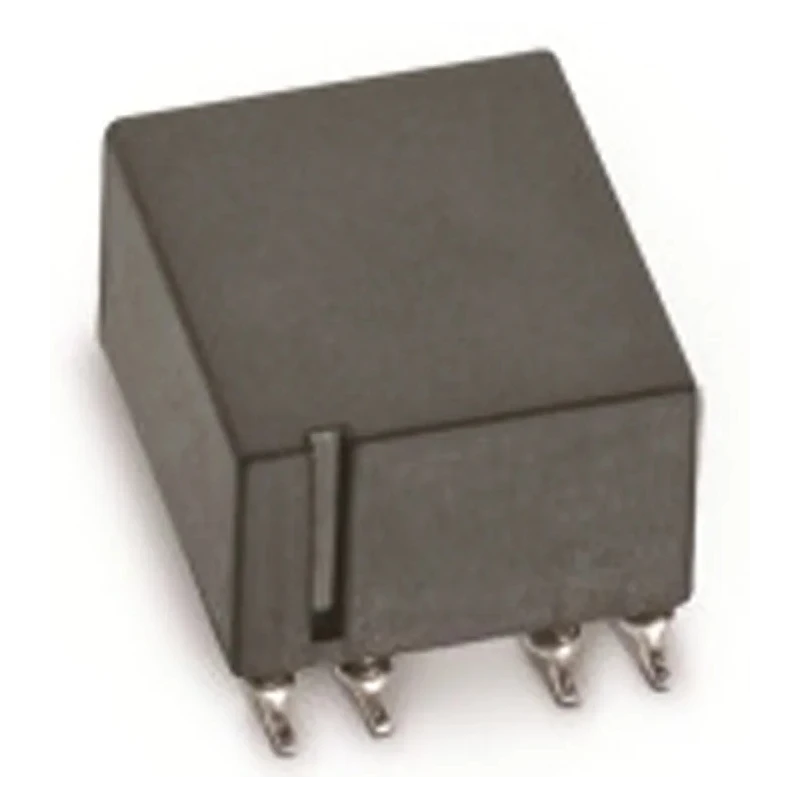

Wurth Elektronik 1.5 mH 1.5 A Common Mode Filter 0.12 Ω 80V 744290152
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 7.8mm |
| Length | 14mm |
| Depth | 12.5mm |
| Mount Type | Axial |
| Series | WE-UCF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Ferrite |
| Inductance | 1.5mH |
| Number of Lines | 2 |
| Standards/Approvals | REACH, RoHS |
| Maximum DC Current | 1.5A |
| Maximum DC Resistance | 0.12Ω |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder Pad |
| Choke Voltage | 80V |
Key Features
- Inductance of 1.5 mH ensures reliable suppression of electromagnetic interference.
- Supports a maximum DC current of 1.5 A suitable for low power electronic circuits.
- Features a maximum DC resistance of 0.12 Ω for minimal power loss.
- Compact axial mount type with length 14 mm, height 7.8 mm, and depth 12.5 mm.
- Core is made of ferrite material ensuring high performance and durability.
- Operating temperature range from -40°C to 125°C for versatile environmental tolerance.
- Tested at 50 Hz frequency with an inductance tolerance of -30% to +50%.
- Termination style is solder pad enabling easy PCB assembly.
Product Description
Wurth Elektronik 744290152 1.5 mH 1.5 A Common Mode Filter is a high-quality EMI suppression component designed for use in electronic and industrial applications where electromagnetic interference needs to be controlled. This axial mount filter combines a ferrite core and a carefully wound choke to suppress noise across power and signal lines effectively.
Its compact dimensions of 14 mm length, 7.8 mm height, and 12.5 mm depth allow integration into space-constrained PCBs and assemblies. The solder pad termination style facilitates reliable solder joint formation and ease of manufacture.
With a maximum DC current rating of 1.5 A and a low DC resistance of 0.12 Ω, this filter minimizes power losses while maintaining robust EMI suppression. It is suitable for duty in harsh environments with an operating temperature range from -40°C to 125°C.
The filter is compliant with REACH and RoHS standards, ensuring that it meets modern environmental and safety requirements. Its inductance tolerance ranging from -30% to +50% accounts for manufacturing variations while maintaining effective performance.
Typical applications include filtering in DC power lines, buck and boost converter circuits, and data lines with low bitrate signals, making it versatile for power supply and signal integrity management in industrial electronics, consumer devices, and telecommunications equipment.
Inductance of 1.5 mH for effective EMI noise suppression. Maximum DC current rating of 1.5 A ensures operational reliability. Axial mount design with solder pad termination for easy PCB assembly. Ferrite core material guarantees stable inductive filtering characteristics.
Wide operating temperature range from -40°C to 125°C. Low maximum DC resistance of 0.12 Ω reduces power dissipation. Compliant with REACH and RoHS environmental standards. Compact dimensions of 14 mm x 12.5 mm x 7.8 mm enable space-efficient layouts.
Suitable for filtering DC power lines and low bitrate data circuits. Explore more EMI filters and protection components at EnvMart to enhance your industrial and electronic system designs.
Explore more products in our EMI Filters & Protection category.
