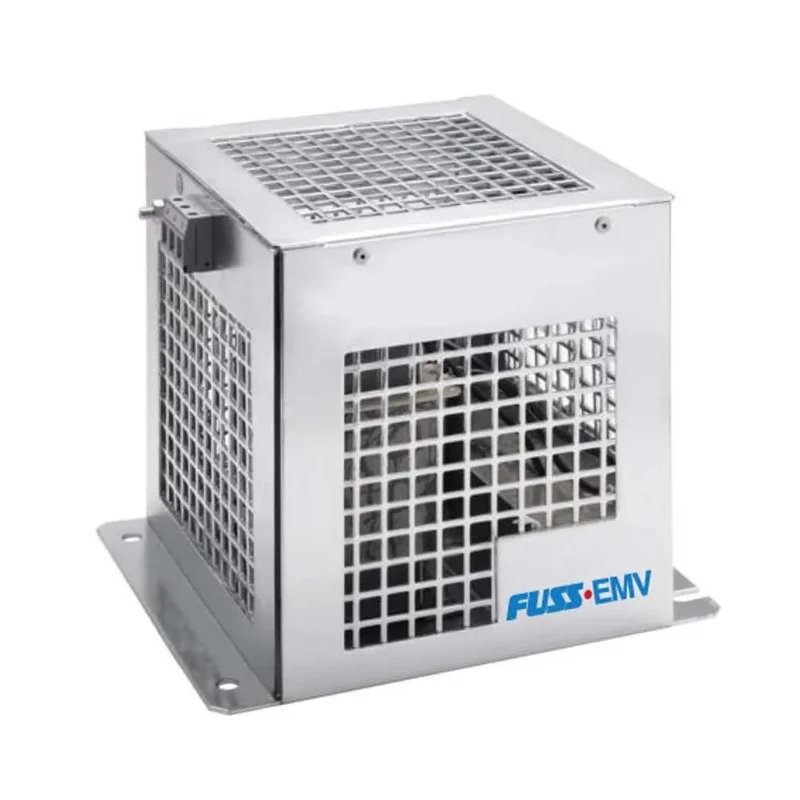

FUSS-EMV Sine Wave Filter 500V AC 35 A 16 kHz 3AFSAP400-035.060

FUSS-EMV 3AFSAP400-035.060 Sine Wave Filter is a 3-phase all-pole sinusoidal filter designed for superior electromagnetic compatibility in industrial and sensitive applications. It operates at 500V AC with a maximum current of 35 A and supports switching frequencies up to 16 kHz.

This sine wave filter excels at minimizing both conducted and radiated electromagnetic disturbances, making it ideal for use in elevators, fans, pumps, compressors, medical facilities, measuring laboratories, IT environments, and residential areas.

The filter allows for the use of unshielded cables of any length, with a recommendation for cable lengths of 100 meters or more, thus reducing installation costs and complexity. This is particularly beneficial for spatially extended drive systems such as tunnels, wind power plants, and mining operations.

With a maximum operating temperature of 60°C and CE certification, the filter guarantees durability and compliance with industry standards. The physical dimensions of this filter are 245 mm in length, 399 mm in height, and 230 mm in depth, making it compact for integration into existing systems.

All-pole sine filter achieves excellent EMC properties by minimizing conducted and radiated disturbances. Recommended for filtering drives in elevators, fans, pumps, and compressors in sensitive environments. Reduces noise by up to 10 dB, improving electromagnetic compatibility.

Supports unshielded cables of any length, ideally greater than 100 meters. Suitable for spatially extended drive systems such as tunnels, wind power plants, and mines. Eliminates the cost and complexity of installing screened cables by using all-pole sine filtering technology.

Maximum operating temperature is 60°C for reliable performance. CE compliant to ensure safety and performance standards. Dimensions are 245 mm (Length), 399 mm (Height), and 230 mm (Depth).

This product is essential for industrial, manufacturing, construction, HVAC, and power electronics applications requiring high EMC performance and reduced noise levels. For more products related to EMI and sine wave filtering, browse the Electronics & Electricals category on EnvMart.
