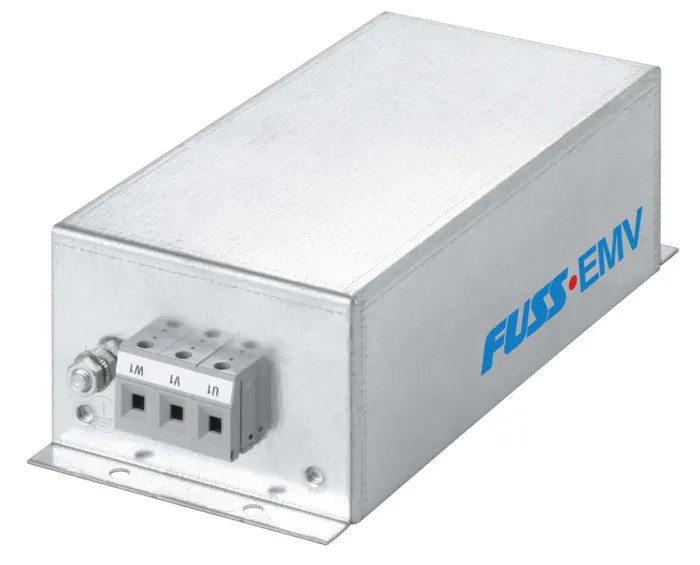

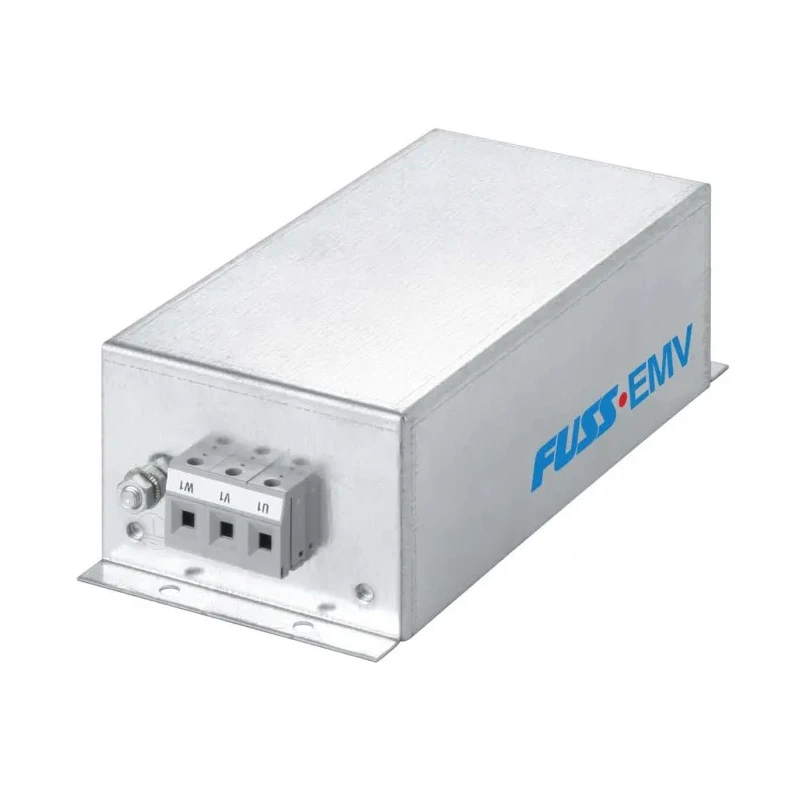

FUSS-EMV 3-Phase Panel Mount EMI Filter 16A 528V AC 50Hz/60Hz Screw Termination 3F480-016.260

The FUSS-EMV 3F480-016.260 is a high-performance 3-phase panel mount EMI filter suitable for industrial and electronic applications requiring interference reduction. Rated for a maximum current of 16A and capable of handling voltages up to 528V AC at 50Hz or 60Hz frequency, this filter is engineered to suppress high-frequency interference effectively.

Featuring a two-stage design, the filter achieves excellent damping performance typically meeting the C2 suppression level according to EN61800 standards or class B according to EN55011, which are essential for compliance in industrial electrical devices and drives.

Its compact dimensions (length 257mm, height 255mm, depth 110mm) allow easy integration into panel mount configurations. The screw termination provides a reliable and secure electrical connection, making it suitable for heavy industrial usage.

The EMI filter's maximum operating temperature is rated at 45°C, with a leakage current of 6mA to minimize noise and enhance the stability of connected equipment. Power loss under rated conditions is limited to 16W, ensuring energy-efficient operation.

This filter is widely used in electronic drive systems, machinery, laboratory equipment, and HVAC systems where control of electromagnetic interference is critical to maintain functionality and compliance with regulatory standards.

Robust panel mount EMI filter for high current applications. Supports 3-phase electrical systems with two-stage filtering design. Operates at a frequency range of 50Hz to 60Hz with maximum voltage of 528V AC. Maximum operating temperature is 45°C ensuring reliable performance.

Low leakage current of 6mA to reduce electrical noise and interference. Compact dimensions: length 257mm, height 255mm, depth 110mm. Power loss is 16W under maximum load conditions. Termination by screw type ensuring secure and stable connections.

Meets EMC standard levels with high damping efficiency for industrial use. Applicable in electronic drive systems, machinery, and devices requiring interference suppression.

Environmentally compliant and constructed for durability, the FUSS-EMV 3F480-016.260 is a dependable choice for ensuring electromagnetic compatibility and noise reduction in demanding industrial and commercial environments. Explore more EMI Filter options and components in the Electronics Components category at EnvMart.
