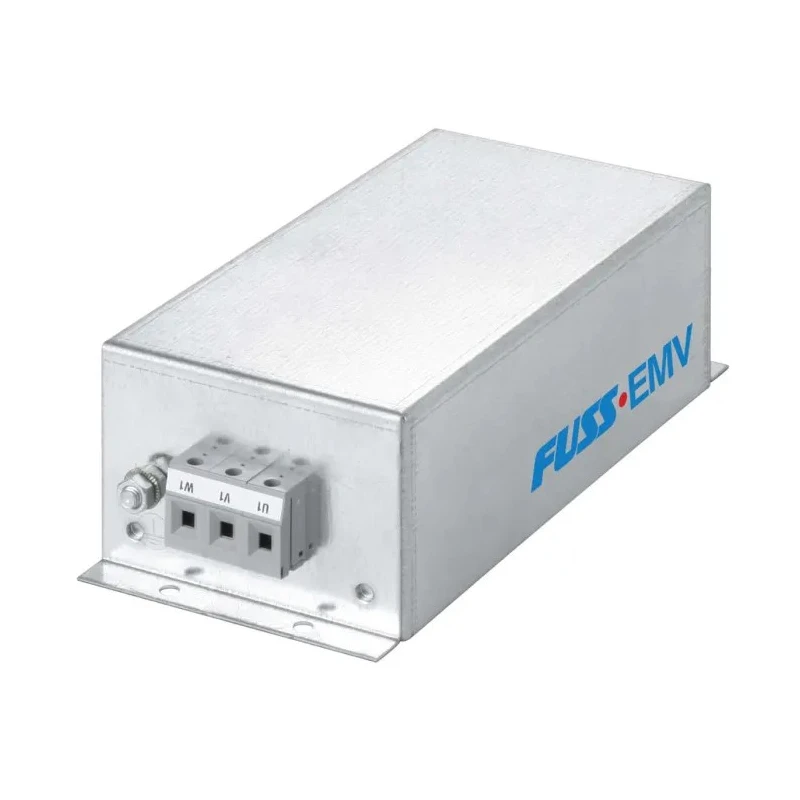

FUSS-EMV 3-Phase 35A 528V AC EMI Filter Panel Mount Screw Termination 3F480-035.260
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | FUSS-EMV |
| Height | 270mm |
| Length | 271mm |
| Model | 3F480-035.260 |
| Depth | 145mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | 3F480 |
| Maximum Operating Temperature | 45°C |
| Number Of Stages | 2 |
| Maximum Current | 35A |
| Number of Phases | 3 |
| Leakage Current | 12mA |
| Maximum Voltage | 528V ac |
| Termination Style | Screw |
| Power Loss | 34W |
Key Features
- Designed for 3-phase electronic drive systems and devices.
- Panel mount installation with secure screw termination style.
- Operates at 50 Hz and 60 Hz frequencies.
- Rated maximum current of 35 amperes and 528 volts AC voltage.
- Dual-stage design offers high damping and interference suppression.
- Maximum leakage current limited to 12mA for safety compliance.
- Compact with dimensions 271mm length, 270mm height, and 145mm depth.
- Maximum operating temperature is 45 degrees Celsius.
Product Description
The FUSS-EMV 3F480-035.260 is a 3-phase EMI filter specifically designed for electronic drive systems, machines, and electrical devices to minimize high frequency interference voltage. Rated for 35A maximum current and 528V AC maximum voltage, this panel mount filter offers reliable performance in industrial, commercial, and laboratory applications.
Constructed with a two-stage design, this EMI line filter delivers high damping levels, achieving C2 suppression level compliant with EN61800 standards and Class B as per EN55011 norms. It operates effectively across 50Hz and 60Hz frequencies, making it suitable for diverse power systems worldwide.
The filter features screw termination providing secure installation on panels. Its compact dimensions (271mm length, 270mm height, and 145mm depth) facilitate integration into constrained electrical enclosures. The maximum operating temperature is 45°C, ensuring dependable functioning under typical industrial conditions.
With a low leakage current of 12mA and a power loss rating of 34W, the 3F480-035.260 model balances efficiency and safety. Manufactured in Germany, it is supplied as a new product without additional certifications but meets key industry standards for EMI suppression.
Designed for 3-phase electronic drive system interference reduction. Panel mount type with screw termination for secure fitting. Supports operating frequencies between 50 and 60 Hz. Maximum current rating of 35 amperes and voltage rating of 528V AC.
Two-stage construction achieving high EMI damping levels. Leakage current limited to 12mA to ensure safety. Compact dimensions optimize usage in electrical panels. Operating temperature limit at 45°C for reliable performance.
Power loss effectively managed at 34 watts. Complies with EN61800-3-ff and EN55011 standards.
This EMI filter is ideal for industrial, laboratory, manufacturing, and commercial electrical systems requiring effective suppression of electromagnetic interference to comply with regulatory norms and ensure equipment longevity.
Explore more EMI filters and power line filter products at EnvMart for comprehensive protection solutions.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 35 amperes.
It has a maximum voltage rating of 528 volts AC.
The dimensions are 271mm in length, 270mm in height, and 145mm in depth.
It operates effectively at both 50 Hz and 60 Hz frequencies.
This model features a panel mount installation with secure screw termination.
The maximum operating temperature is 45 degrees Celsius.
The leakage current is limited to 12mA for safety compliance.
The power loss is rated at 34 watts.
It complies with EN61800 standards and Class B as per EN55011 norms.
This model is manufactured in Germany.
It is suitable for industrial, commercial, and laboratory applications requiring effective suppression of electromagnetic interference.
