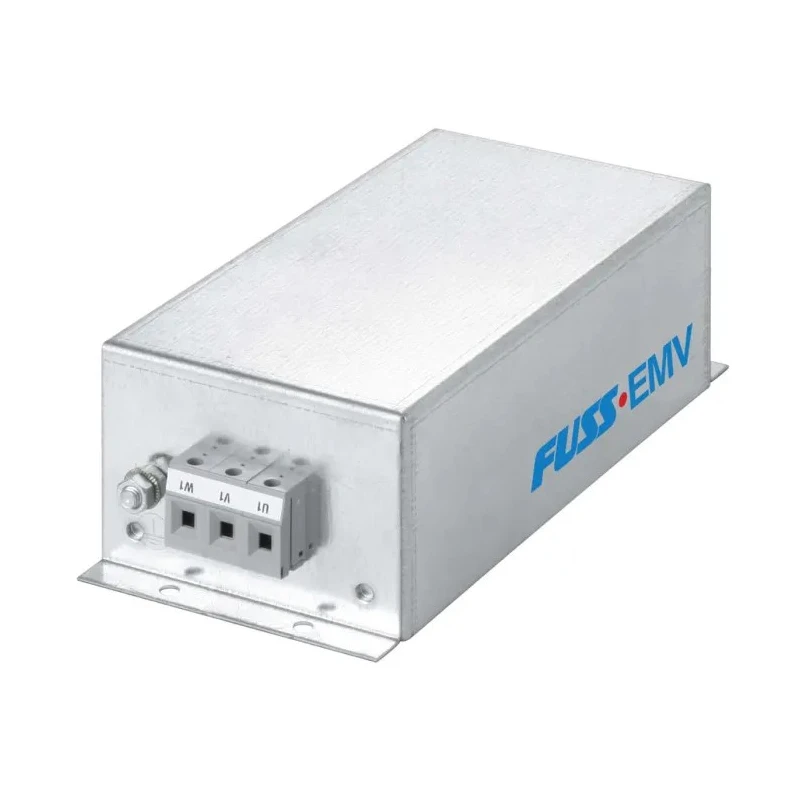

FUSS-EMV 3-Phase Panel Mount EMI Filter 50A 528V AC 50Hz/60Hz Screw Termination 3F480-050.260
Specifications
| Country of Origin | India |
|---|---|
| Brand | FUSS-EMV |
| Height | 270mm |
| Length | 271mm |
| Model | 3F480-050.260 |
| Depth | 145mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | 3F480 |
| Maximum Operating Temperature | 45°C |
| Number Of Stages | 2 |
| Maximum Current | 50A |
| Number of Phases | 3 |
| Leakage Current | 12mA |
| Maximum Voltage | 528V ac |
| Termination Style | Screw |
| Power Loss | 26W |
Key Features
- Designed for panel mounting with screw termination ensuring secure installation.
- Features two-stage design providing high level EMI noise attenuation.
- Operates effectively at maximum temperature of 45°C.
- Suitable for electronic drive systems, machines, and devices to suppress high frequency interference.
- Measures 271mm length, 270mm height, and 145mm depth for efficient panel integration.
- Leakage current is limited to 12mA for enhanced safety and performance.
- Power loss rated at 26W to maintain operational efficiency.
- Complies with EMC norms EN61800-3-ff for drives and EN55011 for power electrical devices.
Product Description
The FUSS-EMV 3F480-050.260 is a 3-Phase Panel Mount EMI Filter designed to effectively reduce high frequency interference voltages in electronic drive systems, machines, and industrial devices. It supports a maximum current of 50A and a voltage of 528V AC, operating efficiently across 50Hz and 60Hz frequencies.
This EMI filter is equipped with screw termination for durable and reliable panel mounting. Its two-stage design achieves high damping levels, ensuring compliance with critical electromagnetic compatibility standards such as EN61800-3-ff for electronic drives and EN55011 for other electrical equipment.
With a compact size of 271mm in length, 270mm in height, and 145mm in depth, this filter fits neatly into control panels and enclosures. It features a leakage current of 12mA and operates safely up to 45°C maximum temperature while maintaining a power loss of only 26W, making it energy efficient.
The 3F480 series from FUSS-EMV is engineered to offer class B suppression level per EN55011 and a C2 suppression level per EN61800, thereby protecting sensitive equipment from EMI disturbances and enhancing overall performance and lifespan.
Designed for panel mount installation with screw termination style. Two-stage EMI filter for superior noise reduction. Suitable for 3-phase power systems with 50A maximum current. Ensures compliance with EN61800-3-ff and EN55011 standards.
Compact dimensions optimize space utilization in panels. Low leakage current enhances safety in operation. Efficient power loss rating supports energy conservation.
This product is ideal for use in industrial automation, electrical and electronic manufacturing, and facilities requiring stringent electromagnetic compatibility performance. It supports enhanced operational reliability of electronic drives and power line filtering applications.
Explore EnvMart’s extensive categories for EMI Filters & Protection to find complementary components and other electronic filter solutions from trusted brands like FUSS-EMV.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 50A.
It supports a maximum voltage of 528V AC.
This model measures 271mm in length, 270mm in height, and 145mm in depth.
It operates effectively at frequencies of 50Hz and 60Hz.
The leakage current is limited to 12mA.
The maximum operating temperature is 45°C.
It features a screw termination style for secure installation.
The two-stage design provides a high level of EMI noise attenuation, enhancing performance in suppressing high frequency interference.
It complies with EMC norms EN61800-3-ff for electronic drives and EN55011 for power electrical devices.
The power loss is rated at 26W, ensuring operational efficiency.
It is suitable for electronic drive systems, machines, and devices that require suppression of high frequency interference.
The country of origin for this product is India.
