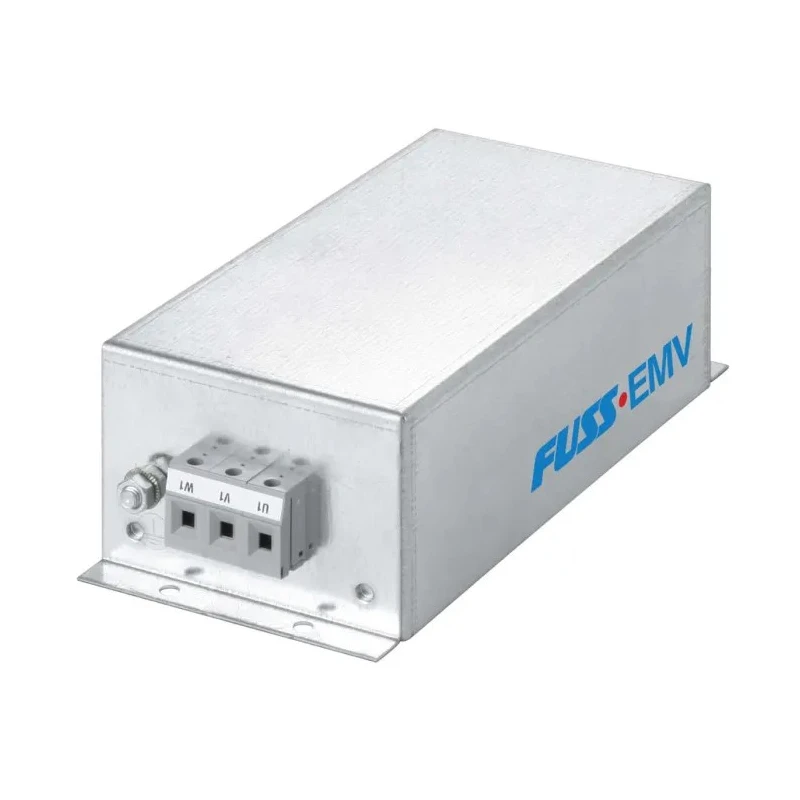

FUSS-EMV 3-Phase Panel Mount EMI Filter 7A 528V AC 50Hz/60Hz Screw Termination 3F480-007.260
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | FUSS-EMV |
| Height | 175mm |
| Length | 177mm |
| Model | 3F480-007.260 |
| Depth | 75mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | 3F480 |
| Maximum Operating Temperature | 45°C |
| Number Of Stages | 2 |
| Maximum Current | 7A |
| Number of Phases | 3 |
| Leakage Current | 3mA |
| Maximum Voltage | 528V ac |
| Termination Style | Screw |
| Power Loss | 5W |
Key Features
- Panel mount design with screw termination ensures secure installation.
- Operates effectively at a maximum temperature of 45°C.
- Features a two-stage filter design for high frequency interference suppression.
- Leakage current is limited to 3mA for safety compliance.
- Complies with EN61800-3-ff and EN55011 electromagnetic interference standards.
- Compact dimensions of 177mm length, 175mm height, and 75mm depth.
- Power loss is low at 5W for efficient performance.
- Manufactured in Germany to high quality standards.
Product Description
FUSS-EMV 3F480-007.260 is a 3-phase EMI line filter featuring a panel mount configuration and screw termination style. Designed to operate at a maximum current of 7 amperes and a voltage of 528V AC at 50Hz or 60Hz frequency, this filter is ideal for reducing high frequency interference in electronic drive systems, machinery, and devices.
The 3F480 series employs a two-stage design that achieves a high level of damping, meeting stringent EMC requirements such as the C2 suppression level under EN61800 and Class B under EN55011 standards. This makes it suitable for industrial and commercial applications requiring reliable electromagnetic interference mitigation.
Its compact size with dimensions of 177mm length, 175mm height, and 75mm depth allows easy integration into electrical panels with panel mount installation. The screw termination style ensures sturdy and secure electrical connections.
With a maximum operating temperature of 45°C and leakage current limited to 3mA, this EMI filter supports safe and efficient operation. The low power loss rating of 5 watts further contributes to its operational efficiency.
Manufactured in Germany, this product offers quality assurance and durability for demanding electronic and electrical environments including industrial automation, machinery, drive systems, and power line filtering needs.
Overall, the FUSS-EMV 3F480-007.260 EMI filter provides robust interference suppression, compliance with international EMC standards, and reliable performance for various electronic and industrial applications.
Panel mount design with screw termination ensures secure installation. Operates effectively at a maximum temperature of 45°C. Features a two-stage filter design for high frequency interference suppression. Leakage current is limited to 3mA for safety compliance.
Complies with EN61800-3-ff and EN55011 electromagnetic interference standards. Compact dimensions of 177mm length, 175mm height, and 75mm depth. Power loss is low at 5W for efficient performance. Manufactured in Germany to high quality standards.
Explore more EMI filter solutions at EnvMart for enhanced electrical noise mitigation and compliance.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 7 amperes.
This unit has dimensions of 177mm in length, 175mm in height, and 75mm in depth.
The maximum operating voltage for this EMI filter is 528V AC.
It operates effectively at both 50Hz and 60Hz frequencies.
This model features a screw termination style for secure connections.
The power loss rating is low at 5 watts, contributing to its operational efficiency.
It can operate effectively at a maximum temperature of 45°C.
This EMI filter features a two-stage design for high frequency interference suppression.
The leakage current is limited to 3mA for safety compliance.
It complies with EN61800-3-ff and EN55011 electromagnetic interference standards.
This product is manufactured in Germany, ensuring quality assurance.
It is suitable for industrial and commercial applications requiring reliable electromagnetic interference mitigation.
