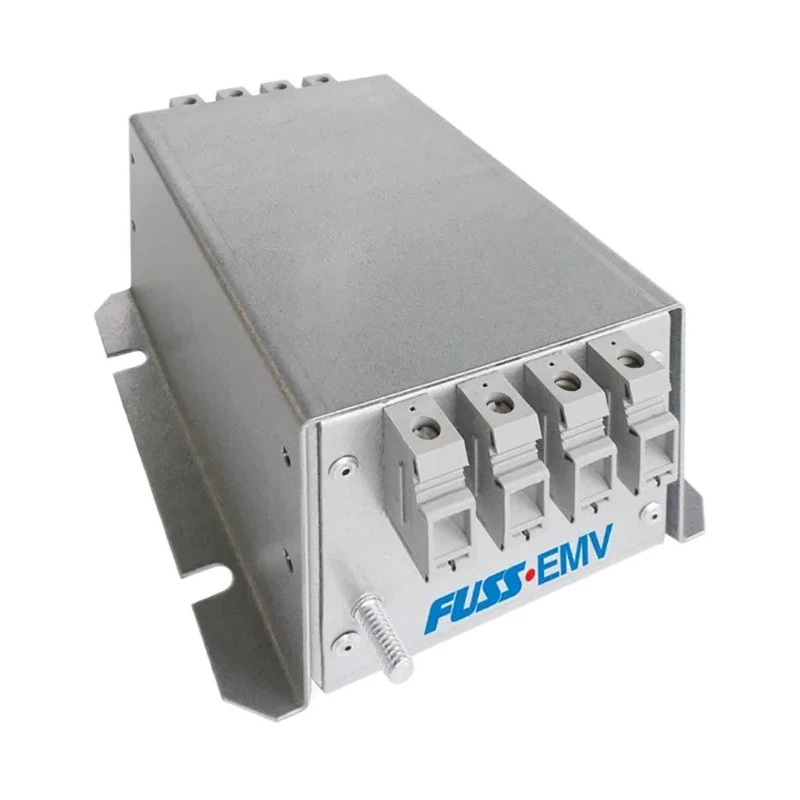

FUSS-EMV Panel Mount 3 Phase 2-Stage EMI Filter 125A 528V AC 50Hz/60Hz Screw Termination 4F480-125.260

FUSS-EMV 4F480-125.260 is a 3 phase, 2-stage panel mount EMI filter designed for industrial and machinery applications requiring high-quality electromagnetic interference suppression. This filter supports a maximum current of 125A and is rated for voltages up to 528V AC, operating effectively at both 50Hz and 60Hz frequencies. It features screw termination for secure electrical connections and finger-safe terminals to ensure safe handling during installation.

The compact design with dimensions 256mm length, 121mm height, and 160mm depth makes it suitable for panel mounting in constrained setups. Operating temperature is rated up to 45°C, providing stable performance in typical industrial environments. With a power loss of 50W, the 4F480 series balances efficiency with high attenuation using a dual-stage circuit topology, resulting in reduced electromagnetic noise and interference.

Constructed for durability, the filter is mechanically robust and reliable for continuous operation in demanding industrial contexts. Common use cases include machinery control panels, industrial equipment electrical systems, and power line filtering applications to reduce EMI and ensure compliance with electromagnetic compatibility standards.

The 4F480-125.260 EMI filter is ideal for environments where interference suppression is critical for operational stability and equipment longevity. It contributes to maintaining signal integrity and protecting sensitive electronics.

Supports maximum current of 125A for robust power handling. Operates at voltage up to 528V AC across 50Hz and 60Hz frequencies. Designed as a compact 2-stage filter for effective EMI suppression. Features finger-safe terminals for enhanced user safety during installation.

Constructed for mechanical robustness ensuring long-term reliability. Includes screw termination style for secure connections. Suitable for machinery and industrial equipment requiring EMI protection. Maximum operating temperature rated at 45°C for stable performance.

Dimensions of 256mm length, 121mm height, and 160mm depth facilitate panel mounting. Power loss rated at 50W indicating efficient operation. Explore the extensive range of EMI filters and power line filters available at EnvMart for diverse industrial and commercial needs.
