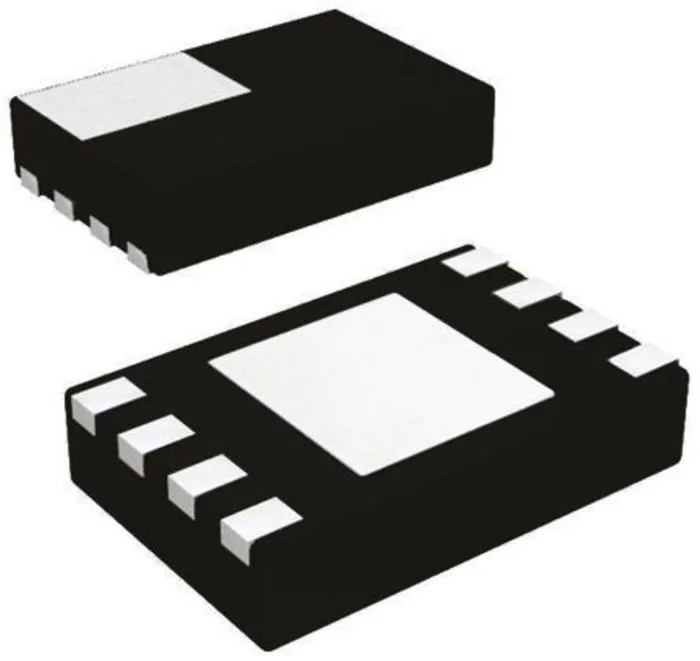

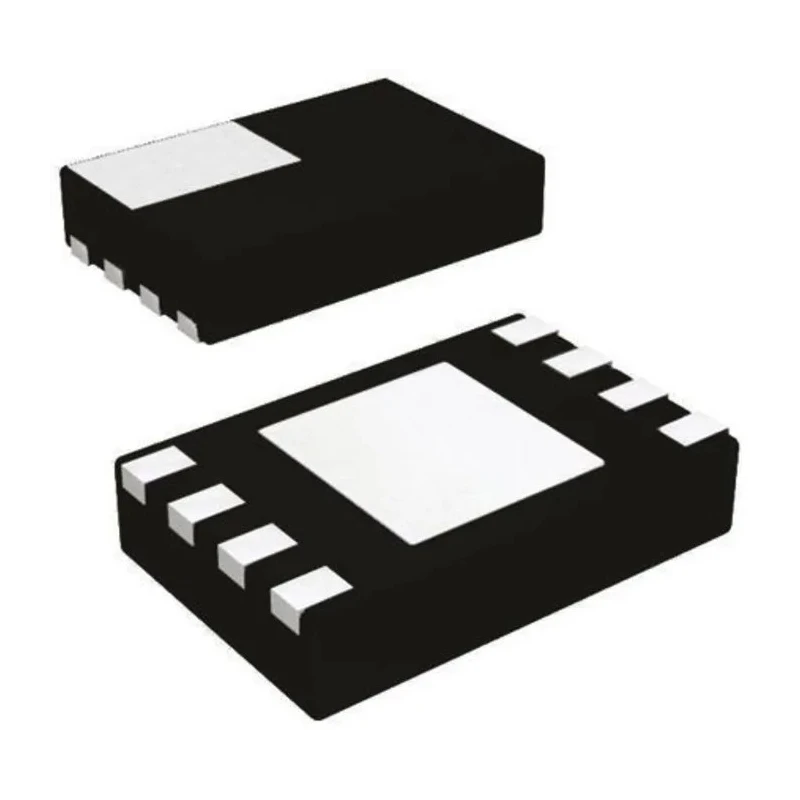

onsemi 4-Element Uni-Directional EMI Filter and ESD Protector 8-Pin UDFN-1713 EMI7204MUTAG

onsemi EMI7204MUTAG is a 4-element uni-directional EMI filter and ESD protector designed in an 8-pin UDFN-1713 surface mount package, measuring 1.7 mm in length, 1.35 mm in width, and 0.5 mm in height. It provides robust protection against electromagnetic interference and electrostatic discharge for semiconductor circuits in demanding industrial and commercial settings.

This device features a complex diode configuration array ensuring uni-directional current flow and efficient transient voltage suppression with a minimum breakdown voltage of 9 V and a maximum reverse stand-off voltage of 5 V. The device also maintains a low maximum reverse leakage current of 1 μA, optimizing energy efficiency without sacrificing protection.

The built-in ESD protection provides resilience against electrostatic events, making it ideal for safeguarding sensitive electronics. It operates reliably across a broad temperature range from -40°C to 85°C. With 8 pins and 4 elements per chip, it is suitable for surface mounting, facilitating automated PCB assembly and enhancing production efficiency.

Though not certified to automotive standards, this EMI filter with integrated ESD protection serves well in electronic component assemblies, power connectors, and other PCB applications requiring transient voltage suppression and electromagnetic interference mitigation.

Compact UDFN-1713 package dimensions support high-density PCB designs. Uni-directional complex diode array ensures accurate voltage clamping. Wide operating temperature range supports industrial and commercial electronic environments.

Low leakage current minimizes power consumption during operation. Integrated ESD protection enhances device reliability and longevity. Surface mount type package facilitates automated manufacturing processes. Eight-pin configuration with four elements per chip balances protection and size.

Robust EMI and ESD suppression suitable for a broad range of semiconductor applications.

This onsemi model EMI7204MUTAG offers engineers and system designers an effective solution for transient voltage suppression and EMI filtering in complex electronic systems. It is ideal for use in power connectors, semiconductor devices, and electronic components within industrial tools, HVAC, manufacturing, and commercial electronic assemblies.
