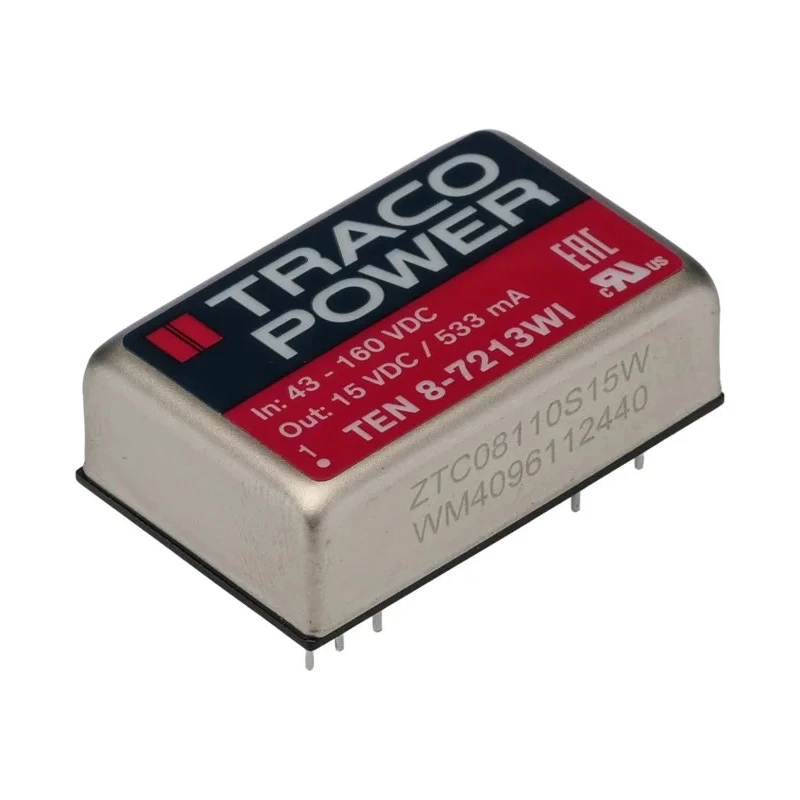

TRACOPOWER DC/DC Converter DIP Package 15V DC 533mA Output 160V DC Max Input TEN 8-7213WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 32mm |
| Model | TEN 8-7213WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 43V |
| Pay online using | Or choose to pay later via bank transfer |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 533mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- High efficiency of 86% minimizes heat dissipation.
- Wide operating temperature range from -40°C to 85°C ensures reliable industrial performance.
- Compact DIP-24 package measuring 32mm length, 20.3mm width, and 10.2mm depth.
- Built-in short-circuit and overvoltage protection enhances safety and reliability.
- Remote On/Off control functionality for convenient switching.
- Isolation voltage rated at 1.6kV DC for secure operation.
- Designed for PCB mounting with a stable 1 output configuration.
- MTBF rated at 700,000 hours indicating long operational life.
Product Description
TRACOPOWER TEN 8-7213WI is a high-efficiency DC/DC converter designed for industrial and electronic applications requiring a stable 15V DC output at a current of 533mA. It accepts a wide input voltage range from 43V DC up to 160V DC, making it adaptable to various power supply conditions.
This unit features a compact DIP-24 through-hole package ensuring secure mounting on printed circuit boards (PCBs). With an efficiency of 86%, it minimizes power loss and heat generation, removing the need for external heatsinks even during continuous operation.
The converter operates reliably in harsh environments with a temperature tolerance spanning from minus 40 degrees Celsius to plus 85 degrees Celsius. Safety features include remote On/Off control, short-circuit and overvoltage protection, and a robust isolation voltage of 1.6kV DC ensuring safe and interference-free operation.
Typical industrial applications include metalworking facilities, rail industry equipment, and processing plants where durable and consistent DC power conversion is critical. Other technical highlights include a high mean time between failures (MTBF) of 700,000 hours and compliance with RoHS environmental directives.
High efficiency and reduced heat output. Wide input voltage flexibility from 43 to 160 V DC. Industrial temperature range for reliable use in harsh conditions. Remote On/Off control for operational convenience. Robust protective features against electrical faults.
Compact DIP-24 package for PCB mounting. Compliant with RoHS standards. Long lifecycle with high MTBF rating. Explore EnvMart's selection of TRACOPOWER DC/DC Converters and related power supply solutions for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with a maximum output current of 533mA.
It accepts a wide input voltage range from 43V DC to 160V DC, making it versatile for various applications.
The converter boasts an efficiency of 86%, which helps minimize heat dissipation during operation.
The compact DIP-24 package measures 32mm in length, 20.3mm in width, and 10.2mm in depth.
It can operate reliably in temperatures ranging from -40°C to 85°C, suitable for harsh industrial environments.
This model includes built-in short-circuit and overvoltage protection, as well as a robust isolation voltage rated at 1.6kV DC.
It is designed for PCB mounting, ensuring secure installation on printed circuit boards.
The MTBF is rated at 700,000 hours, indicating a long operational life for this device.
Yes, it features remote On/Off control functionality for convenient switching during operation.
It is compliant with RoHS environmental directives, ensuring it meets specific environmental standards.
Typical applications include metalworking facilities, rail industry equipment, and processing plants where stable DC power conversion is essential.
