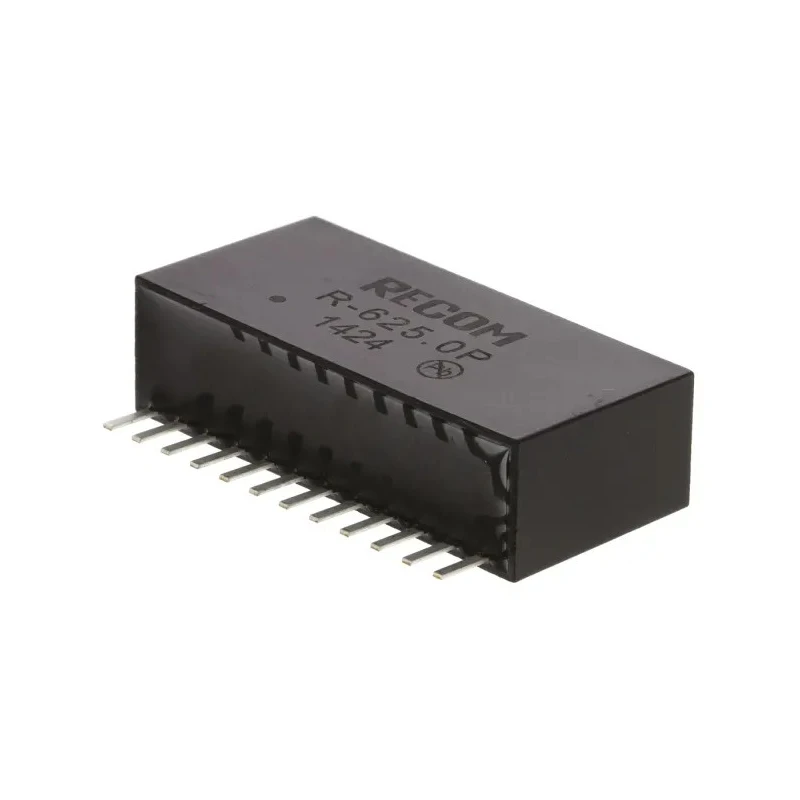

Recom DC/DC Converter 5V DC Output 2A 24V DC Input 9V, Through Hole SIP Package R-625.0P

Recom R-625.0P DC/DC Converter is engineered for precise and efficient voltage conversion providing a 5V DC output at 2A current from a 24V DC input source. The device is packaged in a SIP format and designed for through-hole mounting on printed circuit boards, making it well-suited for dense electronics assemblies.

This converter supports a broad input voltage range from 9V up to 24V DC, and an adjustable output voltage range between 1.8V and 9V DC, enabling compatibility with diverse electronic applications. It achieves a maximum output power rating of 18W while delivering an efficiency rating of 90%, reducing power wastes and enhancing energy savings in electrical systems.

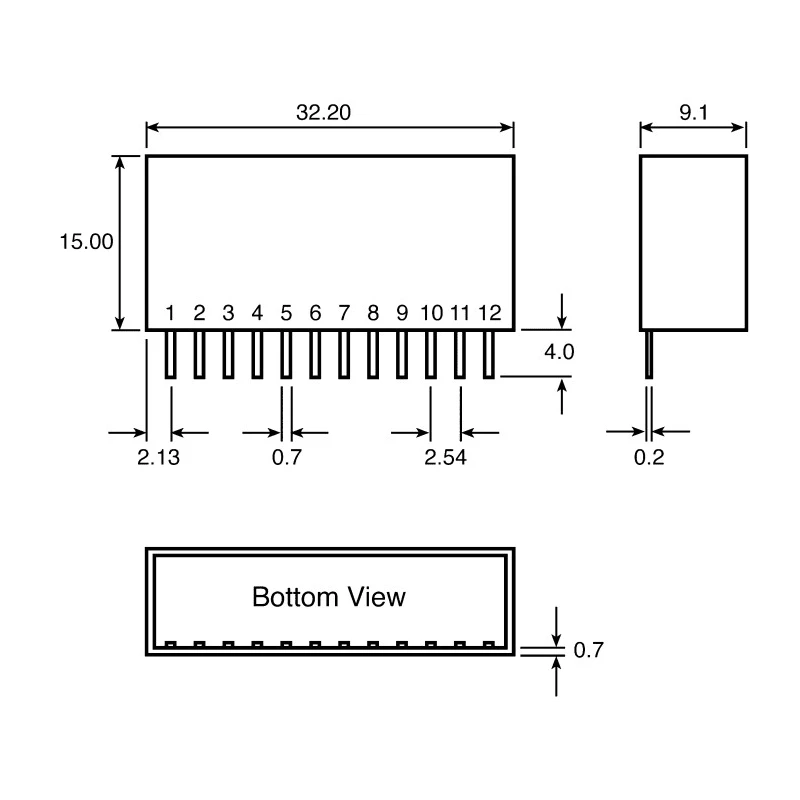

With compact dimensions of 32.2 mm length, 9.1 mm width, and 15 mm depth, the converter fits easily onto tightly packed PCB layouts. Its operating temperature range from -40 °C to +85 °C ensures reliable performance in harsh industrial, automotive, portable computing, and measuring equipment environments.

Built-in short-circuit protection safeguards the unit and connected devices against electrical faults. The converter maintains a low ripple and noise profile of only 120 mV peak-to-peak, essential for sensitive circuitry. A robust MTBF of 563,000 hours affirms long-term durability under continuous operation. This product meets RoHS compliance requirements, supporting eco-friendly electronics manufacturing.

Wide input voltage range between 9 and 24 V DC for broad compatibility. Adjustable output voltage range from 1.8V to 9V DC for versatility. 18W max output power with 90% efficient operation saves energy. Compact SIP package size allows space-efficient PCB mounting.

Operates reliably in temperature extremes from -40 °C to +85 °C. Protective short-circuit feature enhances system safety. Low ripple and noise of 120 mV peak-to-peak minimizes interference. Long MTBF of 563,000 hours for extended service life.

RoHS compliant for environmental and safety standards.

This Recom DC/DC Converter provides a dependable power solution for industrial, automotive, laboratory, and consumer electronics requiring stable voltage regulation. Its compact design and robust feature set make it ideal for improving power efficiency and device safety.
