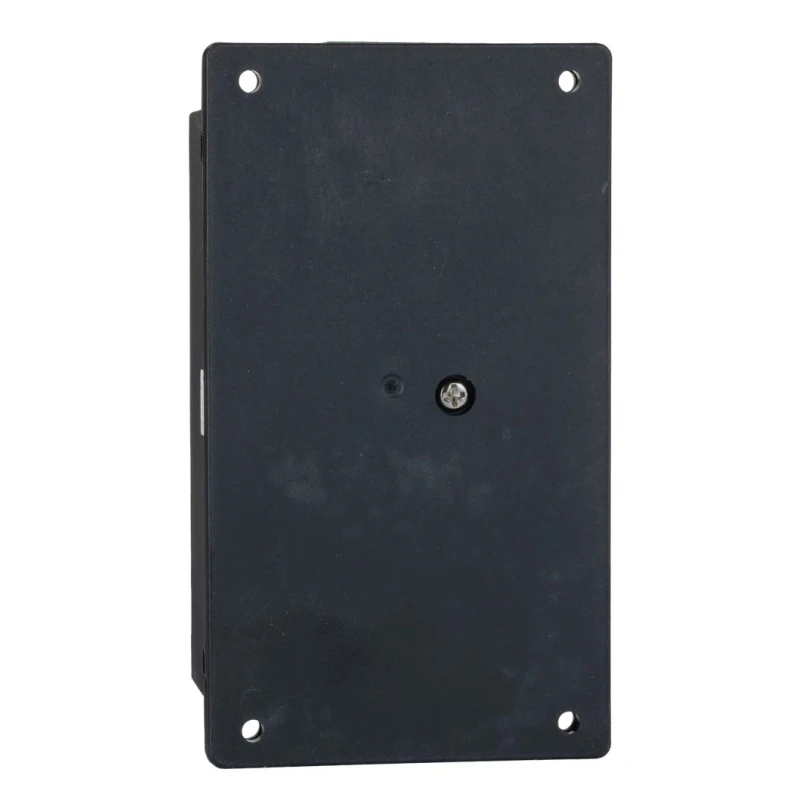

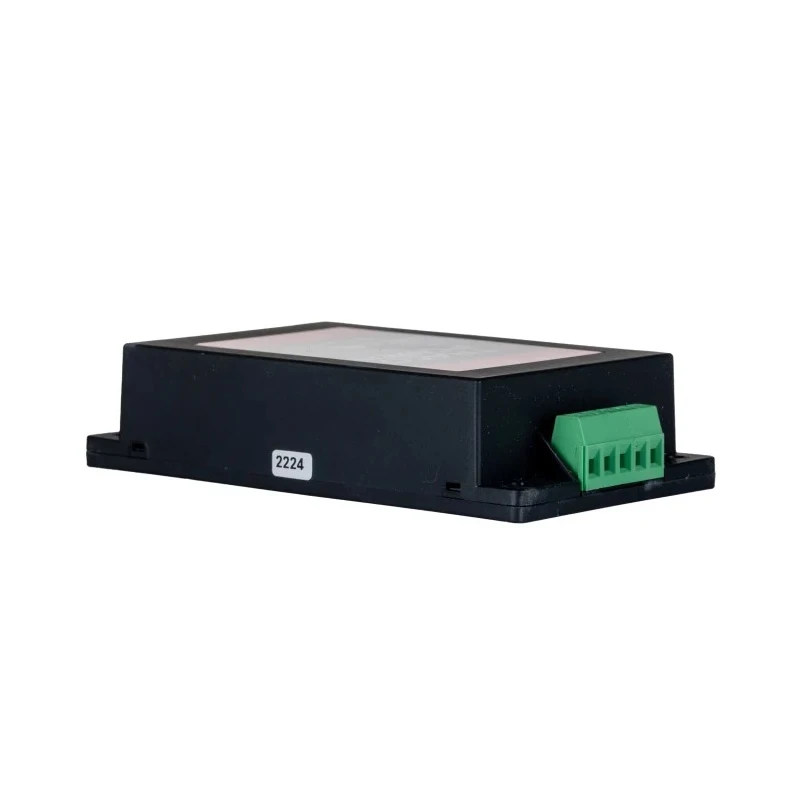

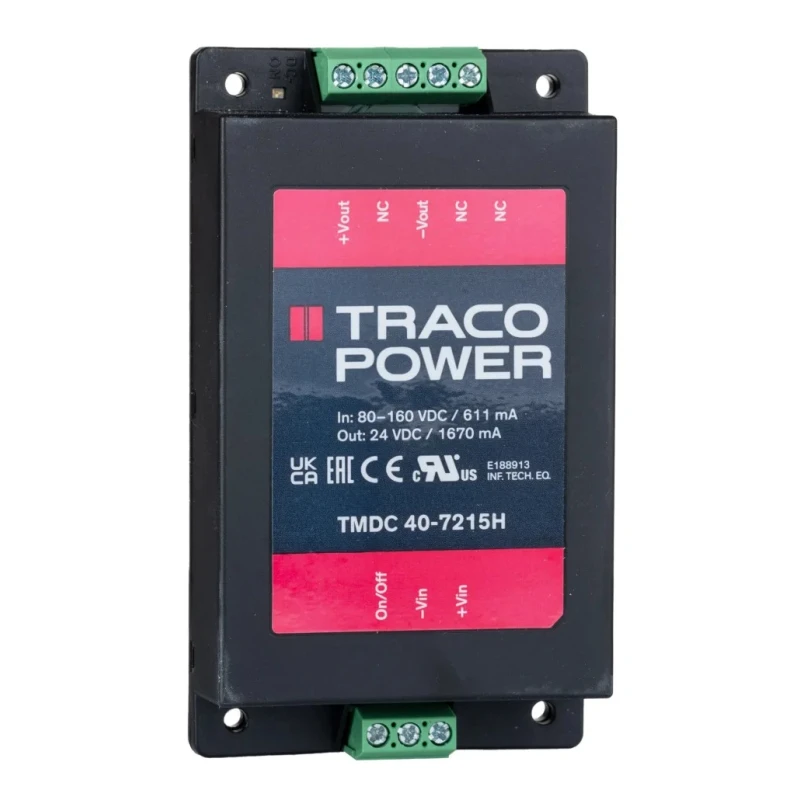

TRACOPOWER Isolated DC/DC Converter 24V Output, 80 to 160V DC Input, 1.67A, Chassis Mount, 40W, 75°C Max TMDC 40-7215H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 40H DC/DC Converter, 24V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 112mm |
| Model | TMDC 40-7215H |
| Depth | 25.6mm |
| Gross Weight | 162g |
| Width | 63.8mm |
| Mount Type | Chassis Mount |
| Series | TMDC 40H |
| Maximum Operating Temperature | 75°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 580000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 3kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Wide input voltage range from 80V to 160V DC for versatile applications.
- Stable 24V DC output with 1.67A current capability ensuring reliable power delivery.
- Compact chassis mount package measuring 112mm x 63.8mm x 25.6mm for easy installation.
- High efficiency of 89% optimizes energy consumption and reduces heat generation.
- Reinforced isolation voltage of 3kV DC for safe and reliable operation.
- Fully encapsulated design protects against environmental damage and improves durability.
- Overload and short circuit protection enhances system reliability and longevity.
- Wide operating temperature range from -40°C to 75°C accommodates demanding industrial uses.
Product Description
TRACOPOWER TMDC 40-7215H is an isolated DC/DC converter engineered to provide a stable 24V DC output from a wide input voltage range of 80V to 160V DC. Designed for industrial and commercial applications, this 40W converter features a compact chassis mount form factor measuring 112mm in length, 63.8mm in width, and 25.6mm in depth which simplifies integration into existing systems.
Achieving an efficiency of 89%, the TMDC 40-7215H minimizes power loss and heat generation, ensuring reliable performance under continuous operation. Its reinforced isolation voltage rating of 3kV DC provides safe electrical separation between input and output, critical for sensitive electronic equipment.
The converter incorporates comprehensive protections against overloads and short circuits, thereby enhancing system robustness. Its fully encapsulated packaging safeguards internal components against environmental contaminants, making it suitable for harsh industrial environments.
Operating reliably in temperatures from -40°C up to 75°C, this device is suitable for applications involving battery-powered systems, telecommunications infrastructure, and medical device power supplies that demand strict safety standards.
The TMDC 40-7215H's impressive Mean Time Between Failures (MTBF) of 580,000 hours further underscores its dependability for continuous industrial use. Installation is facilitated by its chassis mount design, enabling secure mechanical and electrical integration.
Wide input voltage range from 80V to 160V DC for versatile applications. Stable 24V DC output at 1.67A current for consistent power supply. Compact chassis mount form factor for straightforward system integration. High efficiency at 89% reduces power waste and thermal load.
Reinforced 3kV DC isolation voltage for safe electrical separation. Fully encapsulated design protects against environmental hazards. Built-in overload and short circuit protection enhances reliability. Operational temperature range from -40°C to 75°C supports harsh conditions.
Long MTBF of 580,000 hours ensures durability and reliability. Ideal for industrial, telecommunications, battery-powered, and medical device applications. Explore more innovative and reliable DC/DC Converters from TRACOPOWER and compare technical specifications to suit your industrial power conversion needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 80V to 160V DC.
This converter provides a stable output voltage of 24V DC with a current capability of 1.67A.
The maximum output power of the TMDC 40-7215H is 40W.
This model has an efficiency rating of 89%, optimizing energy consumption and reducing heat generation.
The dimensions of this unit are 112mm in length, 63.8mm in width, and 25.6mm in depth.
The isolation voltage of this converter is reinforced at 3kV DC, ensuring safe electrical separation.
This converter operates reliably in temperatures ranging from -40°C to 75°C.
This model features a chassis mount design for easy installation.
It includes built-in overload and short circuit protection to enhance reliability and system robustness.
The MTBF for the TMDC 40-7215H is 580,000 hours, indicating its reliability for continuous use.
This converter is suitable for industrial, telecommunications, battery-powered systems, and medical device applications.
The ripple and noise specification for the TMDC 40-7215H is 200mV Pk-Pk.
