STMicroelectronics 100 V 40 A Schottky Diode Through Hole TO-220AB Package STPS40M100CT

Free Delivery in India | Lowest Global Shipping Charges

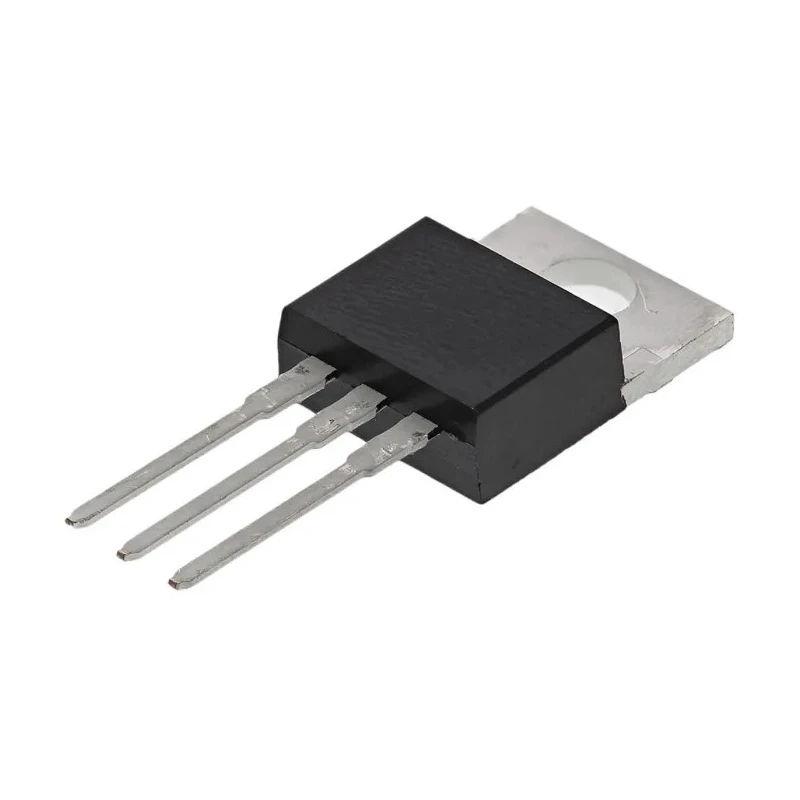

STMicroelectronics 100 V 40 A Schottky Diode Through Hole TO-220AB Package STPS40M100CT

Name: STMicroelectronics 100 V 40 A Schottky Diode Through Hole TO-220AB Package STPS40M100CT
Brand: STMicroelectronics
SKU: 379546
Price: 2.39 USD
Availability: InStock



Category Semiconductor Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	15.75mm
Length	10.4mm
Model	STPS40M100CT
Width	4.6mm
Mount Type	Through Hole
Series	STPS40M100C
Maximum Operating Temperature	150°C
Package Type	TO-220AB
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Continuous Forward Current If	40A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	70mA
Peak Non-Repetitive Forward Surge Current Ifsm	530A
Maximum Forward Voltage Vf	780mV
- Capacitance	45 pF

Key Features

Maximum continuous forward current rating of 40 amperes.
Peak reverse repetitive voltage of 100 volts for robust performance.
Common cathode diode configuration with low forward voltage drop of 780 mV.
Operates within temperature range of -65°C to 150°C.
Insulated TO-220AB ISOTOP package rated at 2500 VRMS.
Peak non-repetitive forward surge current capability of 530 amperes.
Negligible switching losses and low leakage current.

Product Description

STMicroelectronics STPS40M100CT is a high voltage Schottky diode designed primarily for use in high frequency switch mode power supply applications. This diode features a robust through-hole TO-220AB package that is insulated (ISOTOP) providing an insulated voltage rating of 2500 VRMS and low capacitance of 45 pF, suitable for sensitive electronic circuits.

With a maximum continuous forward current of 40A and a peak reverse repetitive voltage of 100V, the STPS40M100CT delivers reliable and efficient rectification with a low forward voltage drop of 780 mV. It supports a peak non-repetitive forward surge current of 530A, making it capable of handling transient power spikes without damage.

The diode configuration is common cathode and it has 3 pins, suitable for through-hole mounting, offering easy integration into various electronic assemblies. Operating temperature range from -65°C to 150°C allows it to function reliably in harsh industrial and automotive environments.

Key advantages of this device include negligible switching losses, a good trade-off between leakage current and forward voltage drop, and an insulated package providing both safety and performance. It is ideal for use in secondary rectification within power conversion, industrial machinery, automotive electronics, and general electronics manufacturing applications.

Maximum continuous forward current of 40A at 100V reverse voltage. 3-pin common cathode diode configuration. Insulated TO-220AB ISOTOP package rated for 2500 VRMS. Low forward voltage drop of 780 mV for energy efficiency.

Operating temperature from -65°C up to 150°C. Capacitance of 45 pF suitable for high-frequency operations. Peak reverse current of 70 mA ensuring minimal leakage. Dimensions: Height 15.75 mm, Length 10.4 mm, Width 4.6 mm.

This STMicroelectronics diode is manufactured to new condition standards, supporting industrial and commercial applications that require high speed, low loss rectification components.

Explore the extensive range of Semiconductor Diodes and components available at EnvMart for your electronic design, manufacturing, and repair needs.
