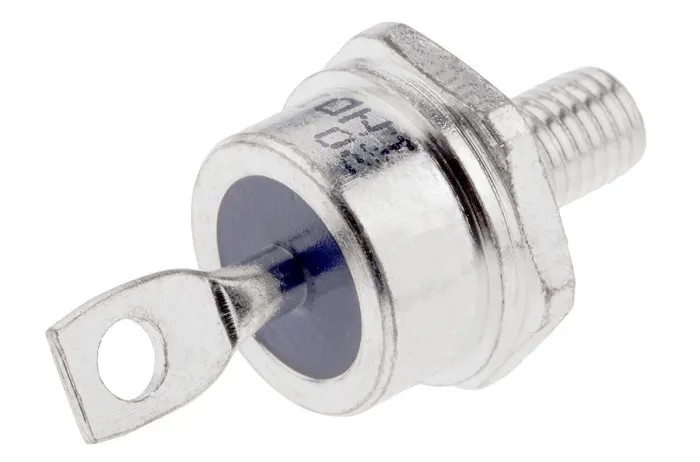

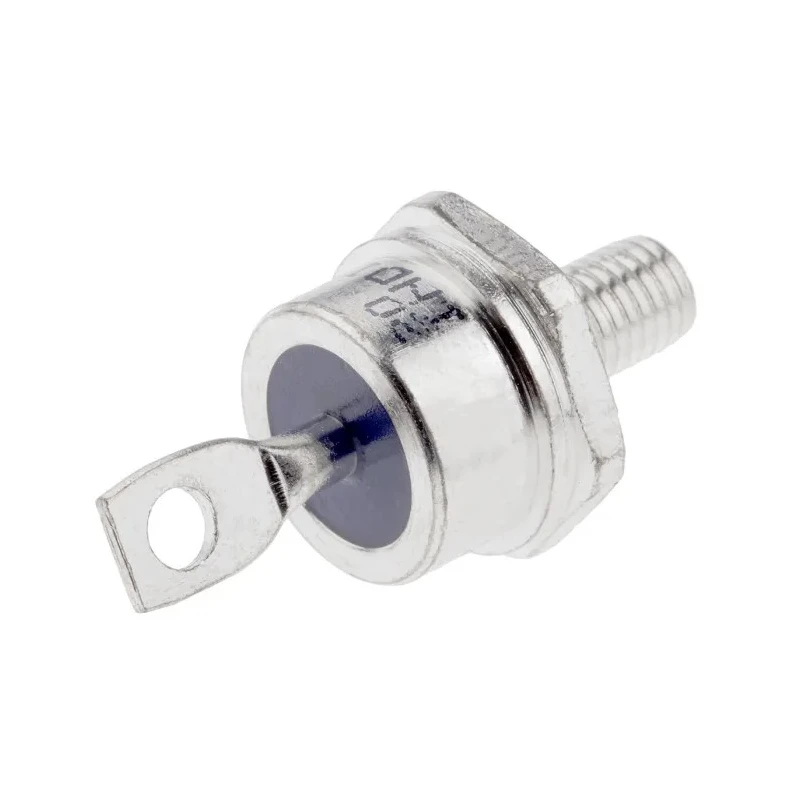

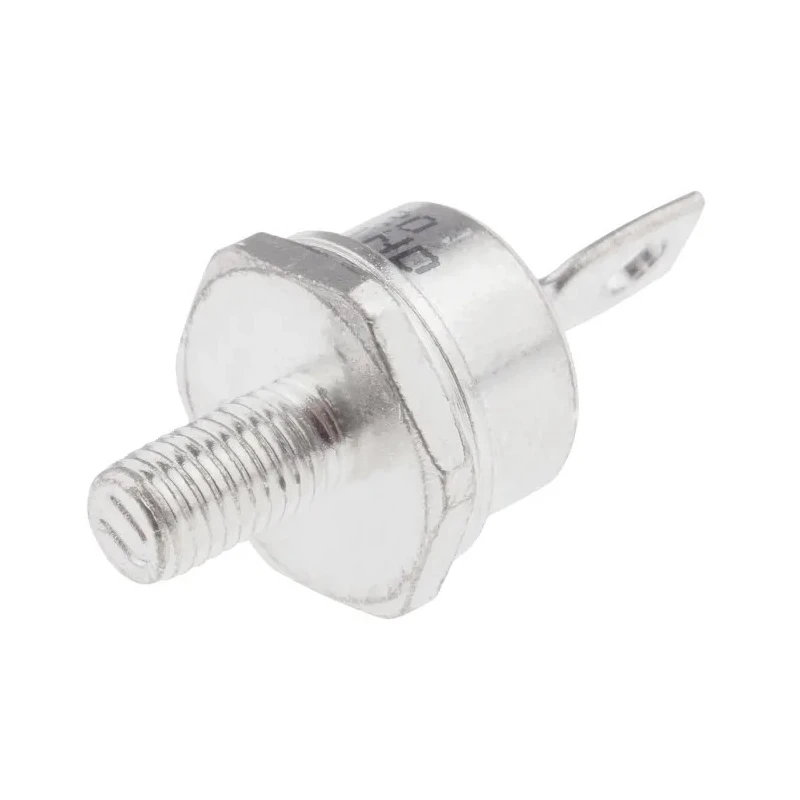

Vishay 1200 V 85 A Switching Diode Screw Mount DO-203AB VS-85HF120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.35mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-85HF120 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-85HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.8kA |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 1200 V 85 A Diode Recovery 2-Pin DO-5Brand | Vishay |
Key Features
- Supports a maximum continuous forward current of 85 A for heavy-load applications.
- Designed with a peak reverse repetitive voltage of 1200 V providing robust voltage tolerance.
- Features a compact DO-203AB package with screw mount for secure installation.
- Equipped with stud cathode diode configuration optimized for switching operations.
- Operates reliably between -65°C to 180°C for demanding industrial environments.
- Peak non-repetitive forward surge current rating of 1.8 kA ensures protection during transient events.
- Low maximum forward voltage drop of 1.2 V enhances energy efficiency.
- Compliant with RoHS standards ensuring eco-friendly manufacturing.
Product Description
Vishay VS-85HF120 is a high-performance switching diode designed for industrial and electronic applications requiring robust switching capabilities. It features a screw mount DO-203AB package with stud cathode configuration, optimized for versatile and high-efficiency usage.
Rated for a maximum continuous forward current of 85 A and a peak reverse repetitive voltage of 1200 V, the diode withstands wide voltage and current ranges with excellent reliability. It operates within a temperature range from -65°C to 180°C, suitable for harsh operational environments.
The diode’s peak non-repetitive forward surge current of 1.8 kA offers excellent protection against current surges and transients common in power electronics. The maximum forward voltage drop of 1.2 V ensures minimal power loss and high efficiency in switch-mode power supplies, industrial machinery, and power rectification systems.
Compliance with RoHS standards affirms this diode’s adherence to environmentally responsible manufacturing processes. Its compact dimensions and screw mount facilitate easy integration into various power and electronic circuits.
Supports a maximum continuous forward current of 85 A for heavy-load applications. Designed with a peak reverse repetitive voltage of 1200 V providing robust voltage tolerance. Features a compact DO-203AB package with screw mount for secure installation.
Equipped with stud cathode diode configuration optimized for switching operations. Operates reliably between -65°C to 180°C for demanding industrial environments. Peak non-repetitive forward surge current rating of 1.8 kA ensures protection during transient events.
Low maximum forward voltage drop of 1.2 V enhances energy efficiency. Compliant with RoHS standards ensuring eco-friendly manufacturing. Compact dimensions with length 20.02 mm, width 17.35 mm, and height 22.9 mm for space-saving designs.
This diode is ideal for electronic engineers and industrial users involved in power conversion, rectification, and switching applications across sectors including manufacturing, automation, and power electronics.
Explore more high-quality semiconductors and Switching Diodes at EnvMart for reliable, efficient electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 85 A, making it suitable for heavy-load applications.
It has a peak reverse repetitive voltage rating of 1200 V, providing robust voltage tolerance for various applications.
This diode operates reliably between -65°C to 180°C, making it suitable for demanding industrial environments.
It features a stud cathode diode configuration, which is optimized for switching operations.
The maximum forward voltage drop is 1.2 V, which enhances energy efficiency in applications.
The peak non-repetitive forward surge current rating is 1.8 kA, providing protection during transient events.
This model comes in a compact DO-203AB package, designed for screw mounting to ensure secure installation.
The dimensions of this diode are 20.02 mm in length, 17.35 mm in width, and 22.9 mm in height.
Yes, it is compliant with RoHS standards, ensuring environmentally responsible manufacturing processes.
This diode is suitable for power conversion, rectification, and switching applications across various sectors including manufacturing and automation.
This diode has a pin count of 2, which is typical for its configuration.
The country of origin for this model is India.
