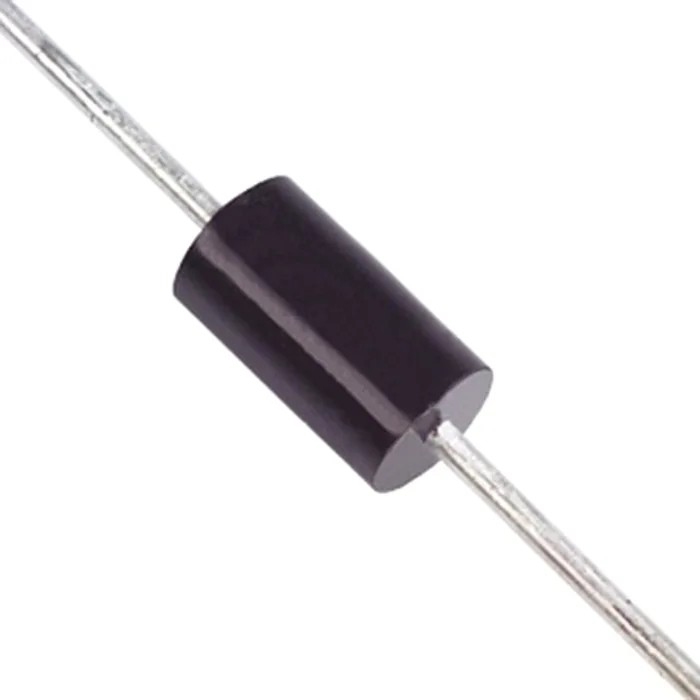

STMicroelectronics 200 V 3 A Switching Rectifier Diode Through Hole 2-Pin DO-201AD STTH302RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | STTH302RL |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | STTH302 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A |
| Maximum Forward Voltage Vf | 950mV |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- Maximum continuous forward current of 3 A ensures reliable operation.
- Peak reverse repetitive voltage of 200 V provides robust voltage tolerance.
- Fast peak reverse recovery time of 35 ns improves switching efficiency.
- Maximum forward voltage of 950 mV reduces conduction losses.
- Wide operating temperature range from -65°C to 175°C for harsh environments.
- Compact dimensions with 5.3 mm diameter and height, and 9.5 mm length.
- Single diode configuration in a 2-pin DO-201AD package for easy integration.
- Peak non-repetitive forward surge current rating of 130 A for transient handling.
Product Description
STMicroelectronics STTH302RL is a high-performance switching rectifier diode designed for power and electronic applications requiring reliable diode switching capabilities.
Encapsulated in a DO-201AD through-hole package, this single diode device supports a maximum continuous forward current of 3 A and can withstand peak reverse repetitive voltages up to 200 V. Its compact size with standard 5.3 mm diameter and height, alongside a length of 9.5 mm, makes it suitable for integration into dense circuit layouts.
The diode features a fast peak reverse recovery time of 35 ns, making it ideal for high-frequency switching applications to minimize power losses. With a maximum forward voltage of 950 mV, it delivers efficient conduction, which is essential for power rectification.
Its operational temperature range from -65°C to 175°C ensures durability in extreme industrial and commercial environments. The device offers a peak non-repetitive forward surge current of 130 A, granting robustness against transient overloads.
The STTH302RL diode is RoHS-compliant, reinforcing its suitability for environmentally conscious manufacturing processes. Commonly deployed in electronic circuits, power supplies, automotive electronics, and other industrial automation applications, it provides efficient, reliable switching performance.
Maximum continuous forward current of 3 A for reliable power handling. Peak reverse repetitive voltage rating of 200 V ensures voltage endurance. Fast recovery time of 35 ns reduces switching losses. Compact DO-201AD package suitable for through-hole mounting.
Wide operating temperature supports harsh industrial conditions. High surge current capability protects against transient damage. Compliance with RoHS for environmental safety. Small form factor aids integration into compact circuits.
Single diode, 2-pin configuration for standard applications. Designed for switching rectifier use in a broad range of electronics. Explore more Semiconductor Diodes and switching rectifier components at EnvMart for industrial, electronic, and power management applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 3 A, ensuring reliable operation in various applications.
This diode has a peak reverse repetitive voltage rating of 200 V, providing robust voltage tolerance for reliable performance.
The peak reverse recovery time for this diode is 35 ns, which enhances switching efficiency in high-frequency applications.
This model has a diameter and height of 5.3 mm, and a length of 9.5 mm, making it compact for integration into dense circuit layouts.
The maximum forward voltage of the STTH302RL is 950 mV, which helps reduce conduction losses during operation.
It operates within a wide temperature range from -65°C to 175°C, suitable for harsh industrial environments.
The peak non-repetitive forward surge current rating for this model is 130 A, providing resilience against transient overloads.
This diode is designed for through-hole mounting, encapsulated in a DO-201AD package for easy integration.
Yes, the STTH302RL is RoHS-compliant, making it suitable for environmentally conscious manufacturing processes.
It features a single diode configuration with a 2-pin setup, which is standard for many applications.
This diode is commonly deployed in electronic circuits, power supplies, automotive electronics, and industrial automation applications.
The peak reverse current for the STTH302RL is 3 μA, indicating low leakage during reverse bias conditions.
