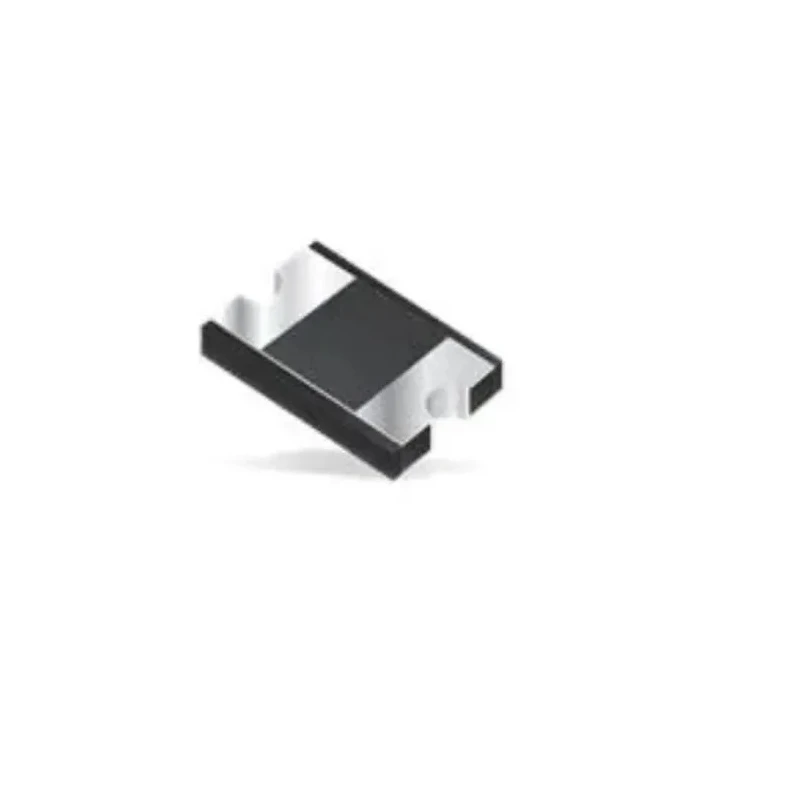

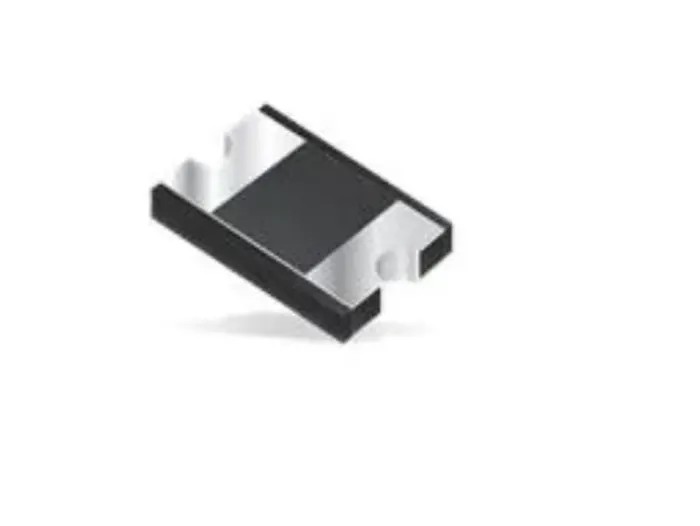

Bourns Rectifier Diode 600V 3A DO-214AA CD214B-S3J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 5.2mm |
| Model | CD214B-S3J |
| Width | 3.6mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 96A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Designed for general rectification applications in electronic circuits.
- 600 V peak reverse repetitive voltage for robust protection.
- Rated for 3 A continuous forward current for high power handling.
- Glass passivated chip for reliability and efficiency.
- Low profile DO-214AA (SMB) package suitable for compact PCB design.
- AEC-Q101 automotive standard compliant for rigorous applications.
- Maximum operating temperature up to 175°C allows versatile use.
- Peak non-repetitive forward surge current 96 A for transient resilience.
Product Description
Bourns CD214B-S3J is a 600V, 3A glass passivated rectifier diode in a DO-214AA (SMB) surface mount package, engineered for industrial, automotive, and electronic rectification applications. Manufactured with high-quality materials and compliant with AEC-Q101 automotive standards, this diode supports rigorous environments, offering robust voltage protection and consistent operation.
The CD214B-S3J enables rectification and protection of circuits against high voltages and surge currents. With a peak reverse repetitive voltage of 600V and maximum continuous forward current of 3A, it is ideal for power supplies, motor drives, and switching circuits used in industrial manufacturing, commercial electronics, and automotive systems.
Its glass passivated chip design improves reliability and efficiency, minimizing forward power loss and maximizing electrical performance. The compact DO-214AA package ensures easy soldering and integration on PCB layouts, especially where space conservation is crucial.
Rated for operation from -65°C to 175°C, meeting high and low temperature requirements. Supports a surge current up to 96A, safeguarding equipment during power transients. Low profile and halogen-free construction for environmentally conscious designs.
UL 94V-0 rating supports flame retardance in sensitive applications. Versatile for use in industrial electronics, laboratory power conversion, HVAC controls, and commercial automation.
Electrical characteristics include a maximum forward voltage of 1V, peak reverse current of 5μA, and a pin count of 2, supporting single diode configurations. Dimensions: length 5.2mm, width 3.6mm, height 1.2mm. The series belongs to CD214, renowned for reliable rectification and protection.
Applications span power supplies, battery management, industrial automation, automotive electronic control units (ECUs), laboratory instrumentation, and commercial equipment. Browse more Bourns rectifier diodes and Schottky Diodes & Rectifiers at EnvMart for performance-driven solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Bourns CD214B-S3J is 600V, providing robust protection for electronic circuits.
This model is rated for a maximum continuous forward current of 3A, allowing for high power handling in various applications.
The diode comes in a DO-214AA (SMB) surface mount package, which is suitable for compact PCB designs.
The maximum operating temperature for the CD214B-S3J is 175°C, making it versatile for various environments.
The dimensions of this model are 5.2mm in length, 3.6mm in width, and 1.2mm in height.
It has a peak non-repetitive forward surge current rating of 96A, which helps safeguard against transient events.
The minimum operating temperature is -65°C, allowing for operation in extreme conditions.
The maximum forward voltage for this rectifier diode is 1V, which is important for efficiency in circuit design.
This model complies with the AEC-Q101 automotive standard, ensuring its reliability in automotive applications.
The CD214B-S3J supports a single diode configuration, suitable for various rectification applications.
The peak reverse current for this model is 5μA, indicating low leakage during operation.
This rectifier diode is suitable for applications such as power supplies, motor drives, and automotive electronic control units (ECUs).
