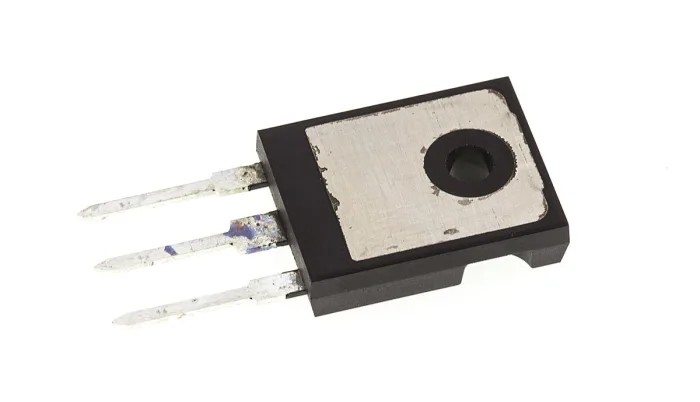

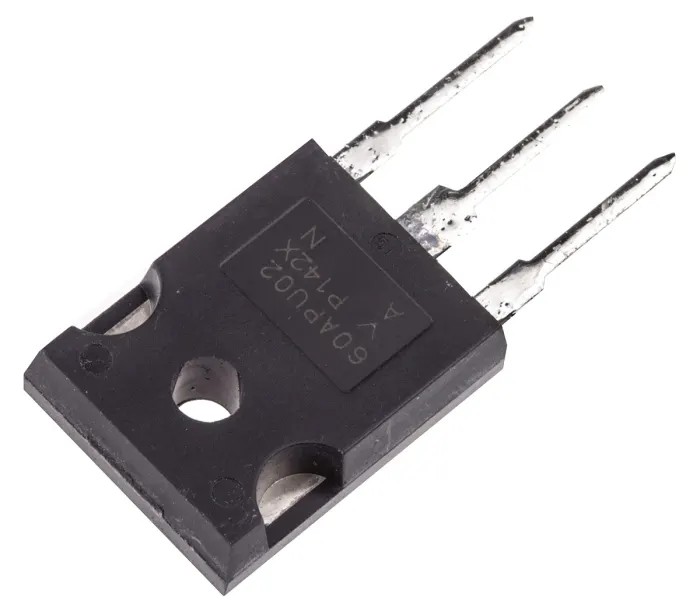

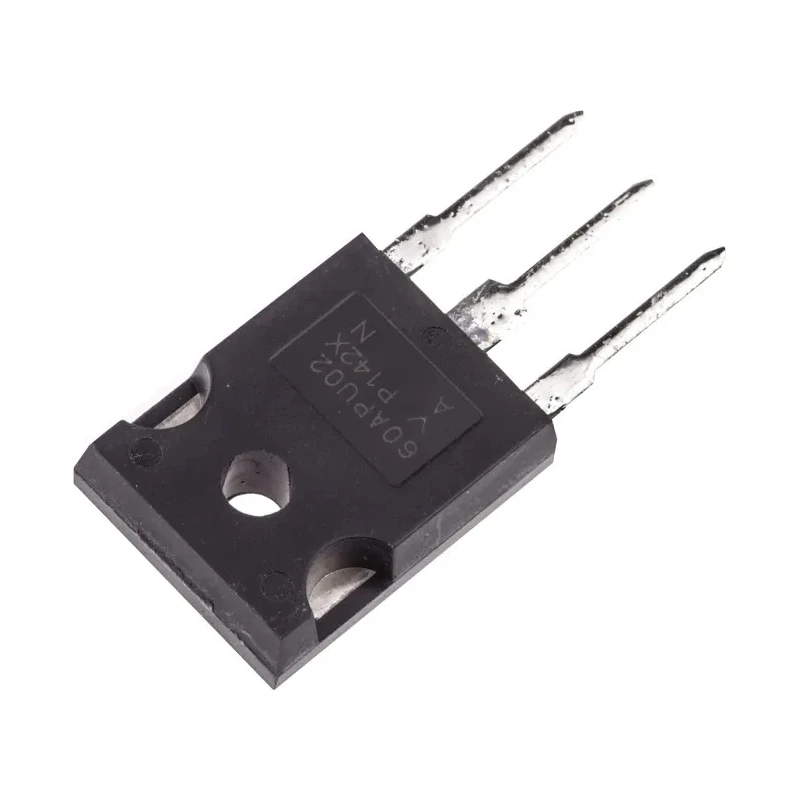

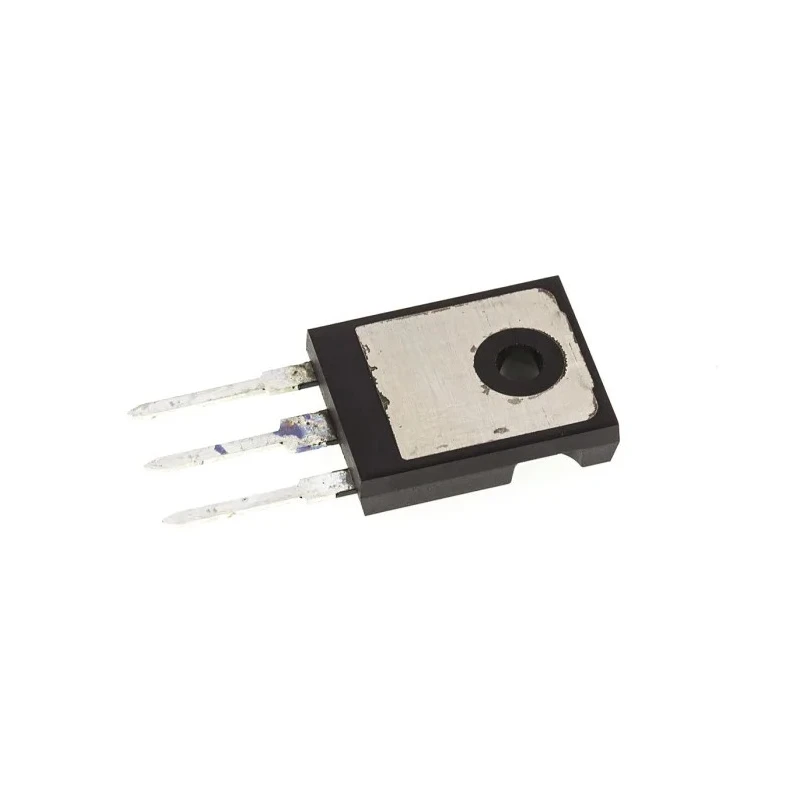

Vishay 200 V 60 A Switching Diode 3-Pin TO-247AC VS-60APU02-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-60APU02-N3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-60 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 800A |
| Maximum Forward Voltage Vf | 1.08V |
| Peak Reverse Recovery Time trr | 35ns |
| Vishay 200V 60A, Silicon Junction Diode, 3-Pin TO-247AC 60APU02Brand | Vishay |
Key Features
- Operates continuously with a forward current of 60 A.
- Handles peak reverse repetitive voltage up to 200 V.
- Features a peak non-repetitive forward surge current of 800 A.
- Offers a maximum forward voltage drop of 1.08 V.
- Designed with a fast reverse recovery time of 35 ns.
- Temperature range from -55°C to 175°C.
- Compact TO-247AC 3-pin package.
- Low peak reverse current of 50 μA.
Product Description
Vishay VS-60APU02-N3 is a high-performance switching diode intended for power electronic and semiconductor applications where reliable and efficient current switching is vital.
This device is housed in a through-hole TO-247AC package with 3 pins, making it suitable for industrial power supply systems, motor drives, rectification circuits, and fast recovery operations in electronic components.
It supports a maximum continuous forward current of 60 A with a peak reverse voltage rating of 200 V, which enables it to withstand moderate voltage and high current situations efficiently.
The maximum forward voltage of 1.08 V helps reduce power loss and improve conduction efficiency under load conditions. The ultrafast recovery time of 35 nanoseconds ensures minimal switching losses in high-frequency circuits.
Operating temperature ranges from -55°C to 175°C allow the diode to function effectively under demanding environmental conditions.
The diode's physical size is compact, with a height and diameter of 20.7 mm, length of 15.87 mm, and a width of 5.31 mm, suitable for mounting in various electrical equipment and power modules.
Although lacking specific certifications or automotive ratings, the diode offers high reliability for industrial, laboratory, and electronic manufacturing uses, including power conversion, rectification, and fast switching applications.
Operates continuously with a forward current of 60 A. Handles peak reverse repetitive voltage up to 200 V. Features a peak non-repetitive forward surge current of 800 A. Offers a maximum forward voltage drop of 1.08 V. Designed with a fast reverse recovery time of 35 ns.
Temperature range from -55°C to 175°C. Compact TO-247AC 3-pin package. Low peak reverse current of 50 μA. No automotive standard compliance.
For professionals looking for reliable switching diodes in power electronics, the Vishay VS-60APU02-N3 is a robust choice, designed for efficiency and endurance in industrial and laboratory environments.
Explore more power semiconductor components and Switching Diodes in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-60APU02-N3 is 60 A.
This model has a peak reverse repetitive voltage rating of 200 V.
The diode can handle a peak non-repetitive forward surge current of 800 A.
The maximum forward voltage drop for this diode is 1.08 V.
It features a fast reverse recovery time of 35 ns.
The operating temperature range for this model is from -55°C to 175°C.
The diode has a height and diameter of 20.7 mm, a length of 15.87 mm, and a width of 5.31 mm.
This diode is housed in a TO-247AC package with 3 pins.
The pin count for the Vishay VS-60APU02-N3 is 3.
The peak reverse current for this model is 50 μA.
It uses a single diode configuration.
The country of origin for the Vishay VS-60APU02-N3 is India.
