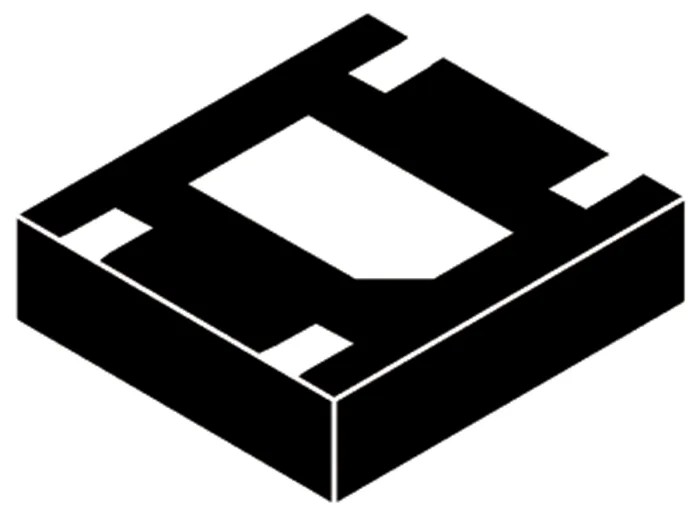

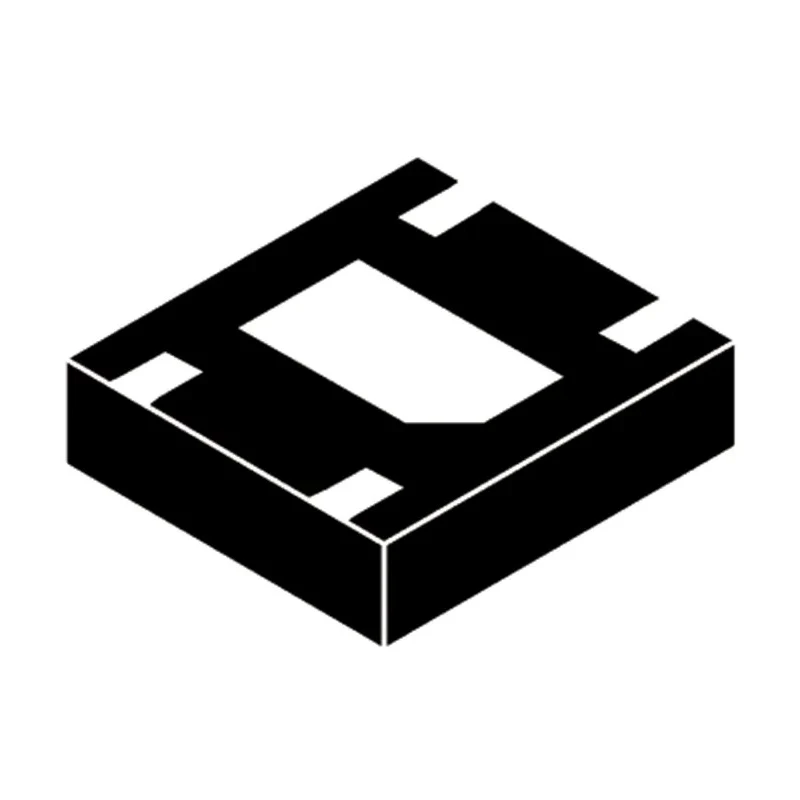

DiodesZetex Surface Mount Hall Effect Sensor X1-DFN 4-Pin 1.6V - 3.6V Supply AH1903-FA-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Response time | 50μs |
| Height | 480μm |
| Length | 1.65mm |
| Model | AH1903-FA-7 |
| Technology | Chopper Stabilised Hall Effect |
| Sensor Type | Hall Effect Sensors |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | AH1903 |
| Maximum Operating Temperature | 85°C |
| Package Type | X1-DFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.6V |
| Supply Current | 4.3μA |
| Magnetic Type | Omnipolar |
Key Features
- Utilizes chopper stabilized Hall Effect technology for accurate sensing.
- Omnipolar magnetic sensing enables detection of both magnetic polarities.
- Compact surface mount X1-DFN package measures 1.65mm length, 1.25mm width, and 480μm height.
- Operates reliably from -40°C to 85°C ambient temperature range.
- Low supply current consumption of 4.3μA helps reduce power usage.
- Response time of 50μs suitable for fast switching applications.
- Ideal for non-contact switching and proximity sensing in automotive, industrial, and electronic devices.
- Lead-free, RoHS compliant with manufacturing origin in China.
Product Description
DiodesZetex AH1903-FA-7 is a surface mount Hall Effect sensor designed for precision and reliability in electronic sensing applications. This device features chopper stabilized Hall Effect technology to provide stable and accurate switching responses to magnetic fields. It is enclosed in a compact 4-pin X1-DFN package, measuring 1.65mm in length, 1.25mm in width, and 480μm in height, making it suitable for space-constrained PCB layouts.
The sensor operates across a supply voltage range of 1.6 V to 3.6 V, allowing compatibility with low voltage digital circuits. It detects omnipolar magnetic fields, enabling it to respond to either polarity of magnets, making it versatile for a wide range of magnetic sensing needs. The device sustains reliable operation under a broad temperature range of -40°C to 85°C, suitable for demanding industrial and automotive environments.
With a supply current of only 4.3μA, the AH1903-FA-7 sensor helps minimize total system power consumption. A rapid response time of 50 microseconds allows it to quickly react to changing magnetic conditions, which is essential for motion detection, position sensing, and switching applications.
This Hall Effect sensor is RoHS-compliant and lead-free, assuring adherence to environmental standards. It is manufactured in China under strict quality controls. Utilizes chopper stabilized Hall Effect technology for accurate sensing.
Omnipolar magnetic sensing detects both north and south poles. Compact 4-pin X1-DFN surface mount package suitable for modern electronics. Wide operating temperature range from -40°C to 85°C ensures robust performance. Low power consumption with only 4.3μA supply current.
Fast 50μs response time ideal for dynamic switching applications. Lead-free and RoHS certified for environmental compliance. Ideal for automotive, industrial, and electronic equipment requiring contactless magnetic sensing.
Explore more sensors and electronic components at EnvMart to enhance your projects and production capabilities.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 1.6V to 3.6V, making it compatible with low voltage digital circuits.
The response time of the AH1903-FA-7 is 50 microseconds, which is suitable for fast switching applications.
The compact surface mount X1-DFN package measures 1.65mm in length, 1.25mm in width, and 480μm in height.
It operates reliably within a temperature range of -40°C to 85°C, suitable for demanding environments.
The sensor utilizes omnipolar magnetic sensing technology, allowing it to detect both north and south magnetic poles.
The AH1903-FA-7 has a low supply current consumption of 4.3μA, which helps reduce overall power usage.
Yes, this Hall Effect sensor is lead-free and RoHS compliant, ensuring adherence to environmental standards.
This sensor is designed for surface mounting, making it suitable for modern electronic applications.
It is ideal for non-contact switching and proximity sensing in automotive, industrial, and electronic devices.
This model utilizes chopper stabilized Hall Effect technology for accurate sensing and stable responses to magnetic fields.
The sensor features a 4-pin configuration, which is standard for its compact design.
It is manufactured in China under strict quality controls, ensuring reliable performance.
