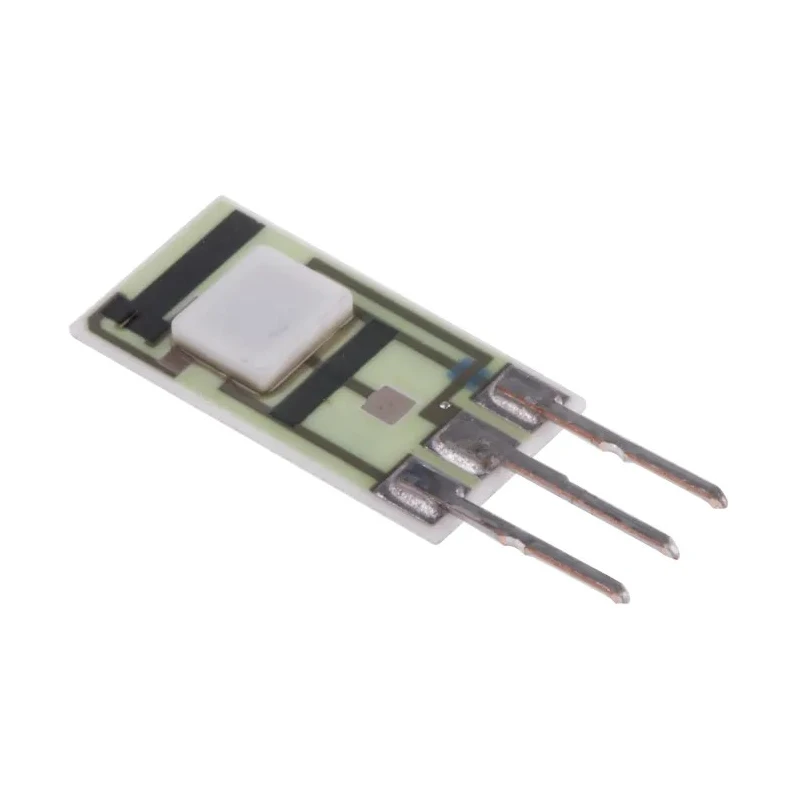

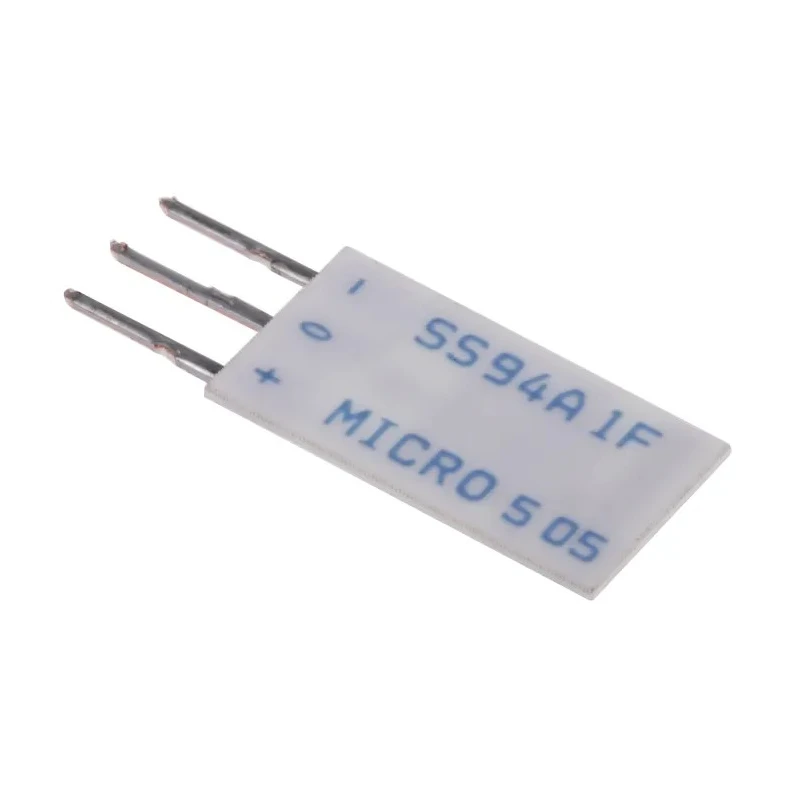

Honeywell Hall Effect Sensor Through Hole, Ratiometric Output, Flat Body, 12.6 V dc, 2mA Switching Current SS94A1F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Length | 7.62mm |
| Model | SS94A1F |
| Depth | 1.78mm |
| Width | 15.24mm |
| Mount Type | Through Hole |
| Output type | Ratiometric |
| Series | SS94A |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2mA |
| Terminal type | PCB Terminal |
| Body Style | Flat |
| Maximum dc Voltage | 12.6V dc |
| Standards/Approvals | RoHS |
Key Features
- Operates over a temperature range from -40°C to 125°C.
- Provides a 2mA switching current suitable for sensitive electronic applications.
- Features a flat body style with PCB terminal type for through-hole mounting.
- Compact dimensions of 7.62mm length, 15.24mm width, and 1.78mm depth ensure easy integration.
- Complies with RoHS standards for environmentally friendly manufacturing.
- Laser trimmed thin and thick film resistors enhance performance stability.
- Designed for use in industrial, automation, electronics, and control systems.
- Three-pin in-line PCB terminals with 0.1 inch spacing for reliable electrical connections.
Product Description
Honeywell SS94A1F Hall Effect Sensor Through Hole is a ceramic-based, linear Hall-effect device that outputs a voltage proportional to the magnetic field intensity it detects. Operated with a maximum supply voltage of 12.6 V dc and supporting a switching current of 2mA, this sensor provides precise and reliable magnetic sensing for various electronic and industrial applications.
This sensor features a flat body style with PCB terminal mounting and is designed for through-hole installation with three-pin in-line PCB terminals spaced at 0.1 inch for secure mounting and connectivity. Its compact form factor with dimensions of 7.62 mm length, 15.24 mm width, and 1.78 mm depth allows easy integration into tight spaces.
Operating within a temperature range of -40°C to 125°C, the SS94A1F sensor is suitable for demanding environments. Compliance with RoHS directives ensures environmentally safe manufacturing. The device uses laser trimmed thin and thick film resistors to maintain performance consistency across operating conditions.
Typical applications include industrial automation, electronic controls, magnetic field measurement, and machinery monitoring where ratiometric output is needed. The sensor’s performance and form factor make it ideal for circuit board mounting and integration within control devices.
Operates between -40°C and 125°C ambient temperatures. Ratiometric output voltage proportional to magnetic field strength. Flat body design with PCB terminal and through hole mounting. Compact size suitable for tight electronic assemblies.
RoHS compliant to meet environmental standards. Laser trimmed resistors provide accuracy and stability. Three-pin in-line terminals with 0.1 inch spacing. Supports 12.6 V dc maximum supply voltage and 2mA switching current.
Ideal for industrial, laboratory, automation, and electronic control applications.
This Honeywell Hall Effect Sensor SS94A1F is part of the trusted SS94A series, widely used in automation and control gear. Browse other Hall Effect Sensors and related automation components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Honeywell SS94A1F sensor is 125°C.
This model provides a ratiometric output, which is proportional to the magnetic field intensity it detects.
The SS94A1F sensor supports a switching current of 2mA.
The dimensions of this sensor are 7.62mm in length, 15.24mm in width, and 1.78mm in depth.
It uses through-hole mounting with three-pin in-line PCB terminals.
The minimum operating temperature for the Honeywell SS94A1F sensor is -40°C.
Yes, the SS94A1F sensor complies with RoHS standards for environmentally friendly manufacturing.
The body style of this sensor is flat, designed for easy integration into electronic assemblies.
This sensor is suitable for applications in industrial automation, electronic controls, magnetic field measurement, and machinery monitoring.
The maximum DC voltage for the SS94A1F sensor is 12.6V.
It features PCB terminals with a spacing of 0.1 inch for reliable electrical connections.
The SS94A1F sensor is part of the SS94 series of Hall Effect sensors from Honeywell.
