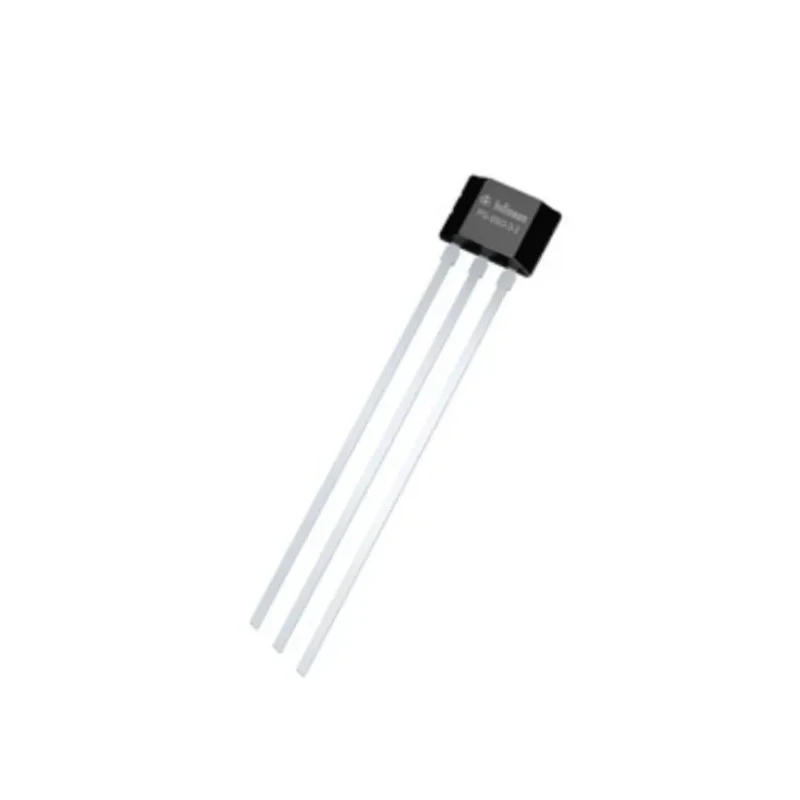

Infineon Hall Effect Sensor Through Hole, Open Drain Output, Block Body, 32 V DC, High Temperature TLE49613LHALA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Length | 4.16mm |
| Model | TLE49613LHALA1 |
| Depth | 1.52mm |
| Width | 3.29mm |
| Mount Type | Through Hole |
| Output type | Open Drain |
| Series | TLE |
| Maximum Operating Temperature | 170°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Body Style | Block |
| Maximum dc Voltage | 32V dc |
| Standards/Approvals | AEC Qualified, RoHS |
| Maximum AC Voltage | 32V ac |
| Maximum Supply Voltage | 32V |
Key Features
- Compact Hall effect sensor designed for non-contact magnetic field measurement.
- Open-drain output enables easy digital level switching.
- Equipped with built-in reverse-polarity protection to prevent supply damage.
- Supports maximum supply voltage of 32 V suitable for automotive and industrial use.
- Operates reliably from -40°C to 170°C for harsh conditions.
- Block style body with screw terminals ensures secure electrical connection.
- Intended for through-hole mounting on conventional PCB assemblies.
- Ideal for position sensing in vehicle systems and power electronics applications.
Product Description
Infineon TLE49613LHALA1 Hall Effect Sensor is a high-quality sensor designed for accurate magnetic field measurement in industrial and automotive applications. This sensor features a block body with screw terminals for robust and secure electrical connections, supporting through-hole PCB mounting.
Operating with a maximum supply voltage of 32 V DC and an open-drain output, this sensor enables straightforward digital control and level switching in various electronic circuits. Its built-in reverse-polarity protection enhances device durability against incorrect supply connections.
The TLE49613LHALA1 is engineered to operate under a wide temperature range from -40°C to 170°C, making it suitable for high-temperature environments found in harsh industrial or automotive settings. The compact size with dimensions 4.16mm length, 3.29mm width, and 1.52mm depth allows easy integration into diverse assemblies without adding bulk.
This sensor excels in applications such as non-contact position sensing, magnetic proximity detection, and power electronics control modules where stable, reliable magnetic sensing is critical. Its AEC qualification and RoHS compliance reinforce its suitability for automotive-grade sensor integration.
Compact magnetic switch for precise field measurement with open-drain digital output. Reverse-polarity protection ensures safe operation in variable supply conditions. Supports up to 32 V supply voltage compatible with common vehicle and industrial electronics.
Wide thermal operating range from -40°C to 170°C for harsh environment resilience. Secure block body housing with screw terminal mechanical connections. Through-hole mounting for easy PCB assembly and integration. Ideal for automotive position sensing, power electronics, and magnetic detection.
AEC qualified and RoHS compliant to meet industry standards.
This Infineon Hall Effect Sensor combines robust design and reliable performance for automotive, industrial, and electrical sensor applications. Explore more automotive and control sensors in the Electronics & Electricals category at EnvMart.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Infineon Hall Effect Sensor TLE49613LHALA1 is 32 V DC.
This model operates reliably within a temperature range of -40°C to 170°C, making it suitable for harsh environments.
It features an open-drain output, which allows for easy digital level switching in electronic circuits.
The dimensions of this sensor are 4.16 mm in length, 3.29 mm in width, and 1.52 mm in depth.
This model is designed for through-hole mounting on conventional PCB assemblies, ensuring secure installation.
It is equipped with screw terminals, providing robust and secure electrical connections.
Yes, the TLE49613LHALA1 is AEC qualified, making it suitable for automotive applications.
This sensor is RoHS compliant and meets AEC standards, ensuring it adheres to industry regulations.
It is ideal for applications such as non-contact position sensing, magnetic proximity detection, and power electronics control modules.
It features built-in reverse-polarity protection to prevent damage from incorrect supply connections.
The body style of this sensor is block, which aids in secure mounting and connection.
The maximum AC voltage rating for the TLE49613LHALA1 is also 32 V, compatible with various electronic applications.
