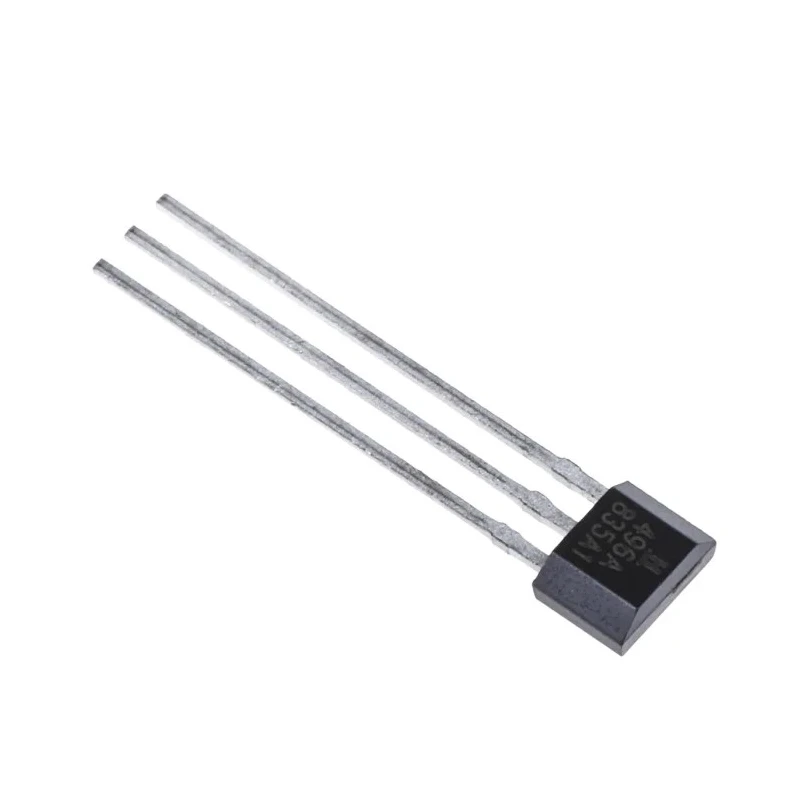

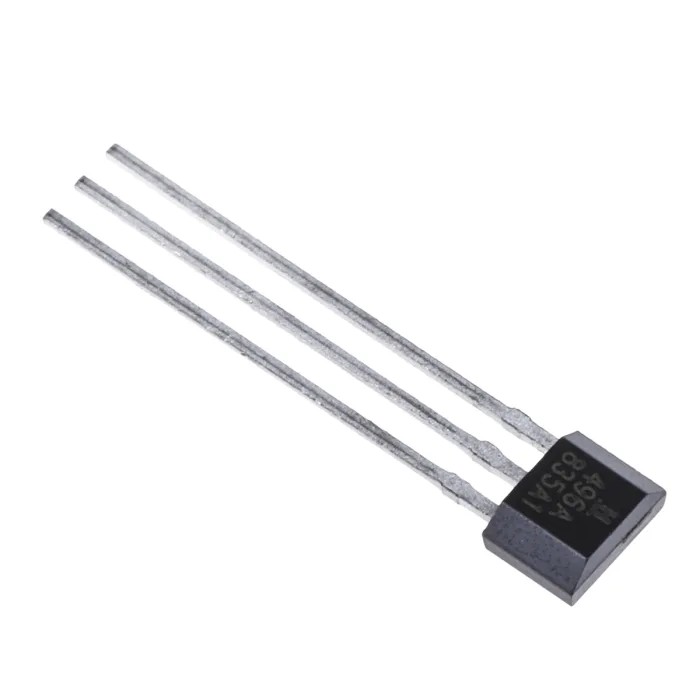

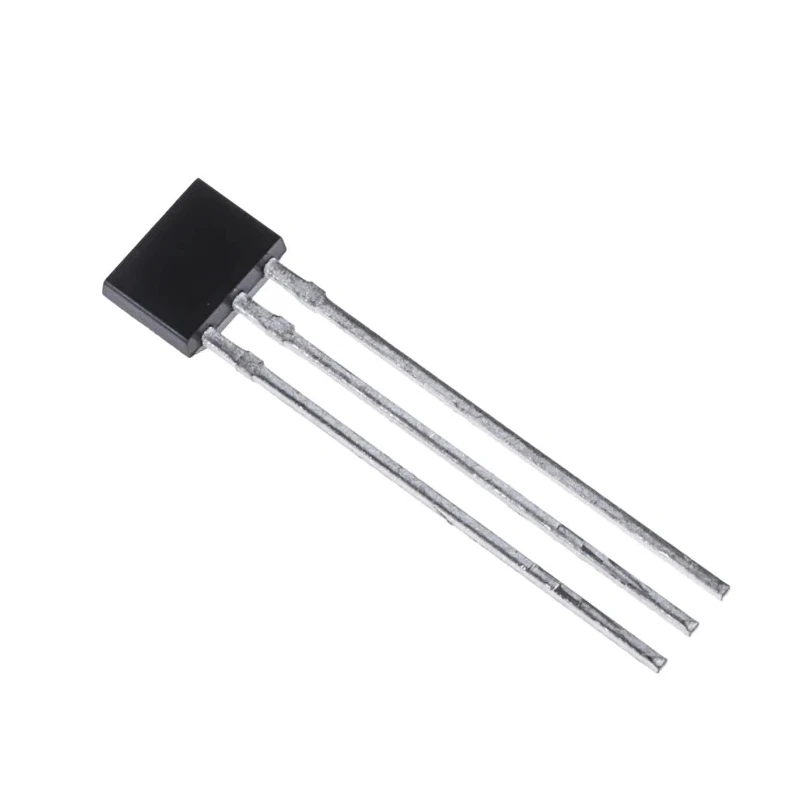

Honeywell Technologies Hall Effect Sensor Surface Mount Flat Body Ratiometric Output 11 V DC SS496A1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 4.06mm |
| Model | SS496A1 |
| Depth | 1.6mm |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Ratiometric |
| Series | SS490 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.5mA |
| Terminal type | PCB Terminal |
| Body Style | Flat |
| Maximum dc Voltage | 11V dc |
| Maximum Supply Voltage | 10.5V dc |
Key Features
- Delivers ratiometric output proportional to magnetic field strength and supply voltage.
- Features a compact flat body design suitable for PCB mounting.
- Operates reliably between -40°C to 150°C for diverse environments.
- Supports maximum supply voltage of 10.5 V DC and maximum DC voltage of 11 V DC.
- Provides 1.5 mA switching current with single current sinking or sourcing output.
- Uses surface mount with PCB terminal type for easy integration.
- Employs rail-to-rail operation for enhanced signal accuracy and responsiveness.
- Typical applications include current sensing, motor control, position detection, metal detection, and vibration sensing.
Product Description
Honeywell SS496A1 Hall Effect Sensor is a miniature surface-mounted sensor featuring a flat body with ratiometric output proportional to both supply voltage and magnetic field strength. It operates at a maximum supply voltage of 10.5 V DC and supports a DC voltage up to 11 V. The sensor features a PCB terminal type and a compact design measuring 4.06 mm length, 3 mm width, and 1.6 mm depth, making it suitable for integration on various electronic control boards.
This sensor exhibits excellent temperature stability, operating safely within a wide temperature range from -40°C to 150°C. The single current sinking or sourcing linear output provides reliable rail-to-rail operation, offering a more usable signal for enhanced accuracy and responsiveness. The SS496A1 responds effectively to both positive and negative gauss, providing versatile detection capabilities.
Designed for a variety of industrial, automation, laboratory, and commercial systems, typical use cases include current sensing, motor control, position control, encoder feedback, metal detection, and vibration monitoring. The robust design and stable electrical characteristics ensure consistent performance in demanding environments.
Delivers ratiometric output proportional to supply voltage and magnetic field. Compact flat body for surface mounting on PCBs. Robust operation from -40°C to 150°C temperature range. Single current sinking or sourcing output with 1.5 mA switching current.
Ideal for current sensing, motor control, position detection, metal detection, and vibration sensing. Measures 4.06 mm length, 3 mm width, and 1.6 mm depth. Manufactured in China ensuring standard quality compliance. Rail-to-rail operation for enhanced output signal accuracy.
EnvMart offers this Honeywell SS496A1 sensor within our comprehensive range of Hall Effect Sensors and electronic components, suitable for varied industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 10.5 V DC.
It operates reliably within a temperature range of -40°C to 150°C.
The sensor delivers a ratiometric output that is proportional to both the magnetic field strength and the supply voltage.
This model measures 4.06 mm in length, 3 mm in width, and 1.6 mm in depth.
It provides a switching current of 1.5 mA with single current sinking or sourcing output.
The SS496A1 features a surface mount design suitable for PCB integration.
It uses a PCB terminal type for easy integration into electronic systems.
Typical applications include current sensing, motor control, position detection, metal detection, and vibration sensing.
This model has a flat body style, which contributes to its compact design.
It employs rail-to-rail operation for enhanced signal accuracy and responsiveness.
The SS496A1 belongs to the SS490 series of Hall Effect sensors.
This sensor is manufactured in China, ensuring compliance with standard quality requirements.
