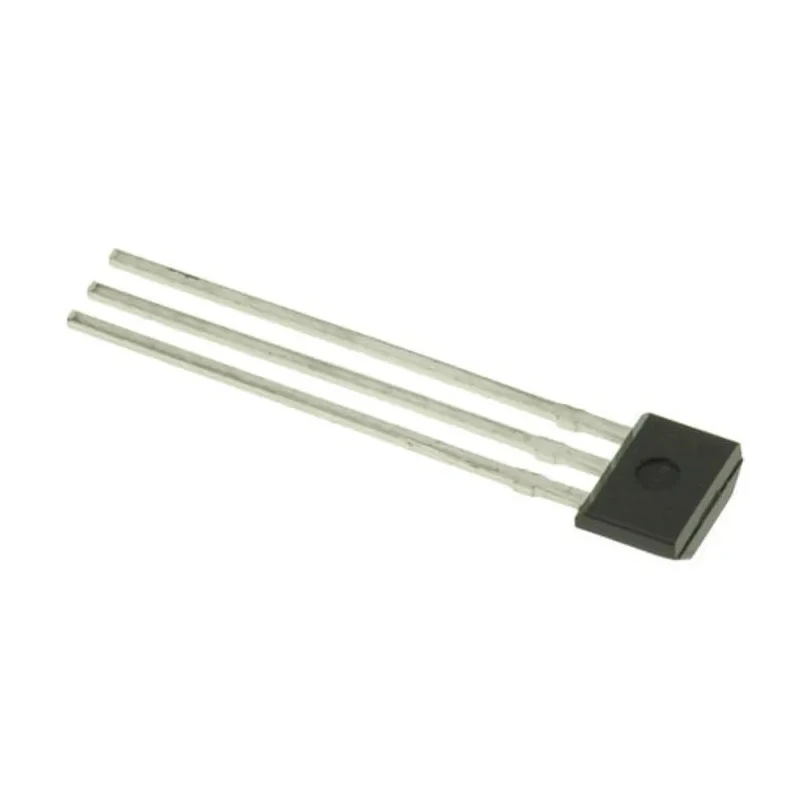

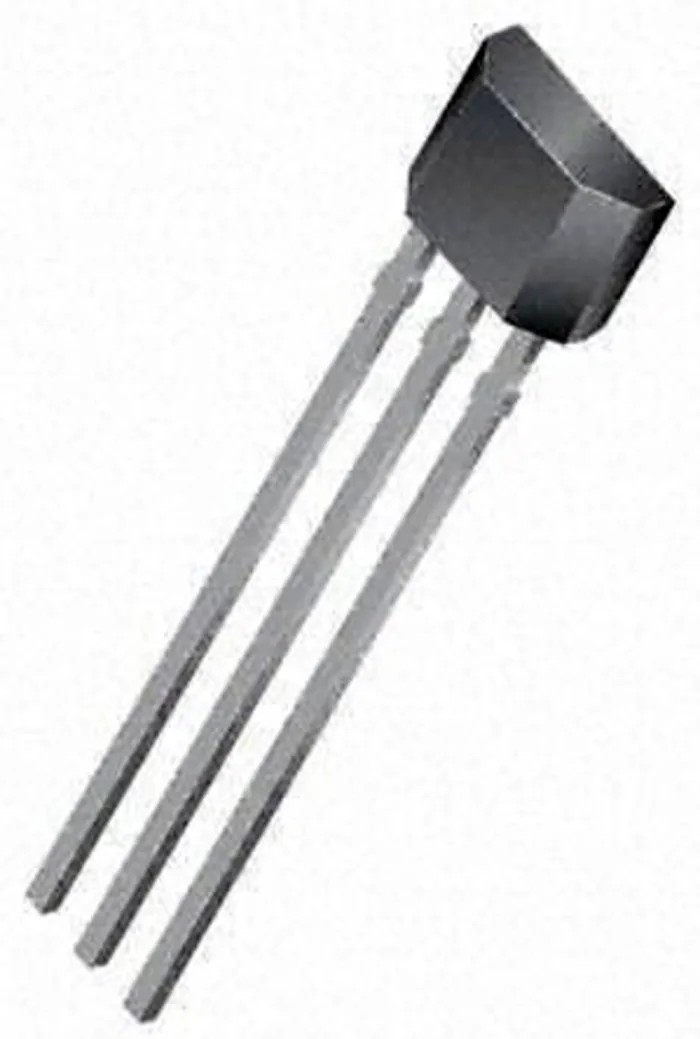

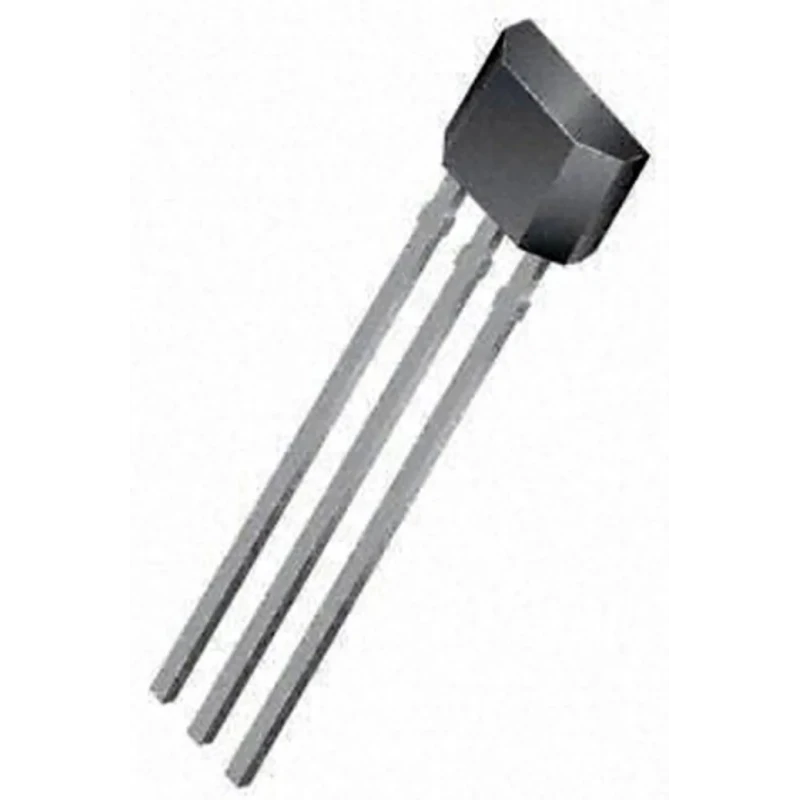

DiodesZetex Through Hole Micropower Omnipolar Hall-Effect Sensor Switch 2.5 V to 5.5 V SIP 3-Pin AH180-PG-B
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 125μs |
| Height | 3.2mm |
| Length | 4.3mm |
| Model | AH180-PG-B |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | AH180 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 15μA |
| Magnetic Type | Omnipolar |
Key Features
- Employs chopper stabilised technology for enhanced accuracy.
- Sensitive to omnipolar magnetic fields for flexible sensing.
- Operates efficiently with a supply current of only 15 microamperes.
- Compact through hole SIP package with dimensions 4.3 mm length, 3.2 mm height, and 1.6 mm width.
- Wide operating temperature range from -40°C to 85°C ensures robustness.
- Fast response time of 125 microseconds suitable for dynamic applications.
- Compliant with RoHS standards supporting environmental safety.
- Three-pin configuration simplifies PCB integration.
Product Description
DiodesZetex AH180-PG-B is a high-performance Through Hole Micropower Omnipolar Hall-Effect Sensor Switch designed for non-contact proximity detection and magnetic field sensing. It operates between 2.5 V minimum and 5.5 V maximum supply voltages and features chopper stabilisation technology which ensures low offset and drift, leading to accurate and reliable magnetic field detection.
This sensor switch is sensitive to omnipolar magnetic fields, allowing activation by either magnetic polarity, making it flexible for various sensing applications. It is housed in a compact, through hole SIP 3-pin package measuring 4.3 mm in length, 3.2 mm in height, and 1.6 mm in width, which makes it easy to mount on printed circuit boards.
With a low supply current of 15 microamperes and a rapid response time of 125 microseconds, the AH180-PG-B sensor switch is suitable for energy-efficient and fast-switching industrial and electronic applications. It supports operating temperatures from -40°C to 85°C, making it reliable under harsh environmental conditions.
Applications include industrial machinery control, motor speed sensing, security systems, and other automation and control systems requiring precise magnetic proximity detection. The product complies with RoHS directives ensuring it meets environmental safety standards.
Chopper stabilised technology for enhanced accuracy. Omnipolar magnetic type for versatile sensing. Low supply current of 15 microamperes for energy efficiency. Compact SIP 3-pin through hole package for easy PCB integration.
Wide operating temperature range of -40°C to 85°C. Fast response time of 125 microseconds suitable for dynamic sensing. RoHS compliant ensuring environmental standards. Ideal for industrial, automotive, and control applications.
Explore more Hall Effect Sensors and sensor ICs at EnvMart for your electronic and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AH180-PG-B operates with a supply voltage range from 2.5 V to 5.5 V.
This sensor has a fast response time of 125 microseconds, making it suitable for dynamic applications.
The SIP package measures 4.3 mm in length, 3.2 mm in height, and 1.6 mm in width.
It is sensitive to omnipolar magnetic fields, allowing it to activate with either magnetic polarity.
The supply current for the AH180-PG-B is only 15 microamperes, contributing to its energy efficiency.
The sensor operates effectively within a temperature range of -40°C to 85°C.
This model features a three-pin configuration, simplifying its integration into printed circuit boards.
It employs chopper stabilised technology, which enhances accuracy and reduces offset and drift.
Yes, the AH180-PG-B is RoHS compliant, ensuring it meets environmental safety standards.
This unit uses a through hole mounting type, facilitating easy installation on PCBs.
It is suitable for applications such as industrial machinery control, motor speed sensing, and security systems.
This model is part of the AH180 series of Hall-Effect sensors.
