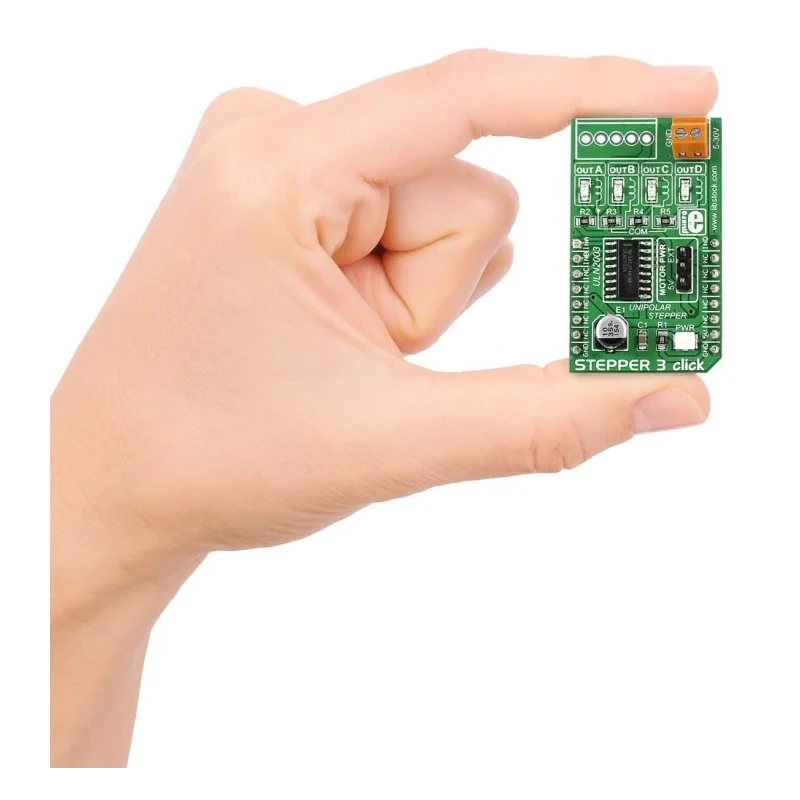

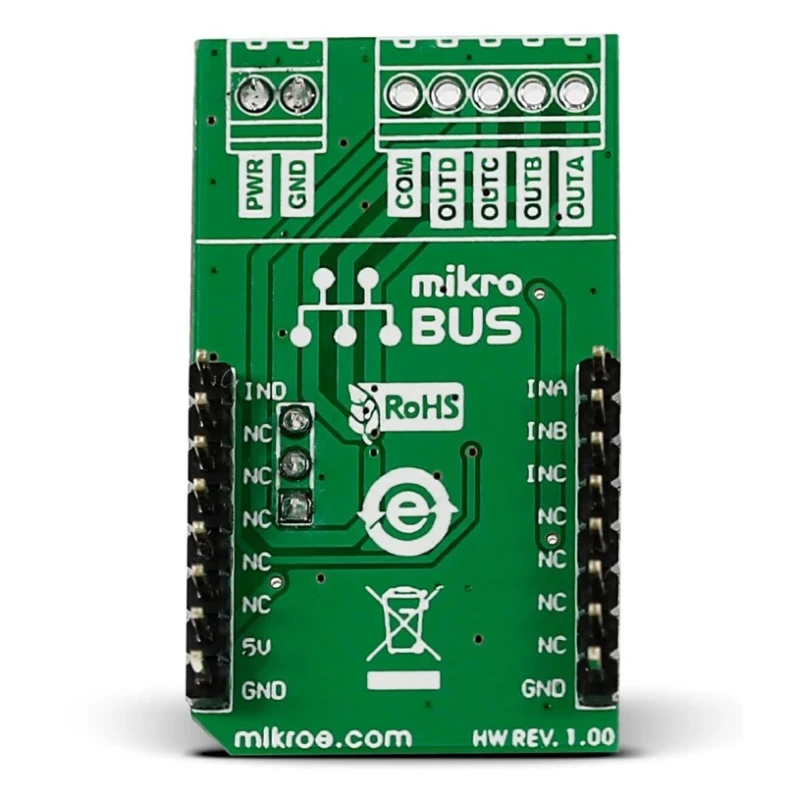

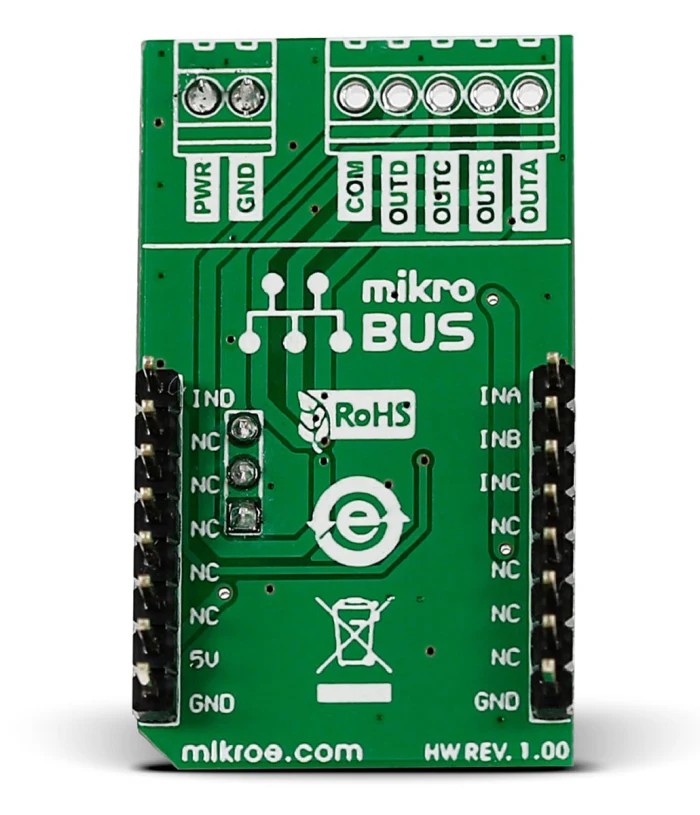

MikroElektronika Stepper 3 Click Motor Controller for ULN2003 with PWM Control MikroBus MIKROE-2035

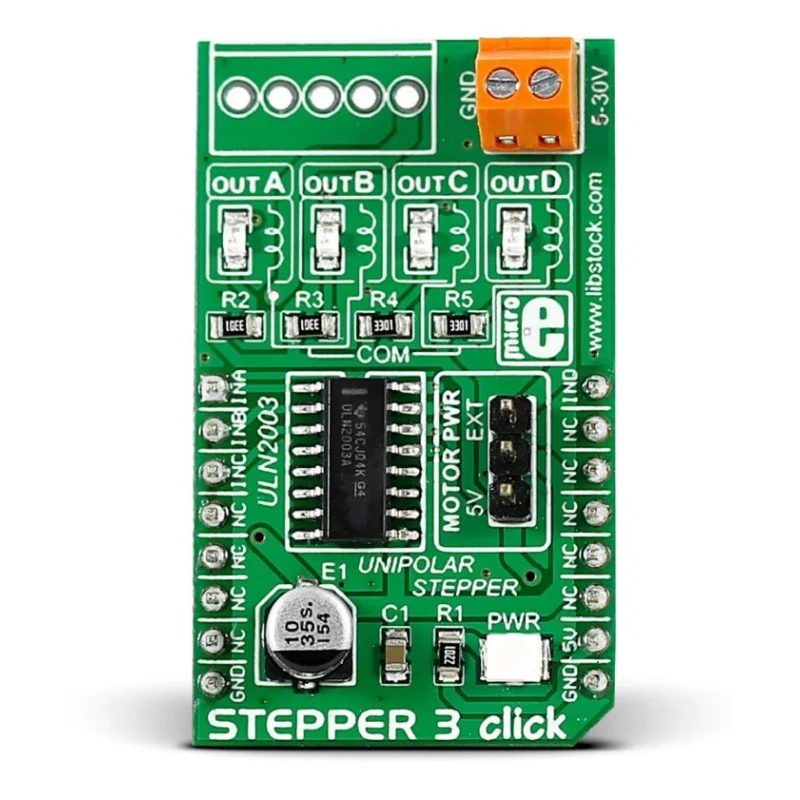

The MikroElektronika MIKROE-2035 Stepper 3 Click Motor Controller is a highly precise evaluation board engineered for unipolar stepper motor control on the MikroBus platform. This compact motor driver board integrates the Texas Instruments ULN2003A Darlington Transistor Array, facilitating high-voltage and high-current capability to efficiently drive motor windings. It enables individual motor phase access to tailor control for various motor applications.

The controller supports an external motor power supply of up to 30 V DC with a peak current capacity of 500 mA on single outputs, ensuring robust motor operation without compromising the board and host system.

Designed for versatility, the Stepper 3 Click includes a dedicated PWM input pin that allows fine-tuning of the motor's duty cycle, thus enabling speed regulation and precise movement control. It supports multiple stepping modes including full, half, quarter, eighth, and sixteenth-step modes, enhancing motor positioning accuracy for demanding industrial automation and robotics applications.

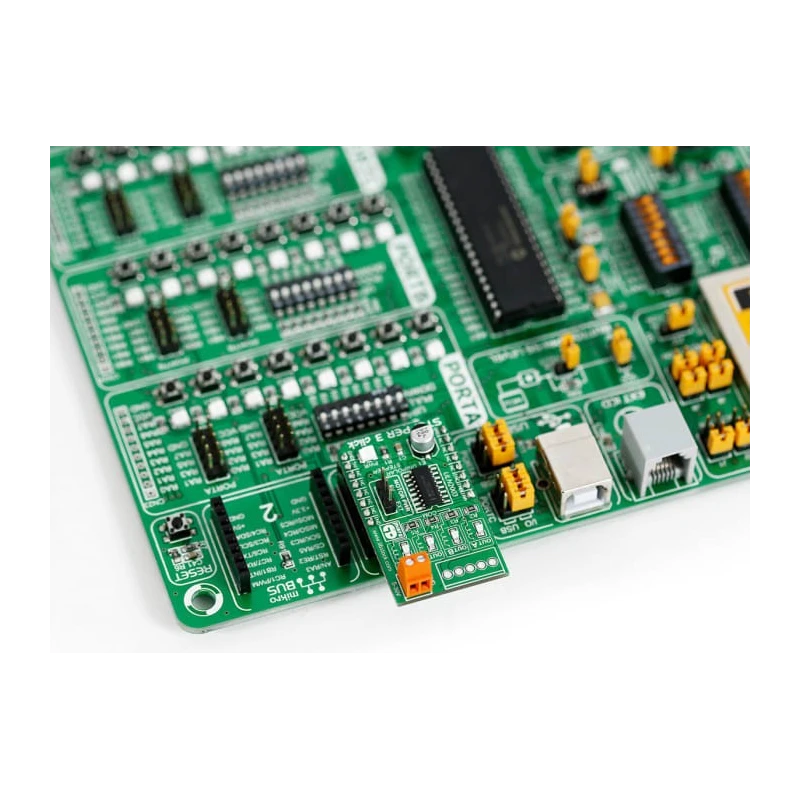

The board receives a regulated 5 V supply directly from the MikroBus socket, simplifying integration and connectivity within complex embedded systems. Its compact dimensions of 42.9 x 25.4 mm make it suitable for tight space conditions in embedded or prototyping environments.

This motor controller board is ideal for use in development and educational settings, including STEM education, robotics, industrial automation, and embedded system prototypes requiring stepper motor control with high precision and reliability.

High voltage and current driver with ULN2003A transistor array. Individual motor phase access for advanced control strategies. Supports external 30 V DC power supply with 500 mA peak output. Pulse Width Modulation input for speed and duty cycle control.

Multiple step modes to suit various precision requirements. Standard 5 V supply from MikroBus socket for ease of use. Compact form factor for flexible system integration. Explore the full range of Motor Controllers and development tools at EnvMart for your embedded and robotic project needs.
