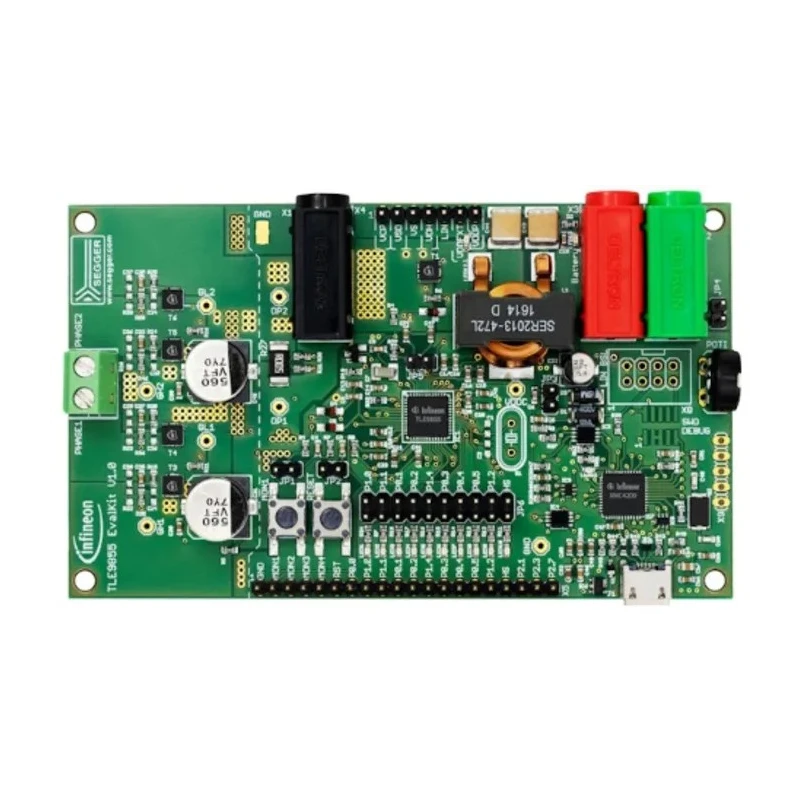

Infineon Motor Evaluation Kit TLE9855 EVALKIT Motor Controller with Gate Driver for Embedded Power IC TLE9855
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE9855 |
| Standards/Approvals | RoHS |
| Kit Classification | Motor Evaluation Kit |
| Featured Device | Motor Control IC with Gate Driver |
| Kit Name | TLE9855 EVALKIT |
Key Features
- The kit includes the TLE9855 device and typical application circuitry for driving DC motors.
- Integrated two MOSFET half bridges to facilitate instant motor control.
- Ready for connection with automotive or similar power supplies.
- Features an onboard Segger debugger for efficient debugging and development.
- Compatible with the super set device TLE9855QX, supporting the full TLE985x product family.
- Offers free mode for full usage of existing dashboards during operation.
- Allows reading and writing values of variables in real-time during motor operation.
- Includes an oscilloscope function to plot data with microcontroller target code.
Product Description
Infineon TLE9855 EVALKIT is a Motor Evaluation Kit designed for developers working with Infineon's Embedded Power IC TLE9855. This evaluation kit provides an easy-to-use platform that contains the TLE9855 device and the typical application circuit including two MOSFET half bridges, enabling immediate DC motor driving capabilities.
The kit is engineered for seamless connection with automotive or comparable power supplies and includes an onboard Segger debugger for streamlined debugging processes. Utilizing the super set device TLE9855QX, the EvalKit supports the evaluation of all devices in the TLE985x family, making it versatile for extensive motor control IC testing and development.
The free mode feature of the kit allows unrestricted use of all existing dashboards while running applications. It facilitates reading and writing variables dynamically during operation, providing flexible control and monitoring. Additionally, the oscilloscope function enables users to plot data in real-time when used together with appropriate microcontroller target codes.
The kit’s Segger J-Link connection offers reliable interfacing with the target embedded device, enhancing development workflows. This evaluation kit is ideal for professional use in industrial motor control, automotive electronics development, robotics, and other advanced power management applications.
The kit includes the TLE9855 device with dual half bridge MOSFET output stages for motor driving. Embedded Segger debugging capability onboard to facilitate development. Supports entire TLE985x product line through the inclusive TLE9855QX supersede device.
Usage is tailored for automotive power supply environments and similar applications. Real-time variable access and data plotting enhance developer interactions. Designed for industrial, automotive, robotics, and power management development applications.
Explore more Motor Controller evaluation kits and power management solutions at EnvMart for your industrial and electronics development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The kit includes the TLE9855 device, typical application circuitry for driving DC motors, and two MOSFET half bridges for motor control. It also features an onboard Segger debugger for efficient debugging and development.
This evaluation kit is engineered for seamless connection with automotive or comparable power supplies, making it suitable for various applications in those environments.
The TLE9855 device serves as a Motor Control IC with Gate Driver, facilitating immediate DC motor driving capabilities through its integrated circuitry.
Yes, the evaluation kit is compatible with the super set device TLE9855QX, which supports the full TLE985x product family for extensive testing and development.
The kit includes an onboard Segger debugger, allowing for streamlined debugging processes and efficient development workflows.
Yes, the kit allows reading and writing values of variables in real-time during motor operation, providing flexible control and monitoring.
The oscilloscope function enables users to plot data in real-time when used with appropriate microcontroller target codes, enhancing data visualization during development.
The kit complies with RoHS standards, ensuring it meets environmental regulations regarding hazardous substances.
The Infineon Motor Evaluation Kit TLE9855 is manufactured in India.
This evaluation kit is ideal for applications in industrial motor control, automotive electronics development, robotics, and other advanced power management scenarios.
The TLE9855 EVALKIT is classified as a Motor Evaluation Kit, designed specifically for evaluating motor control functionalities.
