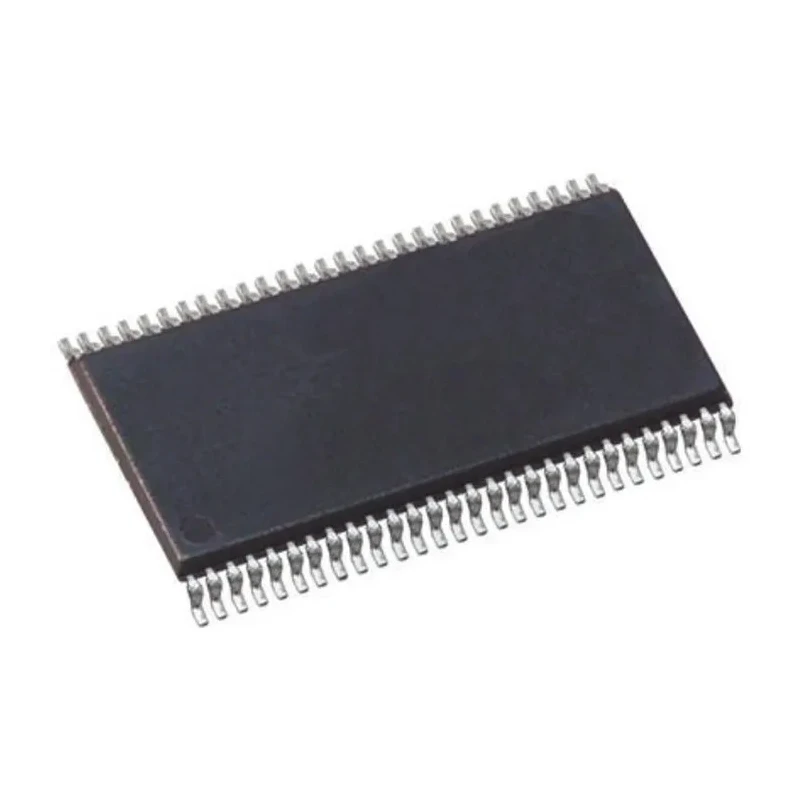

Texas Instruments Brushless DC Motor Controller 3 Phase 60 V 1.7 A 56-Pin HTSSOP DRV8301DCA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 14.1mm |
| Model | DRV8301DCA |
| Width | 6.2mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | DRV83001 |
| Configuration | 3 Phase |
| Output Current | 2mA |
| Maximum Operating Temperature | 125°C |
| Package Type | HTSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 56 |
| Maximum Collector Emitter Voltage Vceo | 60V |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 6V |
| Supply Current | 15mA |
| Maximum IGBT Collector Current | 1.7A |
| Typical Switching Frequency | 581kHz |
Key Features
- Designed for Brushless DC Motor applications.
- Supports 3 Phase motor configuration for efficient control.
- Operates with supply voltages ranging from 6 V to 60 V.
- Typical switching frequency is 581 kHz enabling fast and precise motor control.
- Compact HTSSOP package with 56 pins and surface mount design.
- Maximum operating temperature up to 125°C suitable for industrial environments.
- Low supply current of 15 mA reduces power consumption.
- Output current of 2 mA for driving motor gate signals.
Product Description
Texas Instruments DRV8301DCA Brushless DC Motor Controller is a high-performance motor driver IC designed for controlling 3 Phase Brushless DC motors with precision and efficiency. It supports a wide voltage range from 6 V to a maximum of 60 V and delivers a collector emitter voltage of up to 60 V with a maximum IGBT collector current of 1.7 A, making it suitable for various industrial and commercial motor control applications.
The device is housed in a compact 56-pin HTSSOP surface mount package, with dimensions optimized for easy integration into compact PCB designs. It features a typical switching frequency of 581 kHz, enabling rapid switching control to enhance motor performance and reduce noise.
Its low supply current of 15 mA and output current of 2 mA enable energy-efficient operation, essential for power-sensitive applications. Designed for reliable operation in harsh environments, it supports a wide operating temperature range from -40°C to 125°C, making it well suited for automotive, industrial, and HVAC motor control systems.
The DRV8301DCA is part of the DRV8300 series by Texas Instruments that incorporates advanced motor control technologies for improved gate driving and fault protection. This makes it ideal for manufacturing, automation, water treatment, and other industrial use cases where precision brushless motor control is critical.
Designed for Brushless DC Motor applications. 3 Phase motor configuration ensures smooth and efficient operation. Wide supply voltage range from 6 V to 60 V for versatile use. High switching frequency of 581 kHz for precise motor control.
Compact 56-pin HTSSOP package for easy PCB assembly. Operates reliably in temperatures from -40°C to 125°C. Low power consumption with 15 mA supply current. Efficient output current of 2 mA suitable for gate driving. Suitable for automotive, industrial, laboratory, HVAC, and manufacturing sectors.
For engineers and designers looking to optimize brushless motor control, the DRV8301DCA offers a robust solution with advanced features from Texas Instruments. Explore EnvMart's extensive catalog for compatible motor components and system integration options to enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the DRV8301DCA is 60 V.
This model features a typical switching frequency of 581 kHz, allowing for fast and precise motor control.
The output current for driving motor gate signals is 2 mA.
It operates reliably within a temperature range of -40°C to 125°C.
The dimensions of this model are 14.1 mm in length, 6.2 mm in width, and 1.05 mm in height.
It is specifically designed for Brushless DC motors, supporting a 3 Phase configuration.
The supply current for this model is 15 mA, contributing to its energy-efficient operation.
This motor controller is housed in a compact HTSSOP package with 56 pins.
The maximum IGBT collector current is 1.7 A, suitable for various applications.
This model utilizes a surface mount type for easy integration into PCB designs.
The DRV8301DCA is manufactured in India.
This model is part of the DRV83001 series by Texas Instruments, which incorporates advanced motor control technologies.
