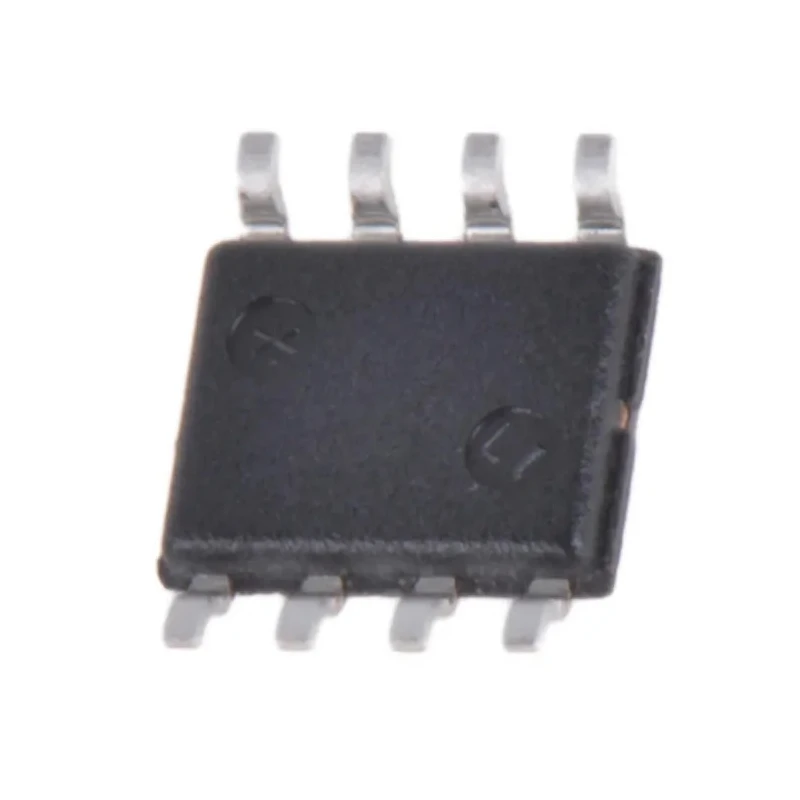

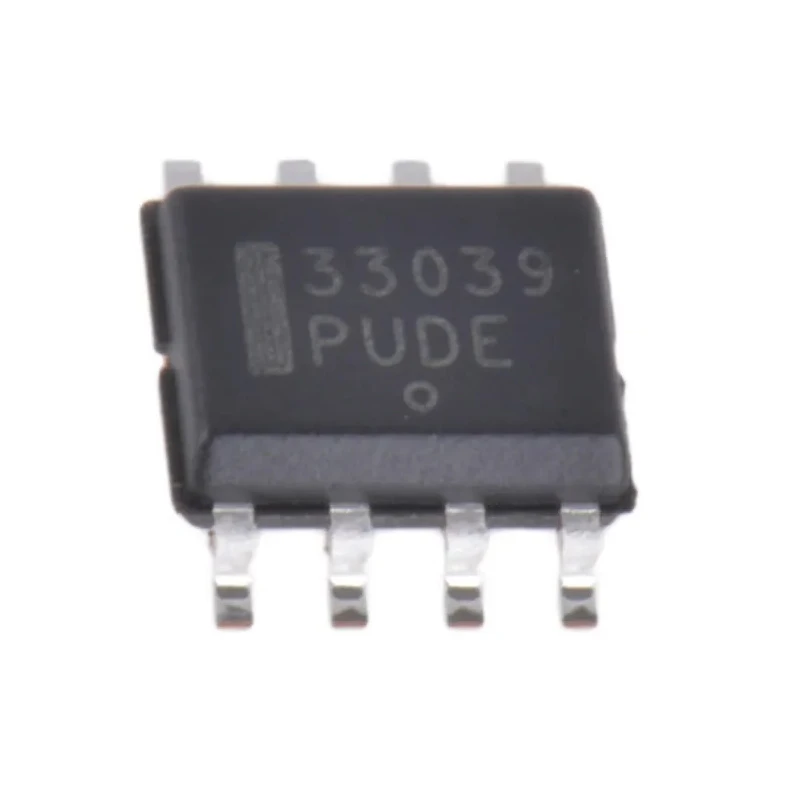

onsemi Brushless DC Motor Controller 7.5 V 8-Pin SOIC MC33039DR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 5mm |
| Model | MC33039DR2G |
| Width | 4mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | MC33039 |
| Output Current | 20mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Collector Emitter Voltage Vceo | 7.5V |
| Maximum Supply Voltage | 9V |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 5mA |
| Inverter Power Rating | 650mW |
Key Features
- Compatible with brushless DC motor types.
- Maximum collector emitter voltage of 7.5 V.
- Designed in a compact SOIC 8-pin package for surface mounting.
- Operating temperature ranges from -40°C to 85°C for robust applications.
- Low supply current of 5mA for efficient operation.
- Inverter power rating of 650mW allows moderate power usage.
- Compact dimensions with length 5mm, width 4mm, height 1.5mm.
- Not designed for automotive standard compliance.
Product Description
onsemi MC33039DR2G is a highly reliable Brushless DC Motor Controller designed for precise motor control and efficient performance. This 8-pin SOIC surface-mount device operates at a nominal voltage of 7.5 V with a supply range between 5.5 V and 9 V, making it suitable for a variety of low voltage brushless DC motor applications.
The controller features a maximum collector emitter voltage (Vceo) of 7.5 V and offers an output current of up to 20mA, ensuring efficient motor drive capabilities. Its operating temperature range from -40°C to 85°C allows operation in challenging environments, ideal for industrial, electronic, and power management use cases.
The compact SOIC package (8 pins, length 5mm, width 4mm, height 1.5mm) enables space-saving PCB designs and ease of surface mounting, contributing to streamlined manufacturing and enhanced production efficiency.
This Motor Controller exhibits a low supply current of 5mA and inverter power rating of 650mW, balancing performance with power efficiency. Though not specified for automotive standards, it is a versatile choice for electronic component applications in motor driver circuits and semiconductor power management.
Compatible with brushless DC motor types. Maximum collector emitter voltage of 7.5 V. Compact surface-mount SOIC 8-pin package. Wide temperature operation range from -40°C to 85°C. Low 5mA supply current for energy-efficient use.
Inverter power rating of 650mW for effective motor driving. Small package dimensions enable dense PCB layouts. Ideal for power management IC, motor control, industrial and electronic instrumentation. Explore more on onsemi motor drivers and power management ICs at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector emitter voltage (Vceo) for this motor controller is 7.5 V.
This model operates with a supply voltage range between 5.5 V and 9 V.
It can provide an output current of up to 20mA.
The dimensions of the SOIC package are 5mm in length, 4mm in width, and 1.5mm in height.
The operating temperature range is from -40°C to 85°C.
The supply current for this motor controller is 5mA.
The inverter power rating is 650mW, allowing for moderate power usage.
No, this model is not designed for automotive standard compliance.
It is compatible with brushless DC motor types.
This model is designed for surface mounting in a compact SOIC package.
This motor controller belongs to the MC33039 series.
The country of origin for this motor controller is India.
