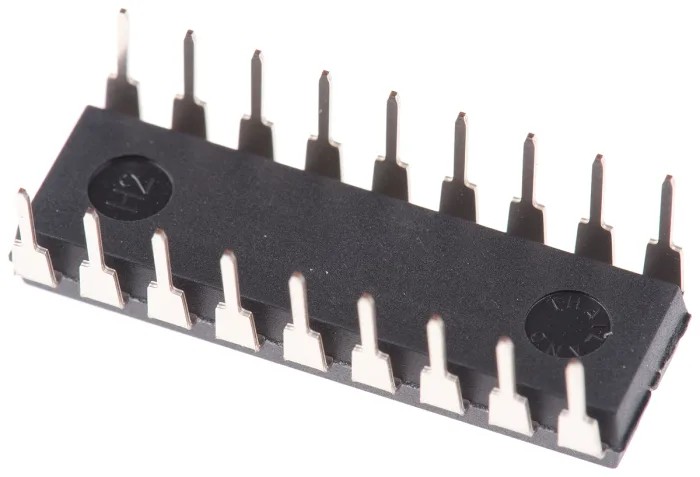

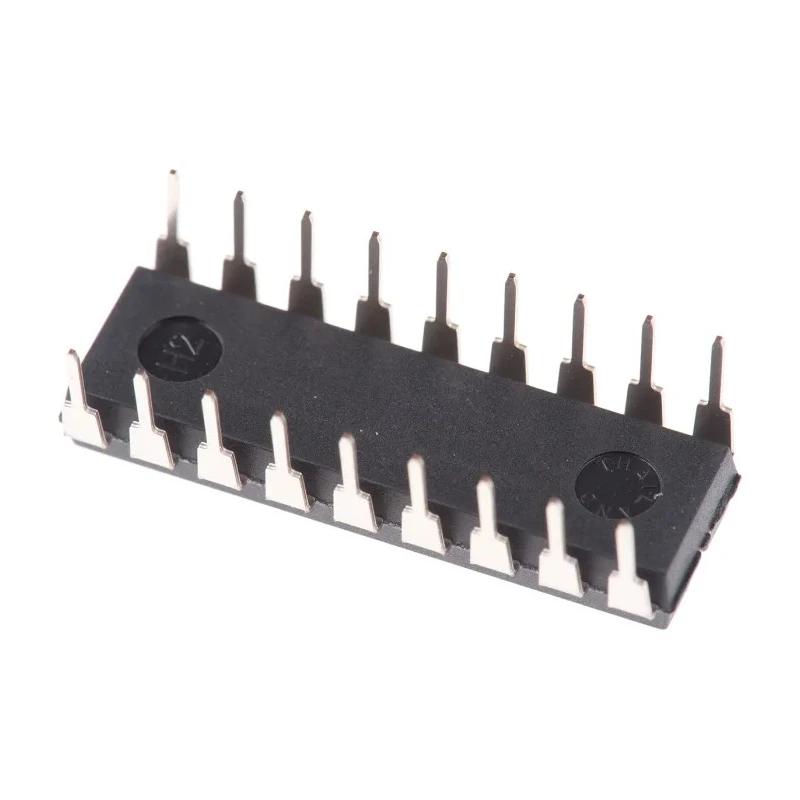

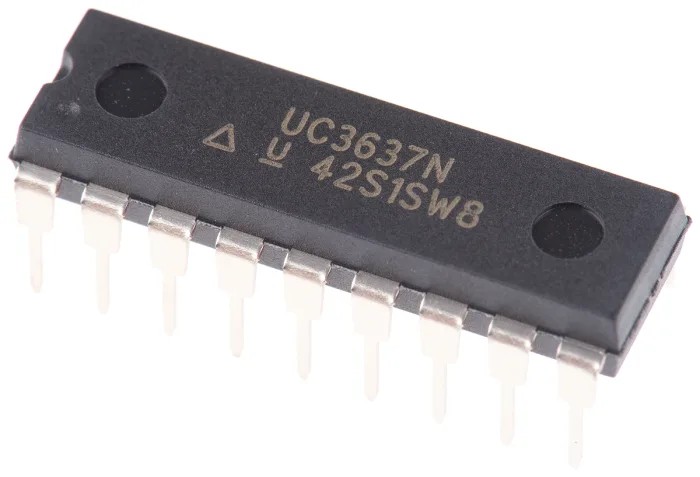

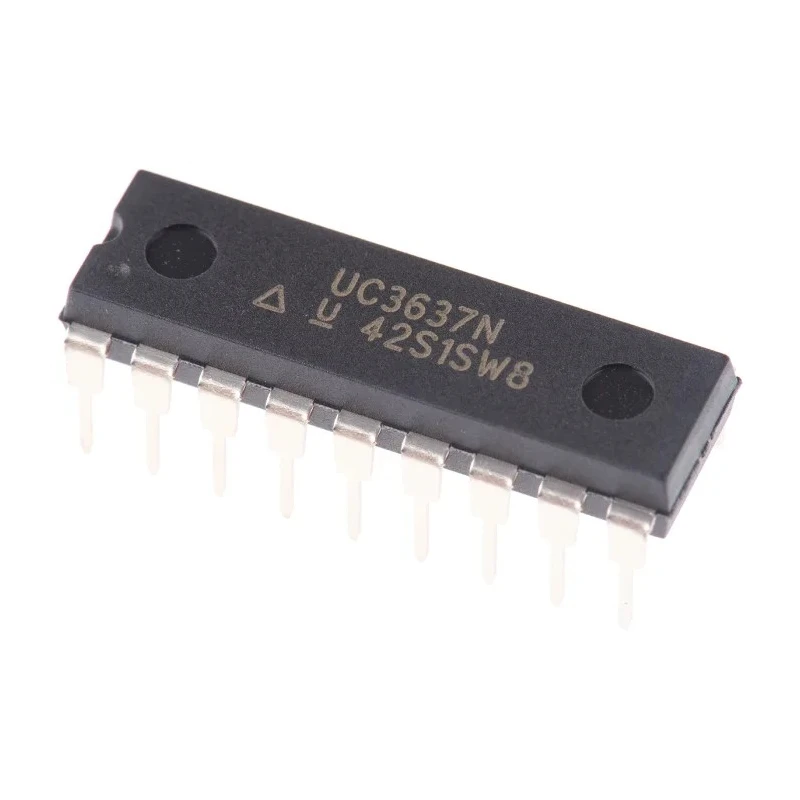

Texas Instruments Brushless Motor Controller 36 V 100 mA 18-Pin PDIP UC3637N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 22.48mm |
| Model | UC3637N |
| Width | 6.35mm |
| Motor Type | Brushless |
| Mount Type | Through Hole |
| Series | UC3637 |
| Configuration | Full Bridge |
| Output Current | 500mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 18 |
| Maximum Collector Emitter Voltage Vceo | 36V |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 5V |
| Supply Current | 15mA |
| Maximum IGBT Collector Current | 100mA |
Key Features
- Supports a full bridge configuration for precise motor control.
- Maximum IGBT collector current is 100 mA for efficient operation.
- The PDIP 18-pin package allows easy through-hole mounting.
- Operating supply voltage ranges from 5 V to 36 V.
- Maximum output current can reach up to 500 mA.
- Designed to operate within temperatures from 0°C to 70°C.
- Compact dimensions with length 22.48 mm, width 6.35 mm, and height 4.57 mm.
- This motor controller has a supply current of 15 mA for low power consumption.
Product Description
Texas Instruments UC3637N is a brushless motor controller engineered for precise control of brushless motors in industrial and electronic applications. This device features a full bridge configuration allowing effective motor management with a maximum IGBT collector current of 100 mA and a peak output current of 500 mA. Its operating voltage range spans from 5 V to 36 V, accommodating a wide variety of power supply conditions.
The PDIP 18-pin package is designed for through-hole mounting, facilitating straightforward integration into printed circuit boards. With compact physical dimensions of 22.48 mm in length, 6.35 mm in width, and 4.57 mm in height, it is suitable for space-limited designs.
Operational temperature range is from 0°C to 70°C, making this controller reliable in standard industrial and electronic environments. It has a supply current of just 15 mA, promoting efficient energy usage while managing motor functions.
This motor controller does not possess automotive standard certifications but is ideal for industrial automation, manufacturing equipment, HVAC systems, and other electronic motor control applications where brushless motors are employed.
Supports a full bridge configuration for precise motor control. Maximum IGBT collector current is 100 mA for efficient operation. The PDIP 18-pin package allows easy through-hole mounting. Operating supply voltage ranges from 5 V to 36 V.
Maximum output current can reach up to 500 mA. Designed to operate within temperatures from 0°C to 70°C. Compact dimensions with length 22.48 mm, width 6.35 mm, and height 4.57 mm. This motor controller has a supply current of 15 mA for low power consumption.
Does not comply with automotive standards; intended for general industrial and electronic applications. Explore the Texas Instruments Motor Controllers range on EnvMart for more industrial-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this motor controller can reach up to 500 mA.
The operating supply voltage for the UC3637N ranges from 5 V to 36 V.
This model is designed to control brushless motors.
The dimensions of this unit are 22.48 mm in length, 6.35 mm in width, and 4.57 mm in height.
The supply current for this motor controller is 15 mA, promoting low power consumption.
The maximum IGBT collector current for the UC3637N is 100 mA.
This motor controller is designed to operate within a temperature range of 0°C to 70°C.
The UC3637N features a PDIP 18-pin package designed for through-hole mounting, facilitating easy integration into circuit boards.
This model supports a full bridge configuration for precise motor control.
No, the UC3637N does not comply with automotive standards; it is intended for general industrial and electronic applications.
This motor controller is suitable for applications in industrial automation, manufacturing equipment, HVAC systems, and other electronic motor control scenarios.
The maximum collector emitter voltage (Vceo) for this model is 36 V.
