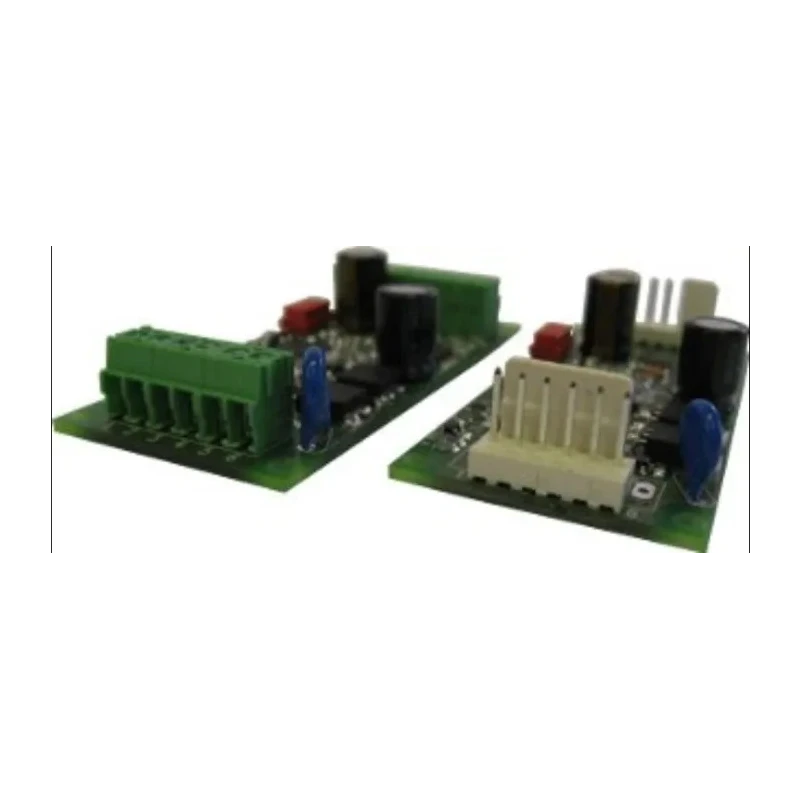

Electromen OY DC Motor Controller 10V 35V 4A PWM Function EM-324C

Electromen OY EM-324C is a compact and efficient DC motor controller designed for brushed motors operating between 10V and 35V with a maximum current of 4A. The controller features Pulse Width Modulation (PWM) functionality for precise speed and torque regulation, making it ideal for industrial, commercial, and automation applications.

Its full bridge design uses FET-transistors for high efficiency and reliability. Adjustable acceleration and deceleration ramps enable smooth startups and stops, reducing mechanical stress on the motor and connected equipment. The built-in adjustable current limit protects against overcurrent conditions and can serve as an end-stop trigger via current trip functionality.

Control inputs support forward, backward, and stop commands, including limit switch inputs for defining end stops. The unit offers two programmable speeds activated through a dedicated input, which can also accept an analogue 0-5V speed control signal. A fault output signal indicates overcurrent trips and allows for external shutdown control if desired.

The device supports two control modes: continuous mode, where the motor runs as long as the control input is active, and impulse mode, where operation occurs only on momentary commands. Additionally, special settings are available for start-up kick and auto reverse functionalities to enhance motor control in complex applications.

Programming and parameter adjustments can be performed via three interfaces: EM-236 unit, EM-268 PC software (EmenTool-Lite), and EM-326 smartphone app (EmenTool-App), providing flexibility in configuration and maintenance.

The EM-324C supports DIN rail mounting and is offered with an optional Molex connector for ease of installation. This product complies with EN - 55022B standards and is manufactured in Finland.

Compact design suitable for motors rated 5-50W. Adjustable acceleration/deceleration ramps provide smooth motor operation. Adjustable current limit protects motor and prevents damage. Selectable control modes for flexible motor command options.

Two speed settings with analogue control input support. Fault output for current trip indication and external shutdown. DIN rail mountable with connector options for easy installation. Programmable via PC and smartphone applications.

This motor controller is suitable for industrial automation, HVAC, robotics, and other applications requiring reliable brushed DC motor regulation. Discover more Motor Controllers and related automation equipment in our extensive EnvMart catalog to meet your specialized requirements.
