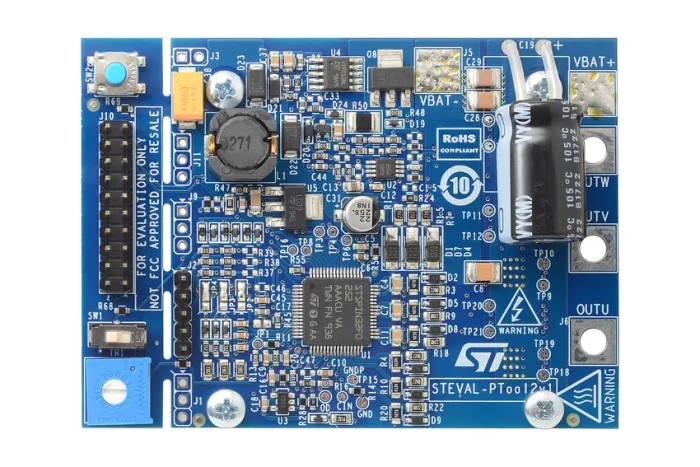

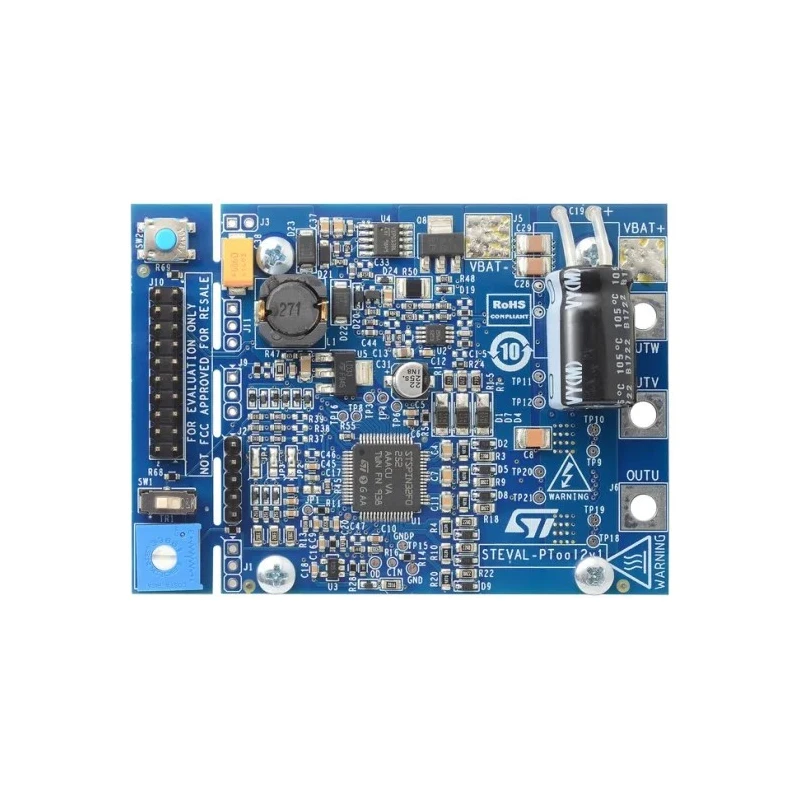

STMicroelectronics 3-Phase Inverter Based on STSPIN32F0252 Motor Controller for Motor STEVAL-PTOOL2V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-PTOOL2V1 |
| For Use With | Motor |
| Standards/Approvals | RoHS |
| Kit Classification | Reference Design |
| Featured Device | STSPIN32F0252 |
| Kit Name | 3-Phase Inverter Based on STSPIN32F0252 |
Key Features
- Operates with input voltage range from 20 VDC to 72 VDC.
- Recommended for battery-operated power tools using 8S to 15S battery packs.
- Supports output current up to 19 Arms with 36 A peak overcurrent threshold.
- Utilizes STSPIN32F0252 featuring 250 V, 1 A, 3-phase gate driver and Cortex-M0 STM32 MCU.
- Power stage built with STL130N8F7 MOSFETs in PowerFlat 5x6 package for efficient power dissipation.
- Includes smart shut down overcurrent protection and single-shunt current sensing capabilities.
- Supports sensored or sensorless 6-step and single-shunt vector field-oriented control algorithms.
- RoHS compliant for environmentally safe manufacturing.
Product Description
STMicroelectronics STEVAL-PTOOL2V1 is a state-of-the-art 3-Phase Inverter based on the STSPIN32F0252 motor controller, specifically designed for motor control in battery-operated power tools. This inverter supports an input voltage range of 20 VDC to 72 VDC, making it ideal for tools powered by 8S to 15S battery packs.
The Motor Controller integrates a 250 V, 1 A 3-phase gate driver with a low-power Cortex-M0 STM32 MCU to deliver precise and efficient motor control. The power stage uses STL130N8F7 MOSFETs housed in a PowerFlat 5x6 package, ensuring excellent heat dissipation and reliable performance under demanding conditions.
Featuring an output current capability of up to 19 Arms and an overcurrent threshold set at 36 A peak, the inverter offers robust protection and high efficiency. It includes a smart shut down overcurrent protection circuit (OCPC) and supports both sensored and sensorless 6-step commutation as well as single-shunt vector field-oriented control (FOC) algorithms, enabling flexibility for various motor types and applications.
This reference design is particularly suited for industrial, power tools, robotics, and motor-driven equipment requiring compact and efficient motor control solutions. Its compliance with RoHS standards assures environmentally safe manufacturing and use.
Operates on input voltage from 20 VDC to 72 VDC suitable for battery-powered tools. Designed for 8S to 15S battery packs in cordless power tool applications. Output current up to 19 Arms with 36 A peak overcurrent protection.
STSPIN32F0252 combines a 3-phase gate driver with a Cortex-M0 STM32 MCU. Power stage built with STL130N8F7 MOSFETs for optimal heat dissipation. Smart shut down overcurrent protection enhances device safety. Supports sensored/sensorless 6-step and single-shunt vector FOC algorithms.
RoHS compliant for environmentally friendly applications. Explore more power, motor, and robotics development tools on EnvMart for advanced industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range from 20 VDC to 72 VDC, making it suitable for battery-operated tools.
This unit supports an output current of up to 19 Arms, with a peak overcurrent threshold of 36 A.
It is recommended for use with 8S to 15S battery packs, specifically designed for cordless power tool applications.
The inverter supports sensored and sensorless 6-step commutation as well as single-shunt vector field-oriented control algorithms.
The featured device is the STSPIN32F0252, which combines a 3-phase gate driver with a Cortex-M0 STM32 MCU.
The power stage is built with STL130N8F7 MOSFETs housed in a PowerFlat 5x6 package for efficient power dissipation.
Yes, it includes a smart shut down overcurrent protection circuit to enhance device safety.
The country of origin for this motor controller is India.
Yes, it is RoHS compliant, ensuring environmentally safe manufacturing and use.
This model is particularly suited for industrial applications, power tools, robotics, and motor-driven equipment requiring efficient motor control solutions.
This kit is classified as a reference design, specifically for a 3-phase inverter based on the STSPIN32F0252 motor controller.
In addition to overcurrent protection, it features single-shunt current sensing capabilities for enhanced safety during operation.
