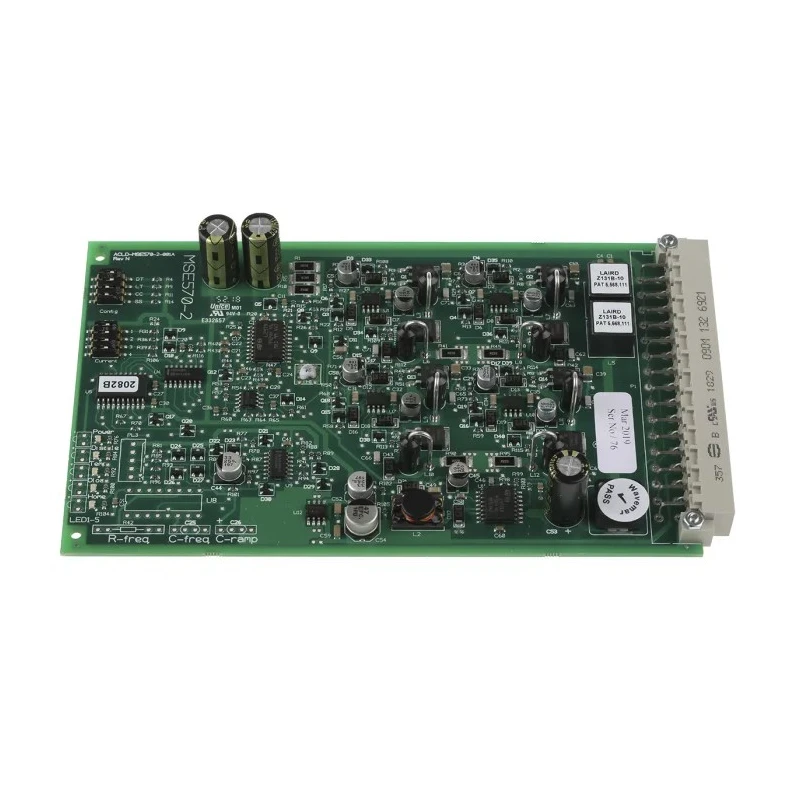

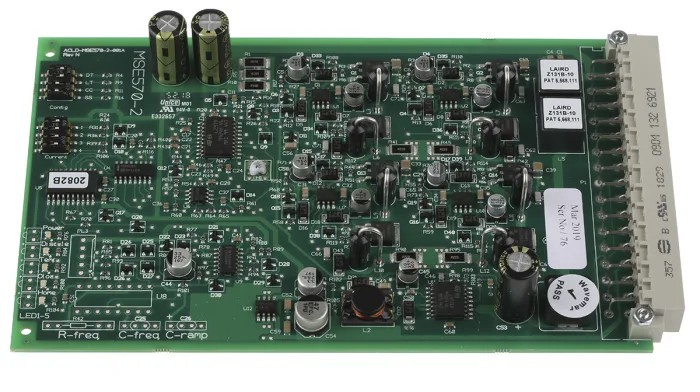

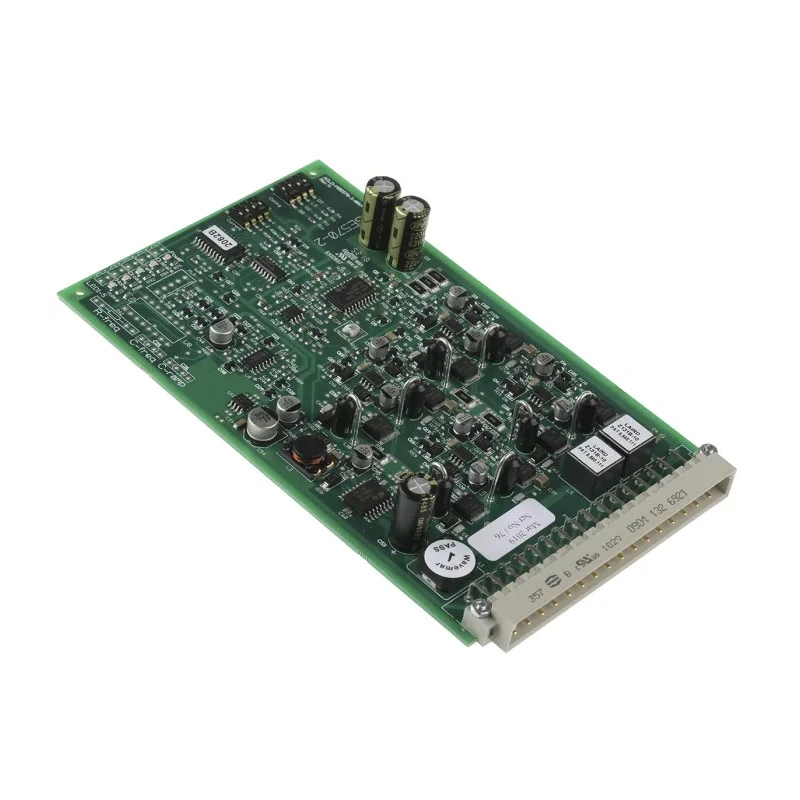

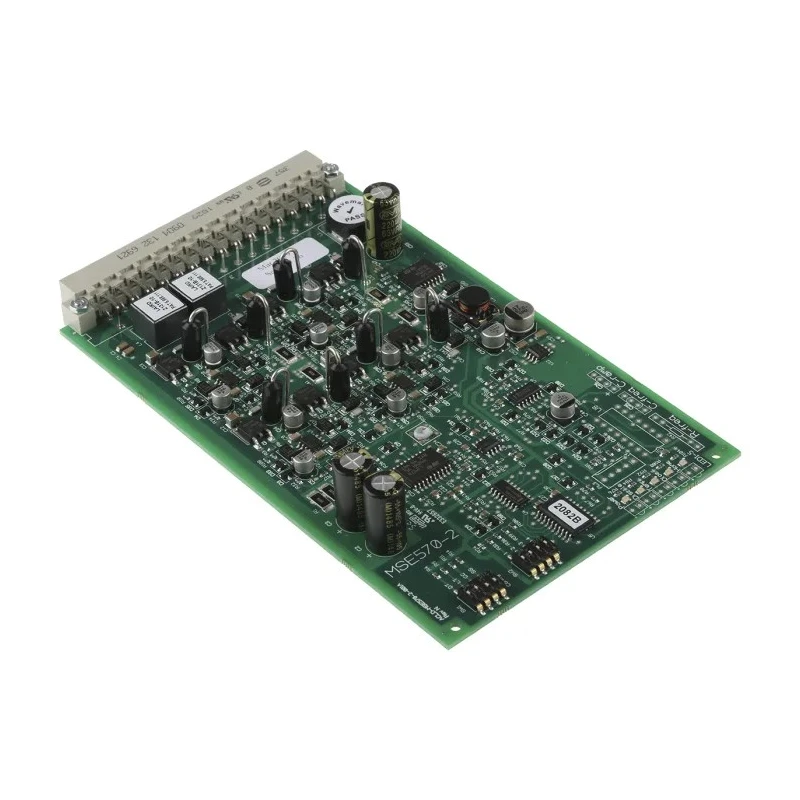

McLennan Servo Supplies 36V dc 3 Phase 3.5A Stepper Motor Controller MSE570 EVO 2

McLennan Servo Supplies MSE570 EVO 2 is a high-performance stepper motor controller designed for 3-phase motors powered by a 36V DC supply and a current rating of 3.5A. It features a slimline bipolar stepper motor drive architecture that enables precise and reliable motor control in industrial and automation applications.

This controller drives motors up to 40V at 3.5A, offering adjustable drive current settings ranging from 0.5A to 3.5A to accommodate varying load requirements. It incorporates output overload protection to safeguard connected motors while providing synchronization output for multi-axis systems, enhancing coordination in complex automation setups.

The MSE570 EVO 2 supports both full and half step drive modes and offers a TTL and CMOS compatible control interface for flexibility in integration with digital control systems. It also includes an output disable input and auxiliary 5V and 12V DC outputs for energising external devices.

Status LEDs on the device assist in condition monitoring, enabling easy diagnostics and troubleshooting in industrial environments. The controller provides provision for assembling an onboard oscillator with ramp, low, and high-speed ranges to tune motor performance precisely. A single rail power supply serves both the motor drive and logic circuits, simplifying power requirements.

This stepper motor controller is ideally suited for industrial manufacturing, robotics, laboratory automation, HVAC systems, and other commercial automation applications requiring precise motor drive control. It is compatible with motor stock numbers 432-8273, 440-442, 440-464, 440-470, 191-8328, 191-8362, 191-8378, 191-8384, 340-3711, 340-3727, and 340-3733.

McLennan Servo Supplies continue to offer reliable motor controllers supporting advanced automation with high quality and performance standards. Slimline bipolar stepper motor drive suitable for precise motor control applications.

Drives motors up to 40V at 3.5A with adjustable drive current settings from 0.5 to 3.5A. Includes output overload protection and synchronization output for multi-axis systems. Supports full and half step drive modes with TTL and CMOS compatible control interface.

Features output disable input and auxiliary 5 & 12 Vdc outputs for external device energisation. Status LEDs provide condition monitoring for easy diagnostics. Provisions for assembling onboard oscillator with ramp, low, and high-speed ranges.

Single rail power supply powers both motor drive and logic supplies efficiently. Explore more advanced Motor Controllers and automation products at EnvMart for industrial-grade quality and performance.
