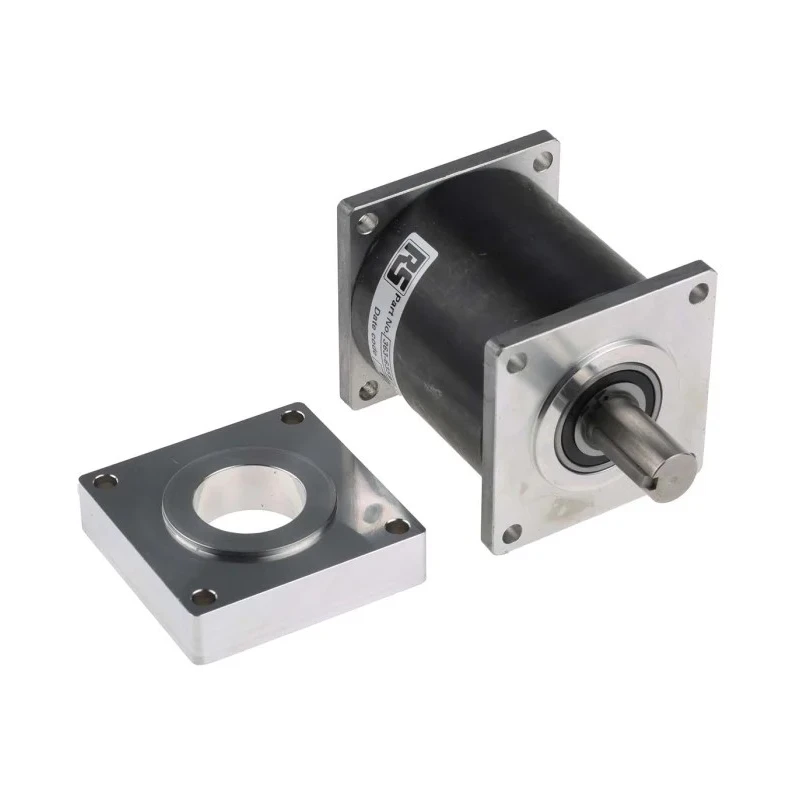

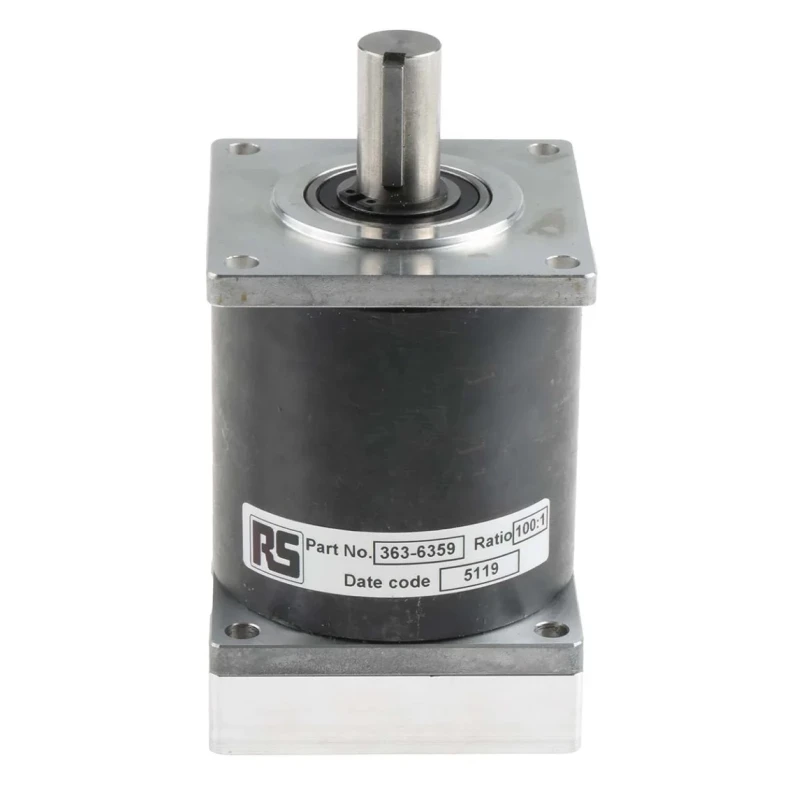

McLennan Servo Supplies Planetary Gearbox 100:1 Gear Ratio 24 Nm Maximum Torque IP57-M2-100

McLennan Servo Supplies IP57-M2-100 planetary gearbox offers a robust 100:1 gear ratio and maximum output torque of 24 Nm. Constructed with planetary gearhead technology, it features compact dimensions optimized for mounting with NEMA size 23 motors. This gearbox is designed for demanding industrial, automation, and scientific applications where precise velocity and positional control are critical.

The planetary design ensures high torque output with reduced backlash and increased accuracy, making it suitable for precision motion control in robotics, manufacturing, machine tools, and similar uses. The compact 57 mm diameter and overall dimensions of 79.75 mm length by 66.68 mm width and depth facilitate versatile integration into motor assemblies.

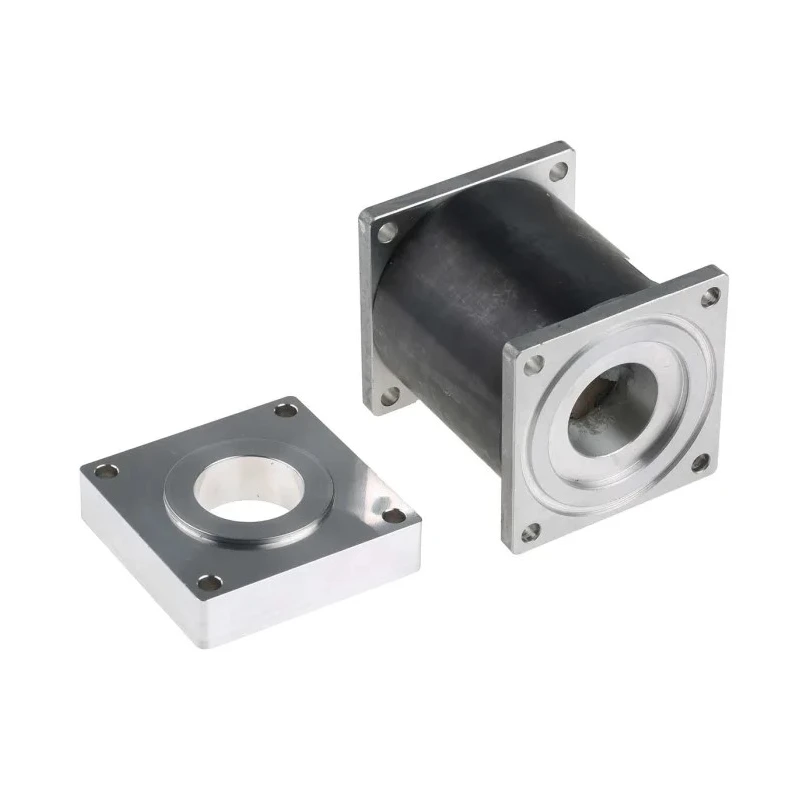

Fixing kits comprising fitting clamps, adaptors, and screws are used to securely attach the gearbox to a wide range of motors. Compatibility with 0.9° and 1.8° hybrid stepper motors allows for enhanced control resolution, stability, and faster stepping rates, beneficial in various automation processes.

Applications span robotics, paper feed mechanisms, teletype printers, small machine tools, computer peripherals, and X-Y plotters, demonstrating the versatility and precision benefits of this planetary gearbox.

Planetary construction for compact size and high torque. NEMA size 23 mounting compatibility. Reduced backlash for accurate velocity control. Supplied with dual pinions for stability. Included fixing kits for motor attachment.

Compatible with hybrid stepper motors, 0.9° and 1.8° step angle. Ideal for industrial and scientific automation applications. Explore more Gearboxes and automation gear solutions in the Electronics & Electricals category at EnvMart to find the best product matched to your technical needs.
