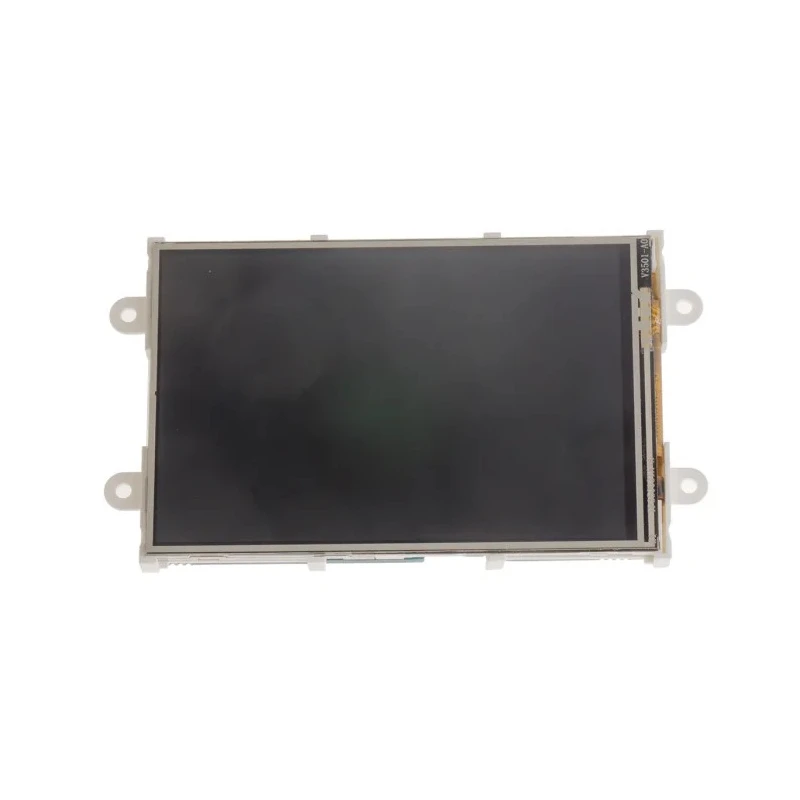

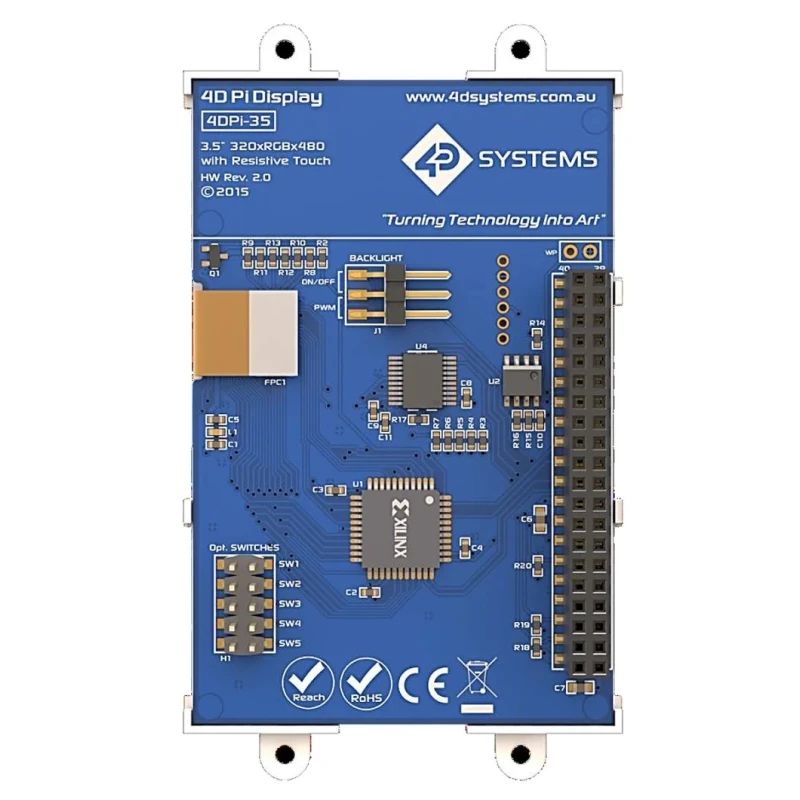

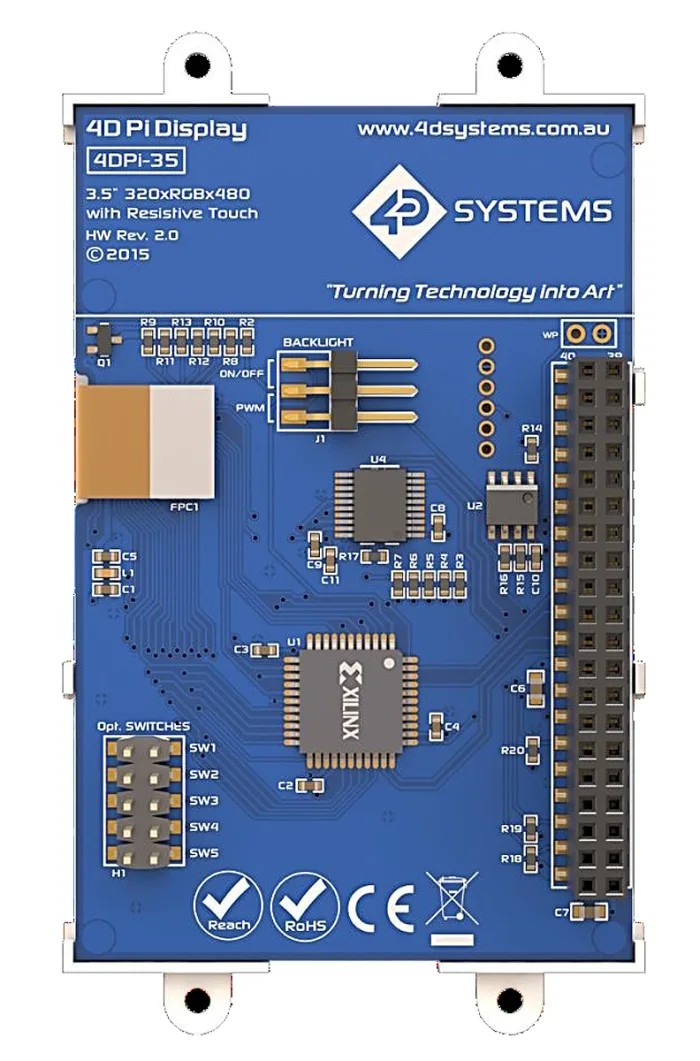

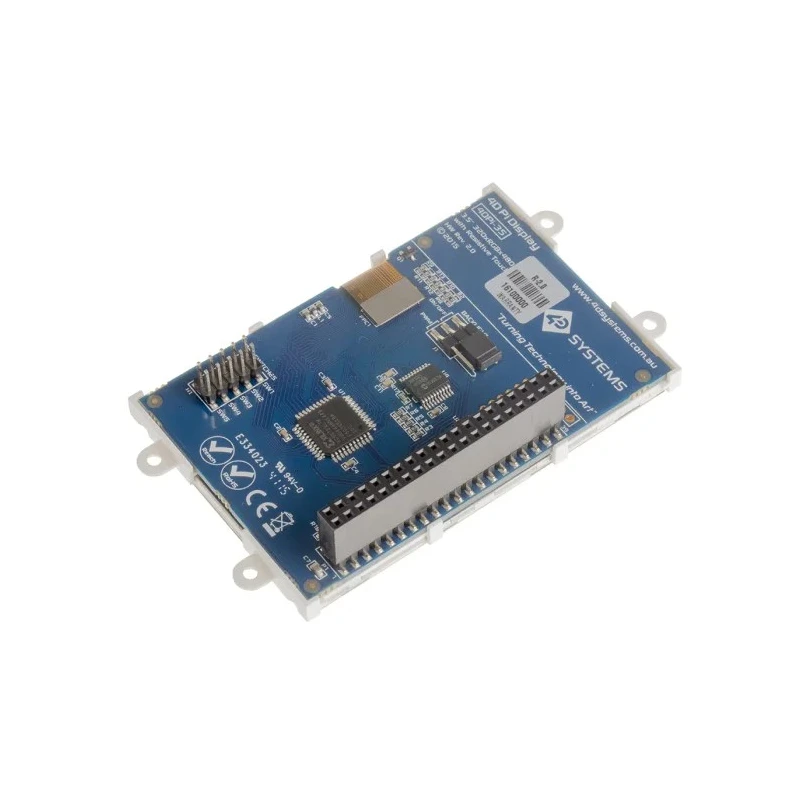

4D Systems Raspberry Pi 3.5 Inch Resistive Touch Screen Display 88.9 mm 4DPI-35-II
Specifications
| Country of Origin | Australia |
|---|---|
| Display | touch screen |
| Brand | 4D Systems |
| Model | 4DPI-35-II |
| Display Technology | Resistive Touch Screen |
| Standards/Approvals | RoHS |
| Kit Name | 4DPI-35 MK2 Primary |
| Diagonal Display Size | 88.9mm |
| RS PRO, PapiRus with 1.44in E-Ink DisplayBrand | RS PRO |
| 4D Systems, 4DPI-32 MK2 Primary with 3.2in Resistive Touch ScreenBrand | 4D Systems |
| Raspberry Pi LCD Touch Screen with 7 in Capacitive Touch ScreenBrand | Raspberry Pi |
Key Features
- Features a 3.5 inch 88.9 mm diagonal resistive touch screen for precise control.
- High speed 48MHz SPI connection with compression technology ensures fast and smooth display.
- Includes 4 wire resistive touch technology providing reliable touch response.
- Equipped with on/off or PWM controlled LED backlight for brightness adjustment.
- Mounting facilitated with 4 corner plates with 2.6 mm holes for easy wall or enclosure installation.
- Screen power is supplied directly from the Raspberry Pi, eliminating the need for external power supply.
- Typical frame rate of 17 FPS offers smooth visual performance.
- Compatible with Raspberry Pi models 3, 2, A+, and B+ for versatile use.
Product Description
4D Systems 4DPI-35-II is a primary resistive touch screen designed specifically for Raspberry Pi models including 3, 2, A+, and B+. This 3.5 inch screen features an 88.9 mm diagonal display size providing clear and responsive touch interaction.
The display utilizes a 4 wire resistive touch screen technology, giving precise control useful in industrial, educational, and development environments. It connects through a high speed 48 MHz SPI interface with advanced compression technology delivering efficient and high performance display updates at a typical frame rate of 17 frames per second.
Power for the screen is conveniently supplied from the Raspberry Pi board itself, so no additional power adapter is required. The LED backlight can be controlled via on/off switching or PWM for brightness adjustments to suit varied lighting conditions.
The screen assembly includes 4 corner mounting plates with 2.6 mm holes, enabling secure installation into walls or custom enclosures, making it suitable for embedded systems and industrial applications.
This display is RoHS compliant and manufactured in Australia, ensuring quality and environmental standards adherence. 3.5 inch 88.9 mm diagonal resistive touch screen for Raspberry Pi. High speed 48 MHz SPI interface connection with compression.
On/off or PWM controlled LED backlight. Mounting with 4 corner plates having 2.6 mm holes. Powered directly from Raspberry Pi; no external power supply needed. Typical frame rate of 17 FPS for smooth display. RoHS certified and Australian made product.
This screen is ideal for electronic development, STEM education, prototyping, and embedded industrial automation using Raspberry Pi platforms. Explore more Raspberry Pi compatible displays and accessories to build your electronic projects efficiently with precision and ease on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display size of this model is 88.9 mm, which is equivalent to 3.5 inches.
It utilizes a 4 wire resistive touch technology, providing reliable touch response.
The typical frame rate is 17 frames per second, offering smooth visual performance.
It connects via a high speed 48 MHz SPI interface, which includes advanced compression technology for efficient display updates.
This model is compatible with Raspberry Pi models 3, 2, A+, and B+.
Power for the screen is supplied directly from the Raspberry Pi, eliminating the need for an external power supply.
The LED backlight can be controlled through on/off switching or PWM for brightness adjustments.
Mounting is facilitated with 4 corner plates that have 2.6 mm holes, allowing for easy installation into walls or enclosures.
This display is RoHS compliant, ensuring adherence to environmental standards.
It is manufactured in Australia, ensuring quality and adherence to local standards.
This display is suitable for electronic development, STEM education, prototyping, and embedded industrial automation using Raspberry Pi platforms.
The display technology used is a resistive touch screen, which allows for precise control in various environments.
