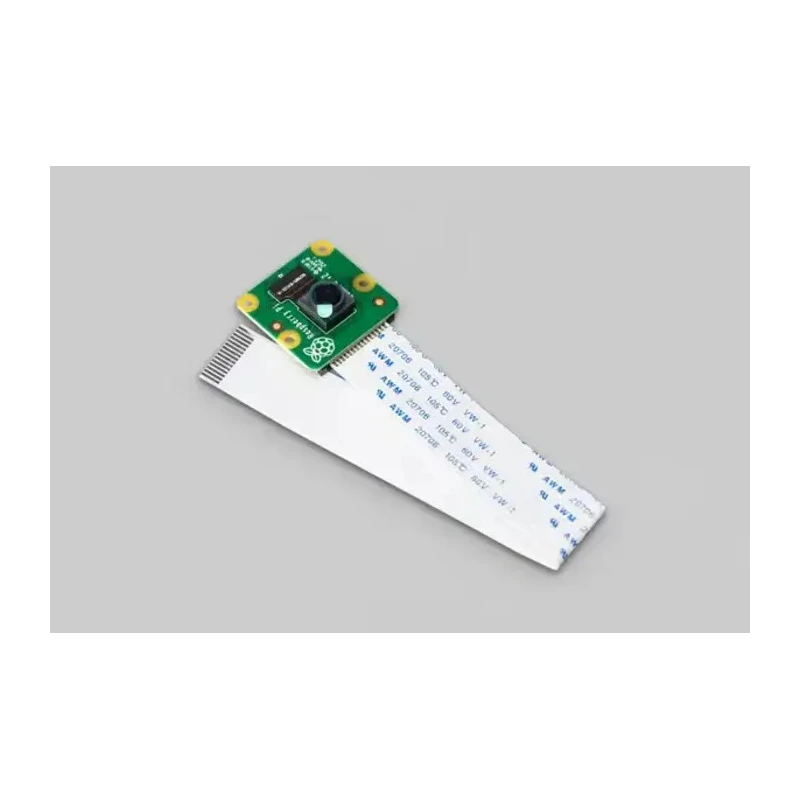

Raspberry Pi Camera Module 8 Megapixels CSI-2 Interface 30fps 23.86x25x9mm RASPBERRY PI CAMERA MODULE V2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Raspberry Pi |
| Height | 9mm |
| Length | 23.86mm |
| Model | RASPBERRY PI CAMERA MODULE V2 |
| Width | 25mm |
| Maximum Operating Temperature | 60°C |
| Sub Type | Camera Module |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 1 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Supported Bus Interfaces | CSI-2 |
| Standards/Approvals RoHS, BS EN 61340-5-1 | 2007, ANSI/ESD S20.20:2014 |
| Maximum frame rate | 30fps |
| Raspberry Pi, Camera Module, CSI-2 with 3280 x 2464 pixels ResolutionBrand | Raspberry Pi |
| Raspberry Pi, Video Module, I2C with 2592 x 1944 ResolutionBrand | Raspberry Pi |
Key Features
- The module utilizes a Sony IMX219PQ image sensor for high-speed and sensitive imaging.
- Supports still picture resolution of 3280 x 2464 pixels.
- Features automatic exposure control, white balance, and black level calibration.
- Operating temperature range from -20°C to 60°C for versatile application environments.
- Connects to Raspberry Pi via a 15-pin ribbon cable for easy installation and use.
- Supports 1080p, 720p60, and VGA90 video modes with high-quality imagery.
- Reduces image contamination such as fixed pattern noise and smearing for clear images.
- Suitable for applications in home security, wildlife watching, and general HD video capture.
Product Description
Raspberry Pi RASPBERRY PI CAMERA MODULE V2 is a high-definition camera module designed for Raspberry Pi and compute modules. Featuring an 8 megapixel Sony IMX219PQ image sensor, it supports a CSI-2 bus interface and captures video at up to 30 frames per second, delivering clear and sensitive imaging suitable for a range of applications.
This camera module offers a still picture resolution of 3280 x 2464 pixels and supports video modes including 1080p, 720p60, and VGA90. It employs automatic luminance detection at 50/60Hz, black level calibration, exposure control, and white balance adjustment for optimized image quality. The design minimizes image contamination like fixed pattern noise and smearing.
The module dimensions are 23.86mm in length, 25mm in width, and 9mm in height, and it operates reliably in temperatures ranging from -20°C to 60°C. Connectivity is facilitated via a 15-pin ribbon cable connecting straight into the Raspberry Pi Camera Serial Interface (CSI) port, enabling seamless integration.
Typical applications include home security systems, wildlife monitoring, and capturing high-definition videos and photographs in various industrial and educational environments. The camera complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards, ensuring quality and safety.
The module utilizes a Sony IMX219PQ image sensor for high-speed and sensitive imaging. Supports still picture resolution of 3280 x 2464 pixels. Features automatic exposure control, white balance, and black level calibration.
Operating temperature range from -20°C to 60°C for versatile application environments. Connects to Raspberry Pi via a 15-pin ribbon cable for easy installation and use. Supports 1080p, 720p60, and VGA90 video modes with high-quality imagery.
Reduces image contamination such as fixed pattern noise and smearing for clear images. Suitable for applications in home security, wildlife watching, and general HD video capture. Explore more Raspberry Pi Cameras and compatible modules on EnvMart for all your development and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum still picture resolution of this model is 3280 x 2464 pixels.
It supports video modes including 1080p, 720p60, and VGA90.
The maximum operating temperature for the Raspberry Pi Camera Module V2 is 60°C.
It connects via a 15-pin ribbon cable to the Raspberry Pi Camera Serial Interface (CSI) port.
It utilizes a Sony IMX219PQ image sensor for high-speed and sensitive imaging.
The maximum frame rate is 30 frames per second (fps).
It complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards.
The dimensions are 23.86mm in length, 25mm in width, and 9mm in height.
It features automatic exposure control, white balance, and black level calibration to optimize image quality.
It is suitable for applications in home security, wildlife monitoring, and general HD video capture.
This model supports 1 channel.
