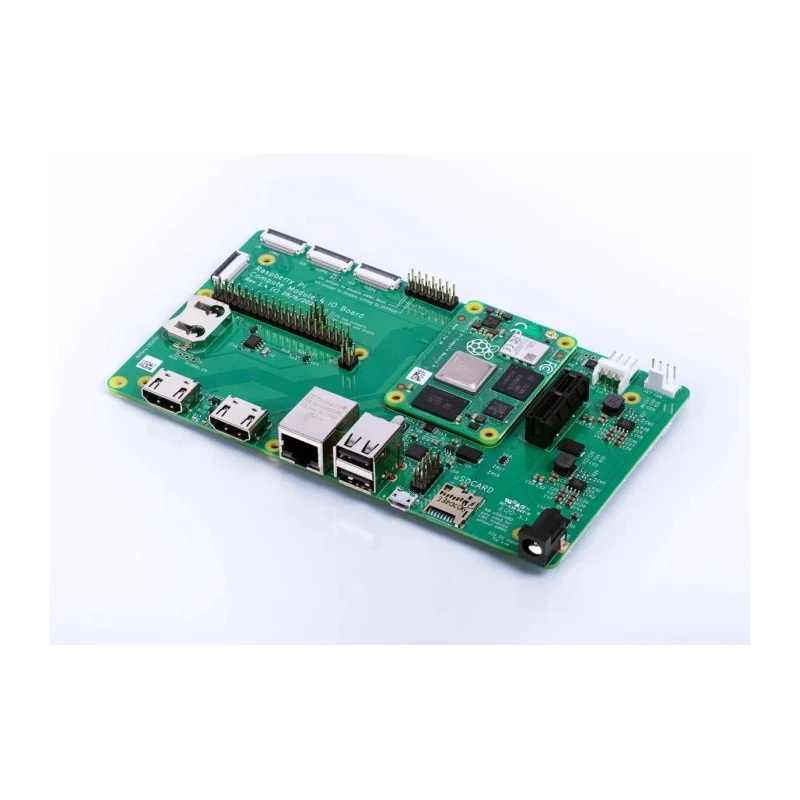

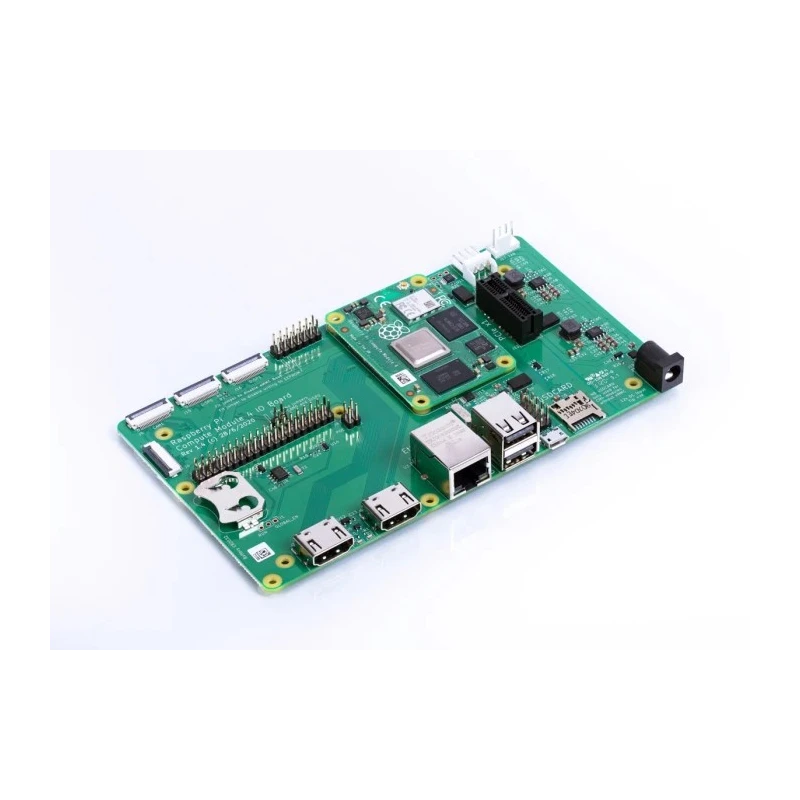

Raspberry Pi Compute Module 4 IO Board with PCIe Gen 2 x1 Socket and HDMI 2.0 Connectors SC0326

Raspberry Pi SC0326 Compute Module 4 IO Board is a versatile development module designed for the Raspberry Pi Compute Module 4 to extend its interface options and enhance project adaptability. This IO board features a PCIe Gen 2 x1 socket, supporting high-speed expansion cards and peripherals.

The board includes two full-size HDMI 2.0 connectors allowing dual display support with high-definition video output. It also houses two USB 2.0 connectors with headers for additional USB connectivity, alongside a Gigabit Ethernet RJ45 port that supports Power over Ethernet (PoE) for network and power delivery.

For storage and module management, it offers a Micro USB socket to update the Compute Module and a MicroSD card socket for Compute Module 4 Lite variants lacking onboard eMMC memory. The board supports various display and camera interfaces through two MIPI DSI display FPC connectors and two MIPI CSI-2 camera FPC connectors, each using a 22-pin 0.5 mm pitch cable.

Standard Raspberry Pi HAT connectors are included for accessory integration. Additionally, the IO board integrates a real-time clock with a battery socket, providing accurate timekeeping and wake-from-sleep capabilities. Standard fan connector support enables active cooling solutions for demanding applications.

Various jumpers allow customization by disabling features such as wireless connectivity or EEPROM writes, offering flexibility for embedded and industrial use cases. This development module is ideal for prototyping and embedded system designs requiring the full capability set of the Raspberry Pi Compute Module 4.

Compatible with Raspberry Pi Compute Module 4 enhancing expansion capabilities. Includes 2 full-size HDMI 2.0 connectors for high-resolution video output. Provides PCIe Gen 2 x1 socket enabling high-speed peripheral connectivity.

Features Gigabit Ethernet with PoE support for network power and connectivity. Supports Micro USB for module updates and MicroSD card socket for Lite variants. Equipped with dual MIPI DSI display and CSI-2 camera FPC connectors for display and camera interfaces.

Contains standard Raspberry Pi HAT connectors for accessory compatibility. Includes Real-time clock with battery socket for timekeeping and wake capabilities. Standard fan connector and jumpers for feature customization including disabling wireless features.

This Raspberry Pi development board is widely used in industrial automation, embedded computing, prototyping, and educational development projects requiring versatile connectivity and robust performance.
