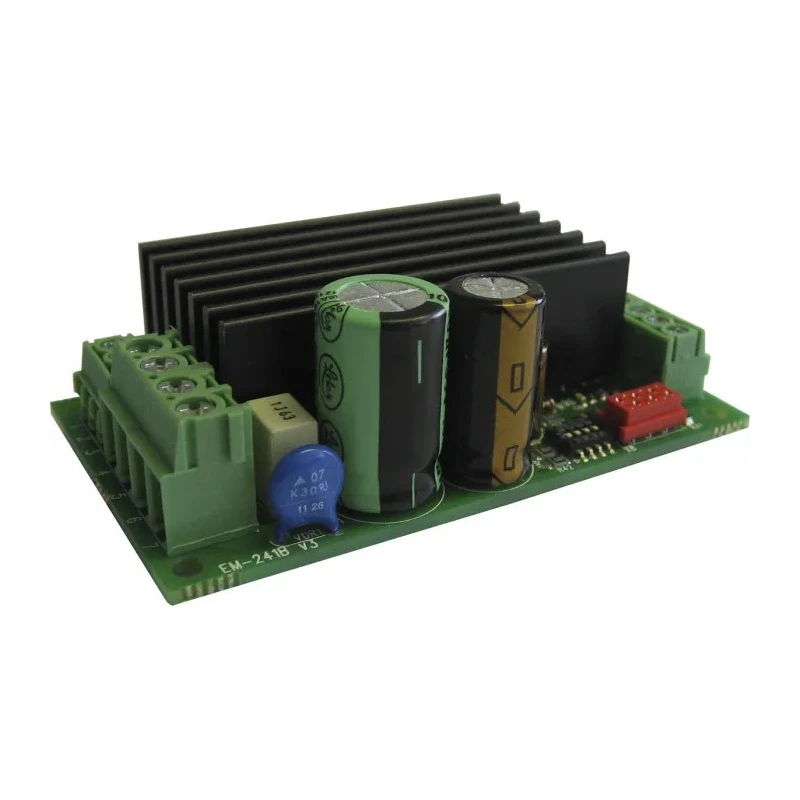

Electromen OY 12-24V DC, 15A PWM DC Motor Controller with Adjustable Current Limit EM-241C

Electromen OY EM-241C is a robust DC Motor Controller designed for industrial and automation applications requiring precise motor control from 10V DC to 35V DC with a continuous current rating of 15A. It provides Pulse Width Modulation (PWM) control, enabling smooth acceleration, deceleration, and current protection to optimize motor performance and longevity.

This full-bridge brushed DC-motor starter supports adjustable acceleration and deceleration ramps, enhancing operational smoothness and reducing wear on mechanical components. The current limit adjustment safeguards the motor from overcurrent, with a function that can act as an end-stop for current trip situations, ideal for automated positioning tasks.

The EM-241C features input controls for forward, reverse, and stop commands, inclusive of limit switch inputs to define end positions, and incorporates two settable speeds - useful for applications requiring variable motor speeds or positioning. Additionally, an analog speed control input (0-5V) allows fine speed modulation.

The C-version firmware of this controller introduces freewheel options that enable the motor rotor to release smoothly, as well as selectable PWM frequencies at 2kHz or 16kHz. The latter is an inaudible frequency though with a slightly reduced current handling capability, catering to noise sensitive environments.

The controller provides a fault output to indicate conditions such as current trip, over-current, or zero current, which enhances diagnostic capabilities in complex industrial systems. Control modes can be selected between continuous operation or impulse mode for momentary command execution, expanding the controller’s versatility.

Parameter programming can be performed conveniently using the EM-236 interface unit, EM-268 PC software EmenTool-Lite, or EM-326 smartphone application EmenTool-App, facilitating setup and maintenance onsite or remotely.

This compact and DIN rail mountable controller is compliant with EN - 55022B standards and is built for demanding industrial environments with operating temperatures ranging from -40°C to 60°C. Originating from Finland, the EM-241C offers reliable and flexible motor control solutions for manufacturing, automation, HVAC, robotics, and other industrial sectors.

Designed for smooth motor start and stop with adjustable acceleration and deceleration ramps. Features adjustable current limit to protect against overcurrent and enable end-stop current trip. Includes control inputs for forward, backward, stop, and limit switches for precise positioning.

Provides two settable speeds activated by dedicated inputs or analog 0-5V speed control. Compact and DIN rail mountable for easy installation. Offers freewheel options and selectable PWM frequency (2kHz or inaudible 16kHz) in C-version.

Equipped with fault output for monitoring current trip, over-current, and zero-current conditions. Multiple control modes including continuous and impulse for flexible operation. Supports digital parameter setting via EM-236 interface, EM-268 PC program, or EM-326 smartphone app.
