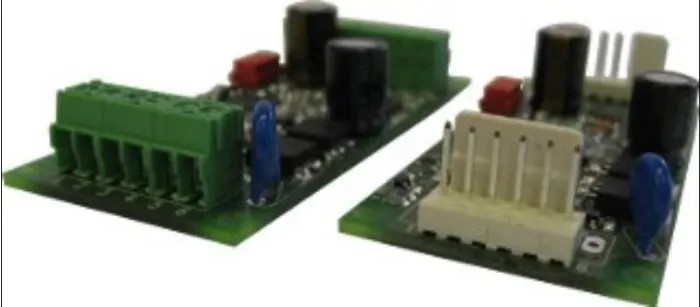

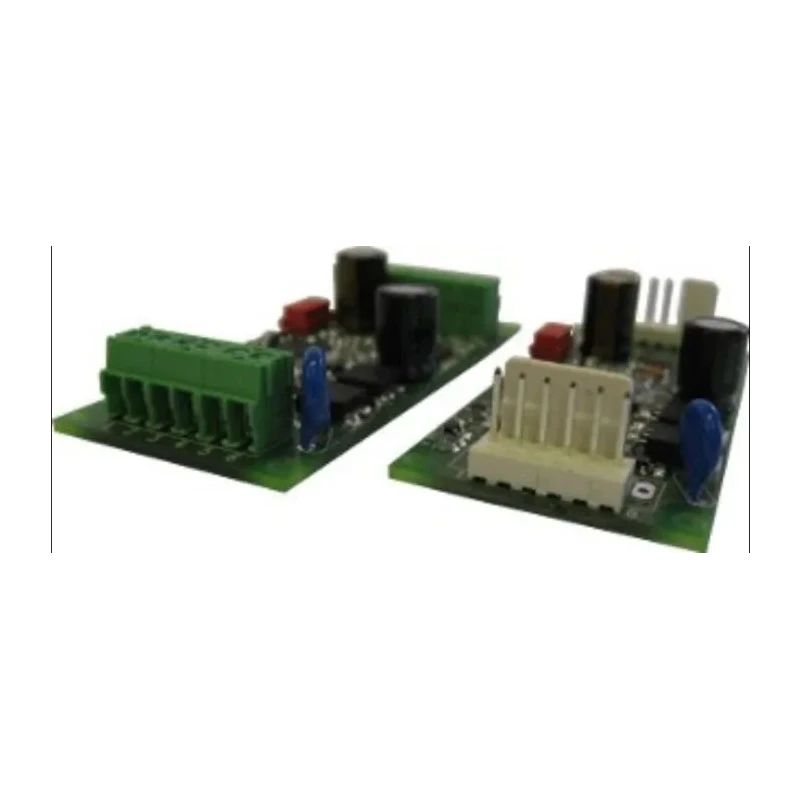

Electromen OY DC Motor Controller 10V to 35V 4A PWM Function EM-324-SAF

The Electromen OY EM-324-SAF is a high-efficiency DC motor controller designed for precise positioning and speed control of DC motors operating between 10V and 35V. It supports a continuous current rating of 4A, with momentary peaks up to 6A, delivering robust performance suitable for industrial, automation, and medical applications.

This controller utilizes PWM (Pulse Width Modulation) to regulate motor speed and position with up to 0.2% accuracy, which surpasses typical actuator positioning requirements. It supports analog control inputs either via voltage (0-11V) or current (0-20mA), and feedback can be received from similar analog signals or potentiometer inputs, enhanced by onboard auxiliary 5.5V outputs for potentiometer excitation.

Dynamic control features include load compensation, dead-zone setting (positioning window), adjustable start and stop ramps for smooth direction changes, as well as configurable braking zones for precise control. Movement limits are adjustable from both endpoints via switches allowing fine-tuning per application needs. The onboard LED signals fault states, and faults can be externally monitored via a combiport, which can also output position confirmation or retransmit current position as an analog voltage.

The device is compact and DIN rail mountable, with dimensions of 72mm length, 32mm width, and 25mm depth. It operates across a wide temperature range from -40°C to +60°C and complies with EN 55022B for electromagnetic compatibility, ensuring suitability even in sensitive environments such as medical setups.

Parameter setting options include the EM-236 interface unit, EM-268 PC program, and EM-326 smartphone application, offering convenient configuration and diagnostics tools. Operates at 12-24V DC with 4A continuous and 6A peak currents.

Supports multiple input types for set value and feedback including voltage, current, and potentiometer. Offers high positioning accuracy and flexible dynamic control parameters. Compact size with DIN rail mounting for easy installation.

Low RF emissions suited for critical electromagnetic environments. Includes LED fault indicators and options for external fault and position monitoring. Wide operating temperature range and compliance with relevant electromagnetic standards.

Configurable via dedicated interface units and software applications.

This Electromen OY DC Motor Controller is ideal for precision motor-driven applications in industrial automation, robotics, HVAC systems, medical instruments, and manufacturing equipment. Browse EnvMart's extensive selection of Motor Controllers for diverse operational requirements.
