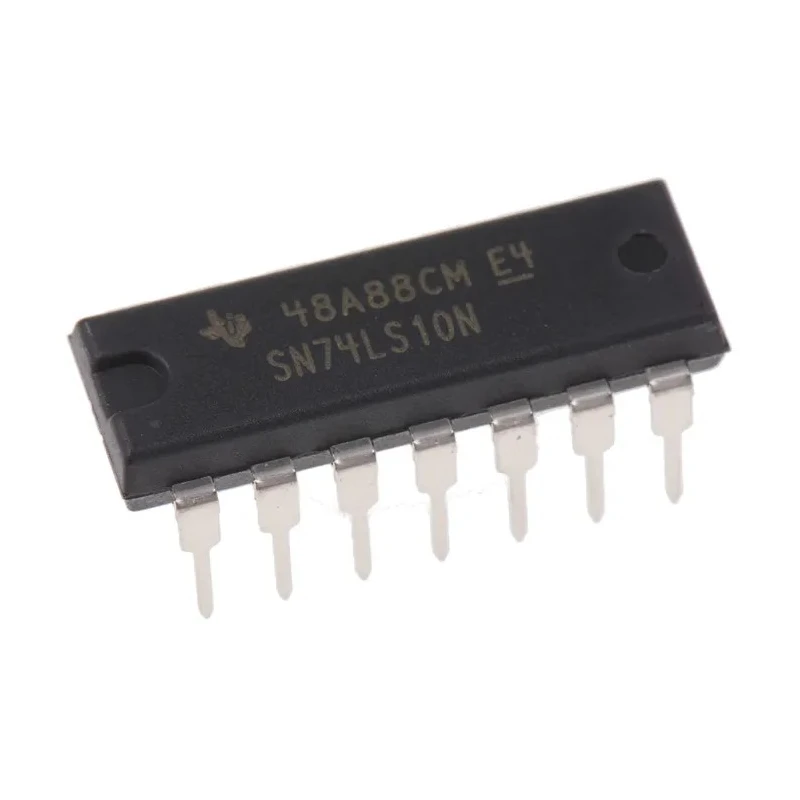

Texas Instruments 3 3-Input NAND Logic Gate, 14-Pin PDIP SN74LS10N

Texas Instruments SN74LS10N is a 3 3-Input NAND Logic Gate IC in a 14-Pin Plastic Dual In-line Package (PDIP). It belongs to the 74LS family of low power Schottky TTL logic ICs, designed for efficient power usage and high-speed operation.

This IC contains three independent NAND gates, each gate having three inputs, making it versatile for implementing complex digital logic functions in industrial, commercial, and laboratory electronic equipment.

Operating voltage ranges from 4.75V minimum to 5.25V maximum, with a maximum propagation delay time of 5ns at typical load capacitance, ensuring quick responses in digital circuits.

The SN74LS10N device uses bipolar transistor technology combined with Schottky diode clamps, providing improved switching speeds compared to traditional 74 series logic families while consuming lower power.

The through-hole 14-pin PDIP format provides mechanical robustness and ease of mounting on printed circuit boards, suitable for prototyping and industrial assembly lines.

This product operates reliably within the temperature range of 0 to 70 degrees Celsius, making it suitable for standard industrial operating conditions. It does not include Schmitt trigger inputs and is not designed for automotive standard applications.

Its maximum high-level output current of -0.4mA and maximum low-level output current of 8mA make it suitable for driving intermediate loads in complex logic designs. This logic gate provides three NAND gates, each with 3 inputs, for complex digital logic functions.

Operates within a supply voltage range of 4.75V to 5.25V ensuring reliable performance. Designed using the 74LS family low power Schottky TTL technology for lower power consumption and faster switching. The package is a through-hole 14-pin PDIP format suitable for traditional PCB mounting.

Offers a maximum propagation delay time of 5 nanoseconds ensuring fast signal processing. Operating temperature range from 0°C to 70°C supports standard industrial environments. The logic family is LS with bipolar junction transistor technology and Schottky diode clamps for improved speed.

Maximum output currents are -0.4mA high level and 8mA low level suitable for driving intermediate loads. This product does not include Schmitt trigger inputs and is not automotive grade compliant.

This device is ideal for integration in electronic design applications including digital computing, electronics instrumentation, industrial control systems, and embedded systems requiring NAND logic functionality.
